14.2 Rotation of gas inlets
The gas inlets on the SLE1000 can be rotated through 90°. The SLE1000 is
supplied with the inlets in the horizontal position. The user can rotate the inlets
through 90° by releasing the swivel lock.
14.3 Water trap and particulate filter
Each SLE1000 unit is fitted with a water trap and particulate filter in the air side of
the pneumatic system. The water trap is auto-draining. The particulate filter will
remove particles of more than 5 micrometer (Microns) in size.
14.3.1 Setup
Prior to first use of the SLE1000 the outlet
of this water trap needs to be connected
to a drain hose and water collection cup
(Not supplied). The hose should have an
internal diameter of 4mm and be pliable
enough to fit over the hose tail bard on the
outlet of the water trap.
The other end of the hose should feed any
collected water into an open topped
collection container that can be easily
emptied.
14.3.2 Maintenace
Please refer to the SLE1000 service manual for maintenance instructions and
replacement filter instructions.

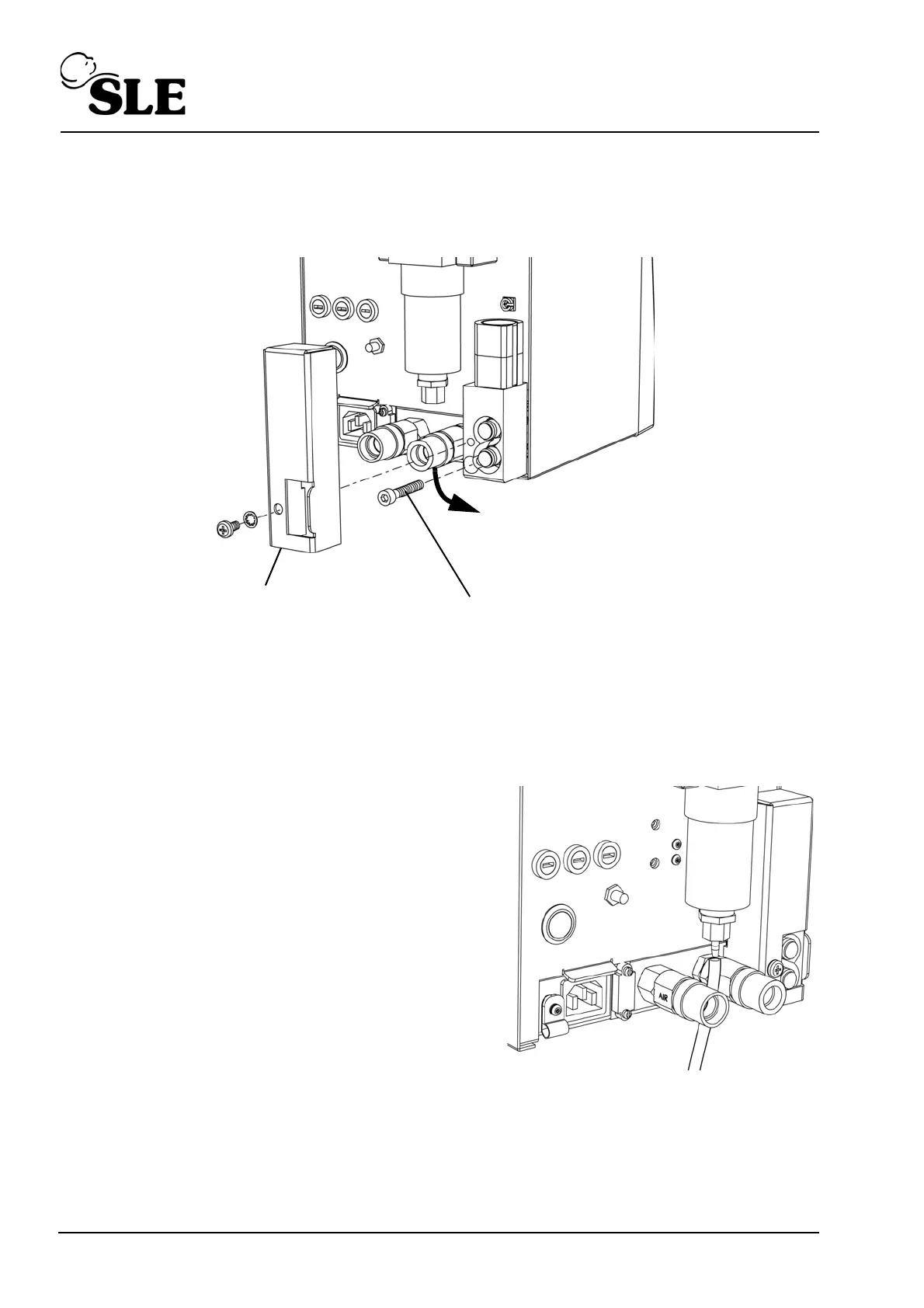

Remove the locking screw to
release the air and oxygen inlets
Rotate inlets 90°
Remove the oxygen cell
cover plate
