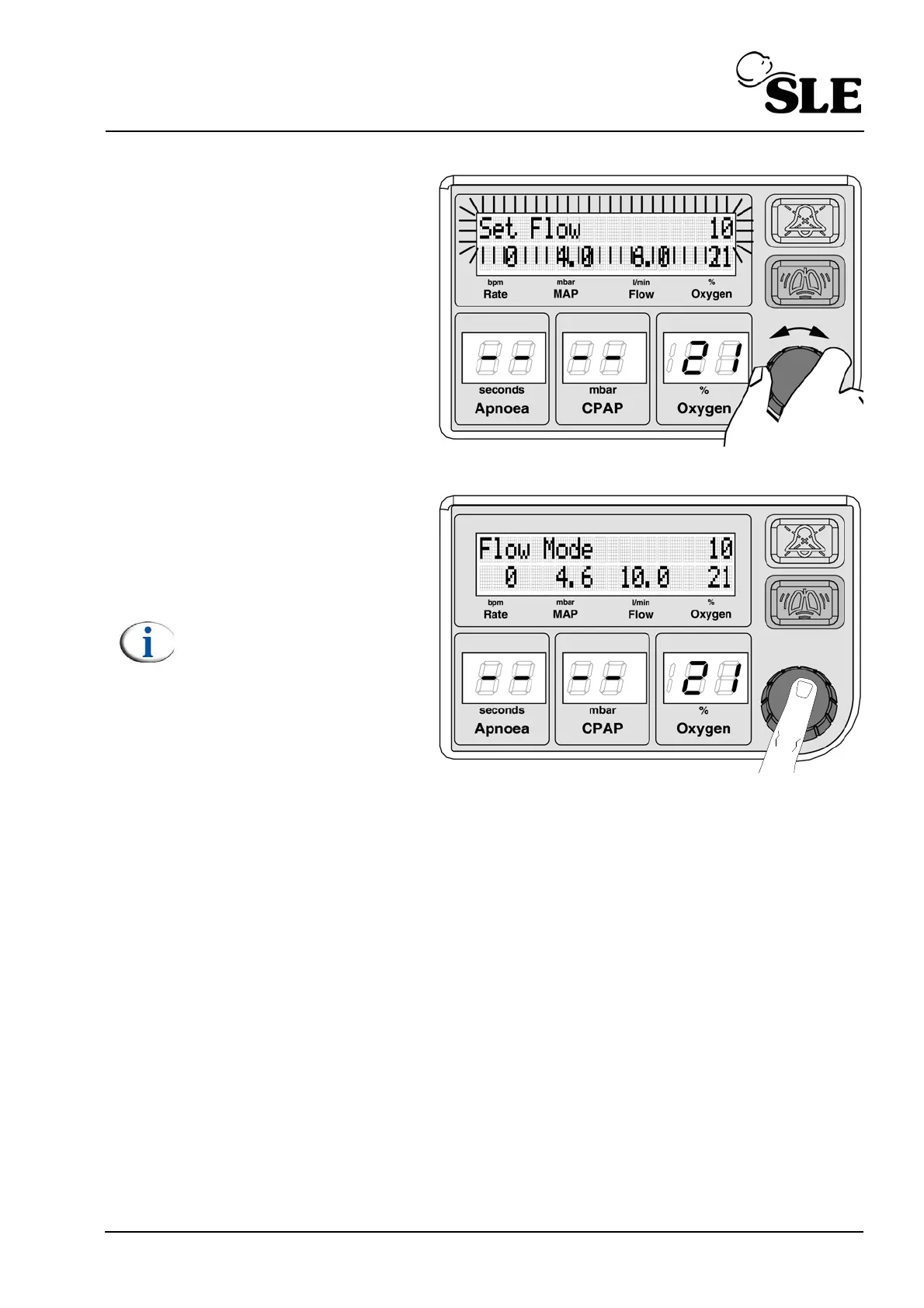

Rotate the knob to select

the required flow.

As the flow value is changed

the text will flash.

Confirm the setting.

The unit will enter flow

mode.

Note: Please see the

“CPAP and Flow mode”

chapter for a detailed

description on page 55.
