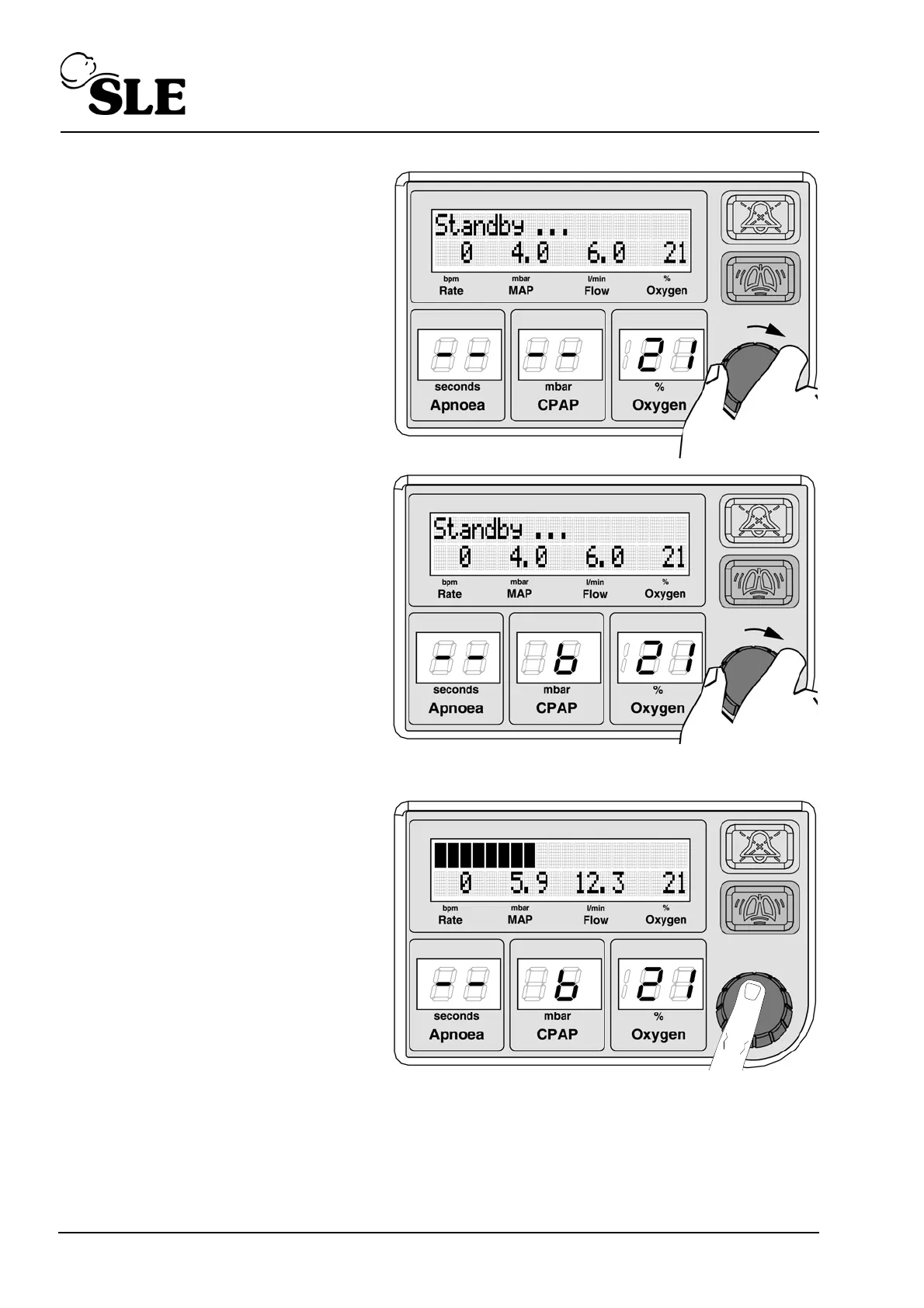

Rotate the knob to the right,

Continue past the “--”

Continuing to rotate the

knob to set the required

CPAP. The text adjust

parameter will be displayed.

Push the knob to confirm

the setting.

The SLE1000 will now

adjust the pressure.

The message display now

changes to the airway

pressure bargraph.
