SMART MX Series Installation And Maintenance Guide

Chapter 3
Connecting computers and other devices
smarttech.com/kb/171555 50
No. Connector Connects to Notes
1 HDMI 2.0 out External display
See Connecting an external display on page43 and
HDMI cables and connectors.
2 USB 2.0 Type-A [N/A] This connector is a service port.
3 USB 3.0 Type-A Supported USB drives, peripherals,
and other devices
See page42 and USB cables and connectors.
4 USB 3.0 Type-B HDMI 1 input (touch) See page35 and USB cables and connectors.
5 HDMI 2.0 in HDMI 1 input (videoandaudio) See page35 and HDMI cables and connectors.
6 USB 3.0 Type-B HDMI 2 input (touch) See page35 and USB cables and connectors.
7 HDMI 2.0 in HDMI 2 input (videoandaudio) See page35 and HDMI cables and connectors.
8 RJ45 (×2) Network See page28 and Ethernet (network) cables and
connectors.
9 S/PDIF out Digital audio output See page44 and Digital audio cables and
connectors.
10 Stereo 3.5 mm out External audio system See page44 and Analog audio cables and
connectors.
11 Stereo 3.5 mm in VGA input (audio) See page35 and Analog audio cables and
connectors.
12 VGA in VGA input (video) See page35 and VGA cables and connectors.
13 USB 3.0 Type-B VGA input (touch) See page35 and USB cables and connectors.

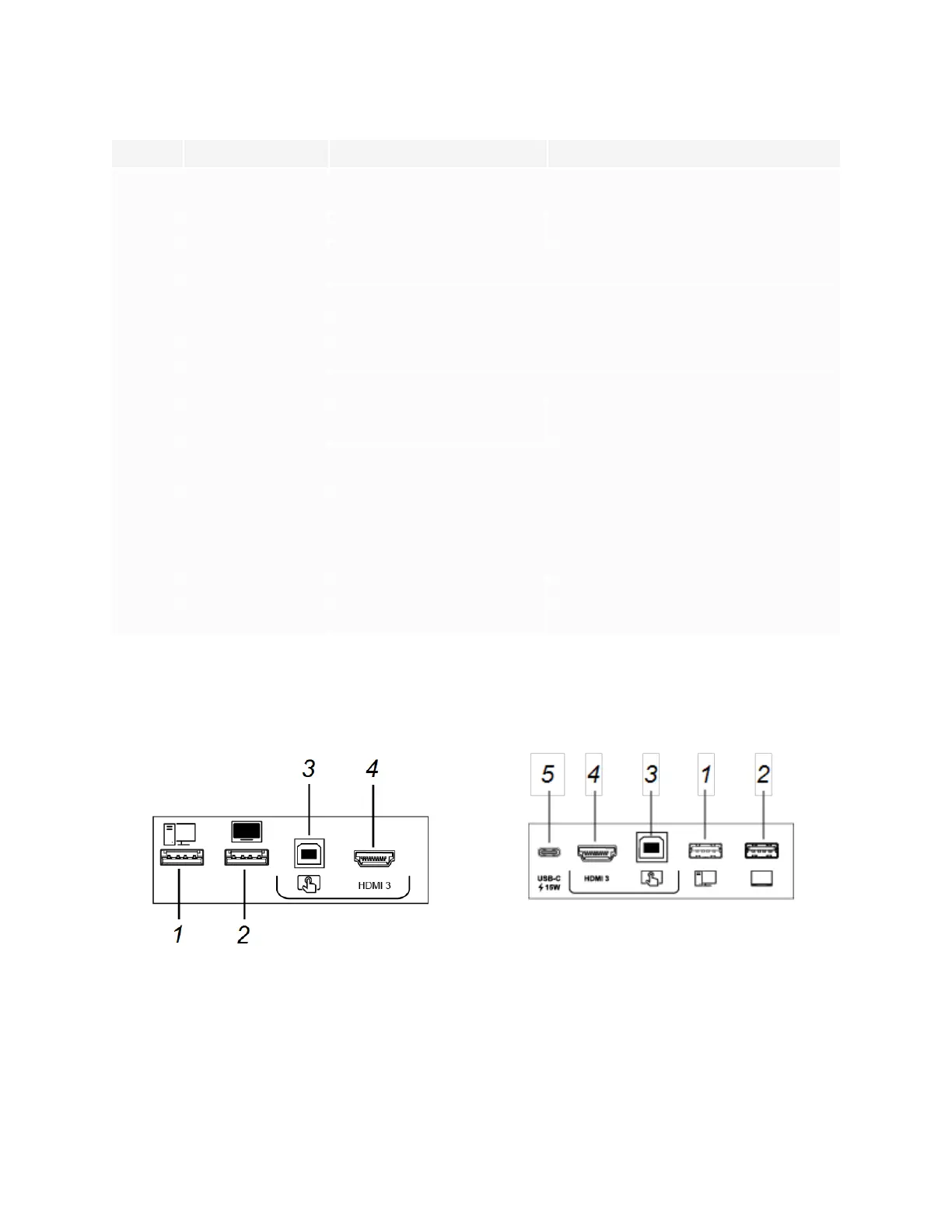

Front connector panel
The following diagram and table present the connectors on the display’s front connector panel:
SMART Board MX (V2) series SMARTBoard MX (V2-C) series

SMART MX Series Specifications

General

Aspect Ratio	16:9
RAM	4 GB
Internal Storage	32 GB
Refresh Rate	60 Hz
Response Time	8 ms
Brightness	350 cd/m²
Contrast Ratio	4000:1
Dimensions (W x H x D)	Varies by screen size
Weight	Varies by screen size
Screen Sizes	65", 75", 86"
Operating System	Android
Connectivity	HDMI, USB, Wi-Fi, Bluetooth
Audio	Built-in speakers
Touch Points	20
Viewing Angle	178°
VESA Mount	Yes
Display Type	LED-backlit LCD
