SMART MX Series - SMART Board MX series; Connector panel

Chapter 3
Connecting computers and other devices
smarttech.com/kb/171555 51
No. Connector Connects to Notes
1 USB 2.0 Type-A Supported USB drives,
peripherals, and other devices
See page42 and USB cables and
connectors.
2 USB 2.0 Type-A
connector
Supported USB drives Connect a USBdrive to update the
display’s firmware.
3 USB 2.0 Type-B
connector
HDMI 3 input (touch)
See page35 and USB cables and
connectors.
4 HDMI 3 input connector HDMI 3 input
(videoandaudio)
See page35 and Analog audio
cables and connectors.
5 USB Type-C input
source connector
USB Type-C input See page35 and USB cables and
connectors.
SMARTBoard MX series
Connector panel

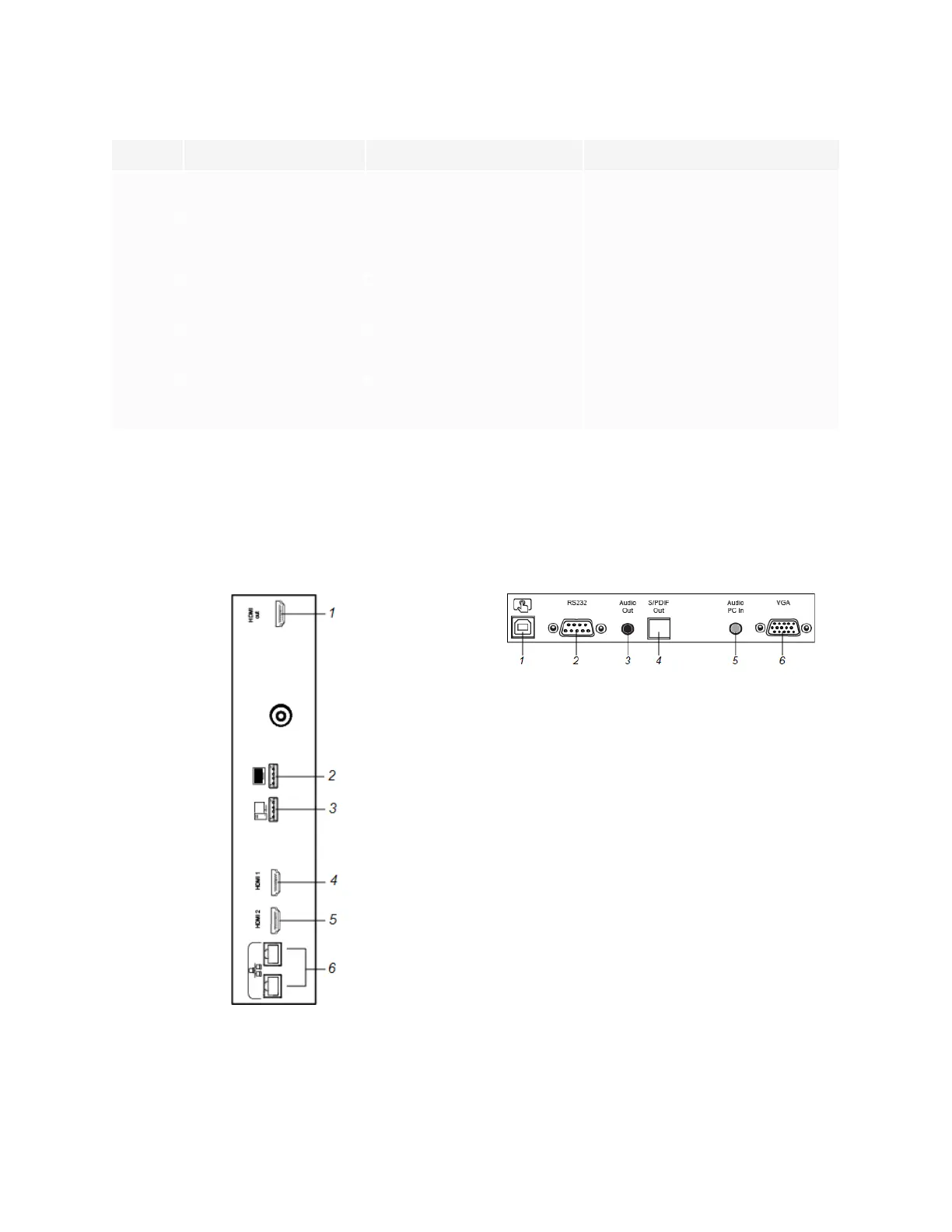

The following diagram and table present the connectors on the display’s connector panel:
Side Bottom
