4.2 CONTROLLER PANEL

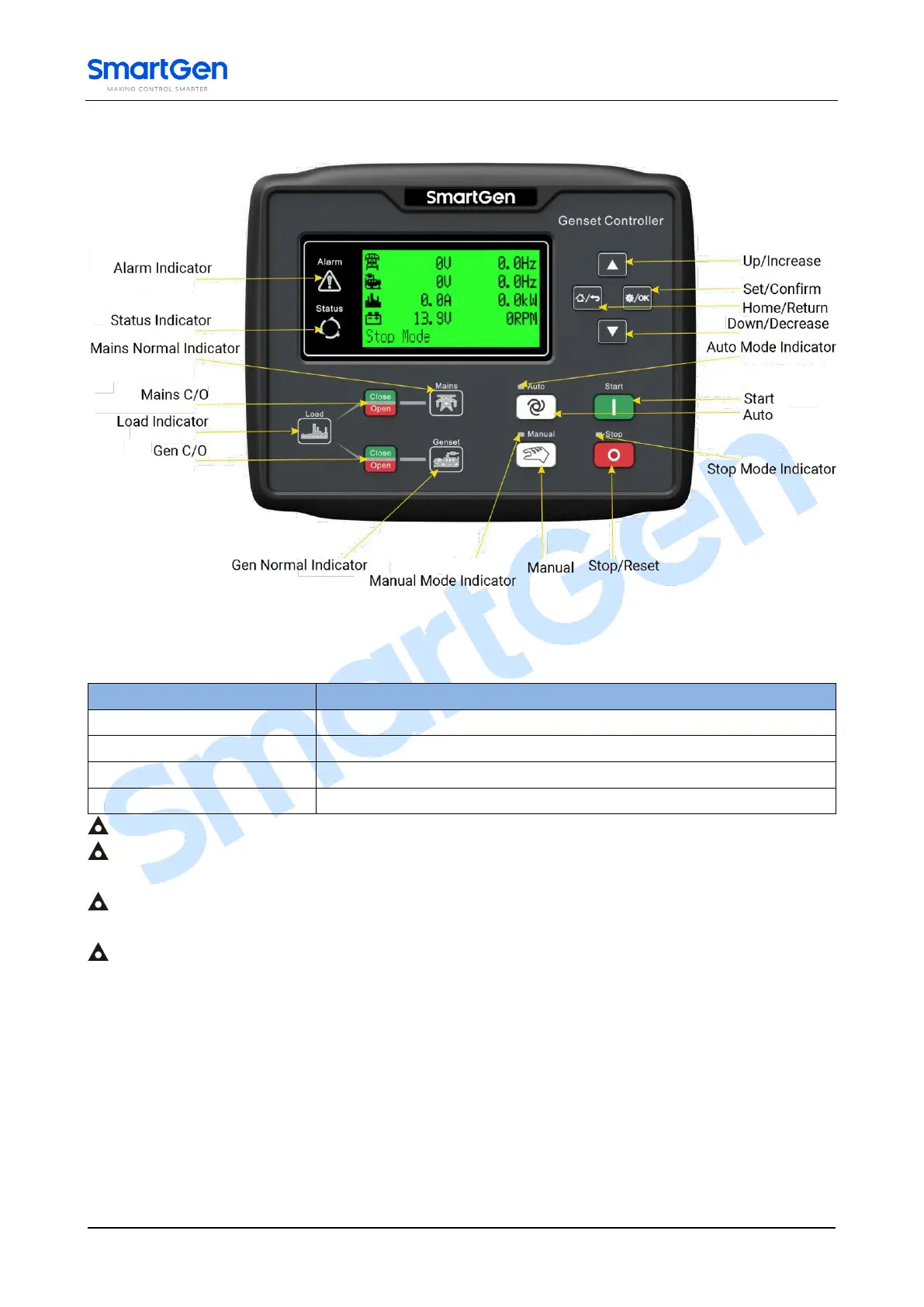

Fig.1 – HGMS62D Front Panel Indication
Table 5 – Alarm Indicators
Alarm Type
Alarm Indicator
Warning
Slow flashing (1 time per second)
Trip
Slow flashing (1 time per second)
Shutdown
Fast flashing (5 times per second)
Trip and Stop
Fast flashing (5 times per second)
NOTE1: Status indicator: always illuminates before ETS and after crank success, distinguishes during other periods.
NOTE2: Gen normal indicator: always illuminates in normal running, flashes in abnormal running; distinguishes in no
generator.
NOTE3: Mains normal indicator: always illuminates in normal running, flashes in abnormal running; distinguishes in
no mains.
NOTE4: When mains is disabled, mains normal indicator distinguishes, mains close/open key is inactive at the same
time.
