HGMS62 Split Type Genset Controller User Manual Page 50 of 58
13 INSTALLATION
13.1 FIXING CLIPS
The HGMS62D display module is panel mounting and installed by fixing clips.
Withdraw the fixing clip screw (turn anticlockwise) until it reaches proper position.
Pull the fixing clip backwards (towards the back of the module) ensuring four clips are inside their
allotted slots.
Turn the fixing clip screws clockwise until they make contact with the panel.
NOTE: 0.27N·m (2.75kgf·cm) torque is recommended to tighten the fixing clips.
13.2 OVERALL DIMENSION AND PANEL CUTOUT
Unit: mm

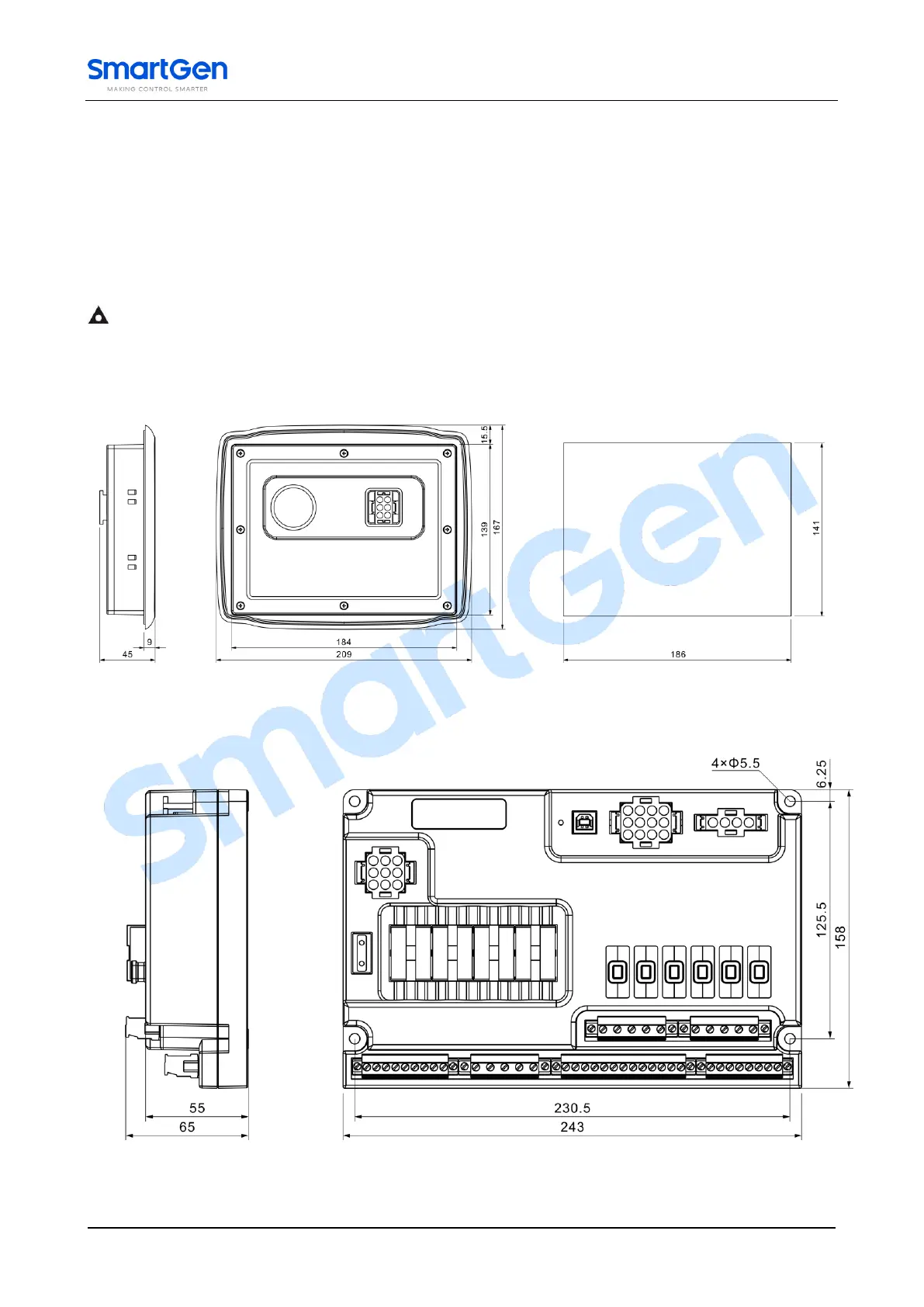

Fig. 9 HGMS62D Case and Overall Dimensions
Unit: mm
Fig.10 HGMS62M Case and Overall Dimensions
HGMS62 controller can be applicable to (8~35) VDC battery voltage. Battery negative must be
