HGMS62 Split Type Genset Controller User Manual Page 20 of 58
7 CONNECTIONS
7.1 HGMS62M CONTROLLER PANEL

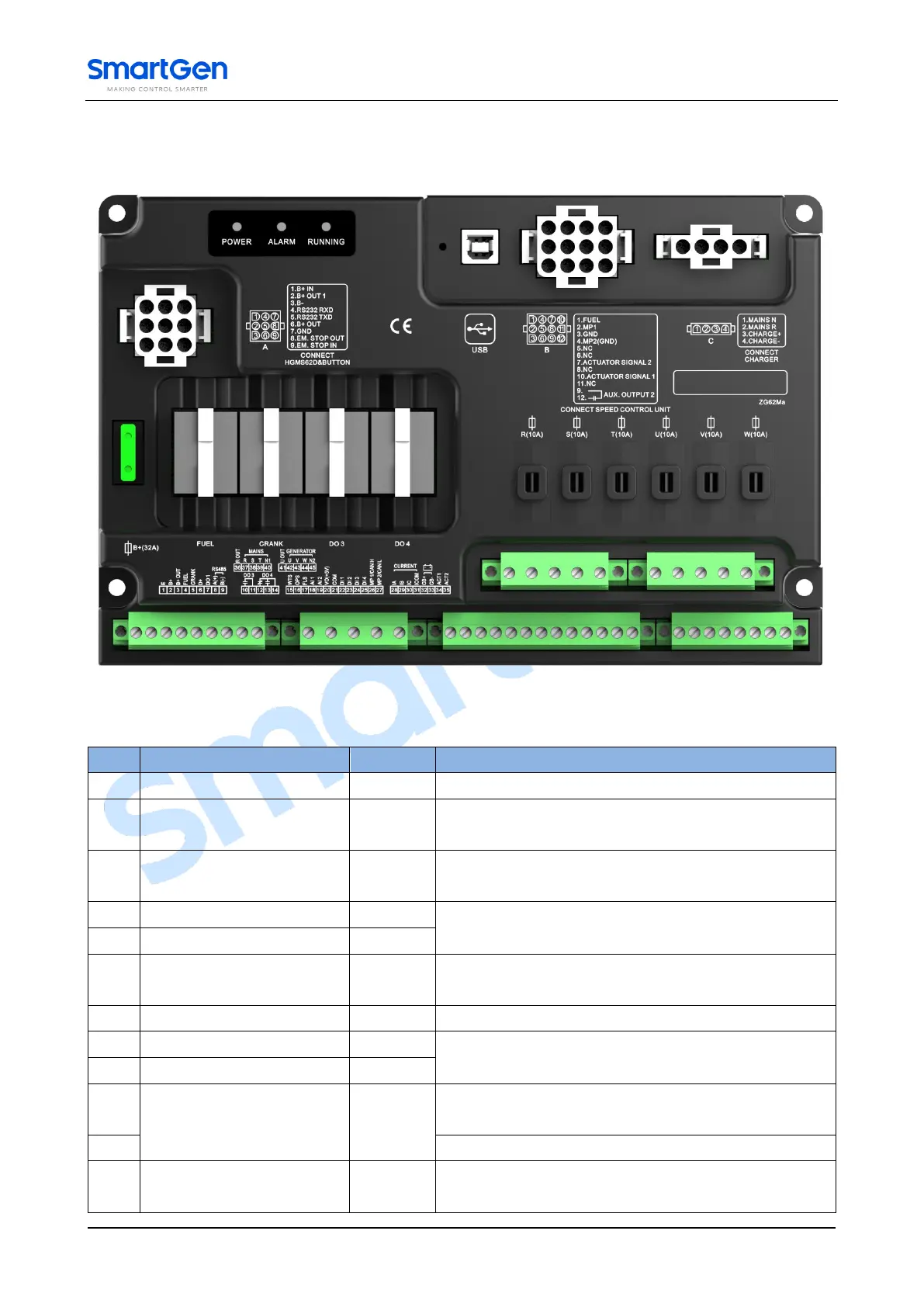

Fig.2 – HGMS62M Controller Panel Drawing
Table 10 – HGMS62M Terminal Connection Description
No.
Function
Size
Remarks
1
B-
2.5mm
2
Connect starting battery negative.
2
B+
2.5mm
2
Connect starting battery positive, 32A fuse is used
inside controller.
3
B+ OUT
2.5mm
2
Main terminal 2 (DC B+) is connected to this terminal
after passing the fuse.
4
Fuel Relay
1.5mm
2
B+ is supplied by 2 points, rated 10A.
Relay specification: DC 24V (pluggable).
5
Crank Relay
1.5mm
2
6
Charger D+
1.0mm
2
Connect charger D+ (WL) terminal, if charger has no
this terminal, then it will be hung.
7
Aux. Relay Output 1
1.5mm
2
B+ is supplied by 2 points, rated 7A.
8
RS485(A+)
0.5mm
2
120Ω shielding line recommended to use, its single
end should be grounded.
9
RS485(B-)
0.5mm
2
10
Aux. Relay Output 3
1.5mm
2
Relay 250V AC volts free (N/O) output (pluggable),
rated 10A.
11
Relay common point.
12
Aux. Relay Output 4
1.5mm
2
Relay 250V AC volts free (N/C) output (pluggable),
rated 10A.
