The P13 is a new energy vehicle detector designed and developed by Shenzhen Smartsafe Tech Co., Ltd., integrating a comprehensive suite of functions for vehicle diagnostics, battery analysis, immobilizer matching, ADAS calibration, and various reset procedures. This device is designed to be used in conjunction with other inspecting tools and detectors from Smartsafe Company, offering versatility across different vehicle service scenarios. It also serves as a platform for monitoring the usage and diagnostic status of all diagnostic devices within a vehicle service factory.

Function Description:

The P13 offers a wide range of diagnostic and maintenance functions:

Vehicle Diagnose: Primarily used for diagnosing vehicle electronic control systems. Users can employ "AutoDetect" for quick identification of vehicle information and system entry, or manually select the vehicle model and system for inspection. The system displays fault codes with red indicators and normal systems with green. It allows for viewing specific fault information, saving inspection reports (Pre-Repair, Post-Repair, Diagnostic Scan), comparing pre- and post-repair reports, viewing fault code analysis, and clearing fault codes.

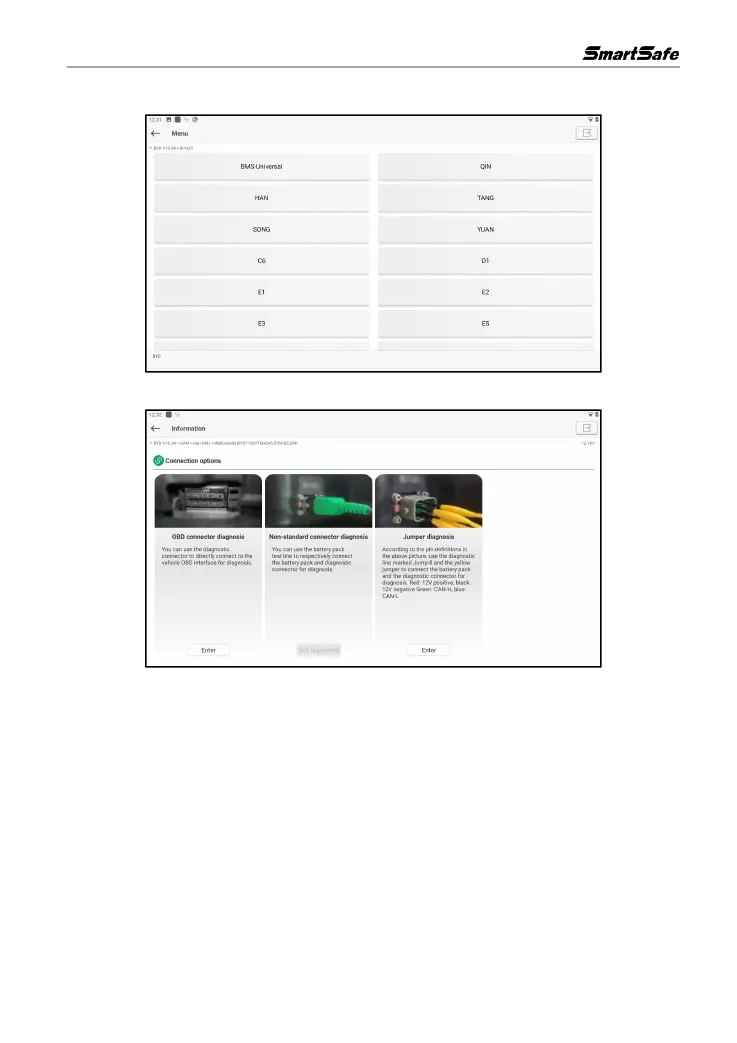

Battery Diagnose: This module performs in-depth system diagnostics of the vehicle battery pack, helping users quickly identify abnormal conditions and points of failure. It requires protective equipment such as insulation gloves, shoes, and goggles due to the risk of electric shock. The device reads and displays detailed battery pack data, allowing users to determine abnormal statuses.
IMMO Matching: Enables anti-theft key matching, allowing the immobilizer control system to identify and authorize remote control keys. This is necessary when replacing the ignition switch key, ignition switch, combined instrument panel, ECU, BCM, or remote control battery.
ADAS Calibration: Calibrates driver assistance systems, including front-facing cameras for lane departure warning systems and radar sensors for Adaptive Cruise Control (ACC). Activation requires an activation card supplied with the ADAS calibration tool. The function supports both topological graph and list displays for ADAS systems, allowing users to scan, view fault codes, and perform diagnostic functions. It guides users in placing the calibration tool and manipulating ADAS calibration. After calibration, a full vehicle scan can be performed to confirm that fault codes have cleared.
Reset Functions: A quick entry for commonly used special functions, including:
- 48V MHEV Test: For offline testing of 48V light hybrid parts.
- Compressor Test: For testing after replacement and maintenance of vehicle compressors.
- DCDC Test: For offline testing of DC conversion converters in new energy automobiles.
- OBC Test: For offline testing of vehicle-mounted chargers.
- Oil Reset Service: Resets the service lamp and turns off the tire pressure MIL.
- A/F Reset: Sets or learns Air/Fuel ratio parameters.
- Electronic Parking Brake Reset: Resets the brake pad after replacement (e.g., when brake pad wear sensor is replaced, brake pad indicator lamp is on, brake pad sensor circuit is short, or servo motor is replaced).
- Steering Angle Calibration: Resets the steering angle after replacing steering angle position sensor, steering gearbox, or steering column end tie rod.
- Battery Maintenance System Reset: Resets the monitoring unit of the vehicle battery, clearing low battery fault information and performing battery matching (e.g., when the main battery or battery monitoring sensor is replaced).
- Throttle Learning: Makes initial settings to throttle actuators and returns learned values to default state (e.g., after ECU replacement, power-off, throttle assembly replacement, inlet replacement/disassembly, or throttle cleaning).
- Tire Pressure Monitor System Reset: Looks up tire sensor IDs, resets tire pressure, and turns off the tire pressure MIL (e.g., when tire pressure is low, tire leaks, monitoring device is replaced, tire is replaced, or sensor is damaged).
- Diesel Particulate Filter (DPF) Regeneration: Clears PM from the DPF filter to stabilize performance (e.g., after sensor replacement, PM trap removal, fuel additive nozzle replacement, catalytic oxidizer replacement, or DPF regeneration MIL is on).
- Transport Mode: Deactivates transport mode to restore vehicle functions (e.g., after limiting vehicle speed, disabling door opening network, or remote control key).
- Tire Reset: Sets size parameters for modified or replaced tires.
- Windows Calibration: Performs door window matching to recover ECU initial memory and automatic ascending/descending functions.
- AdBlue Reset: Required after diesel exhaust treatment fluid (car urea) is replaced or filled up.
- NOx Sensor Reset: Resets catalytic converter learned value stored in the engine ECU (e.g., if NOx fault is re-initialized or catalytic converter is replaced).
- Injector Coding: Writes injector actual code or rewrites code in the ECU to control or correct cylinder injection quantity (e.g., after ECU or injector replacement).
- Stop/Start Reset: Opens or closes the automatic start-stop function via hidden ECU settings.
- Sunroof Initialization: Sets sunroof lock off, closed when it rains, sliding/tilting memory function, and temperature threshold.
- Suspension Calibration: Adjusts body height (e.g., after replacing body height sensor or control module, or if vehicle height is incorrect).
- Language Change: Changes the system language of the vehicle central control panel.
- Intelligent Cruise Control System Diagnosis: For matching after the intelligent cruise control module is replaced or repaired.
- AC System Relearn/Initialization: Performed when the vehicle AC ECU or actuator is replaced or ECU memory is lost.
- Seats Calibration: Matches seats with memory function that are replaced and repaired.
- AFS (Adaptive Front-lighting System) Reset: Initializes the adaptive headlamp system, adjusting lighting angle based on environmental light intensity, speed, and body posture.
- EGR Learning: For learning after EGR valve cleaning or replacement.
- ABS Exhaust: Exhausts the brake system to restore sensitivity (e.g., when ABS system contains air or components are replaced).
- Airbag Reset: Resets airbag data and clears airbag fault indicator light (e.g., after collision, airbag indicator light is on, or components are replaced).
- Meter Tuning: Copies, writes, or rewrites kilometers in the meter.
- ECU Reset: Performs control unit reset function after partial system coding.
- FRM Match: Resets the FRM control unit (BMW and MINI models), clearing faults related to short circuits.
- Clutch Match: Performs gearbox self-learning for clutch pedal position or switch learning.
- Gateway Module Data Calibration: For VIN inconsistency after replacing the gateway control unit.
- Turbocharging Match: Learns after boost system parts replacement or resets turbocharger learning values.
- Rain and Light Sensor: Adjusts wiper frequency and automatic headlight intensity based on ambient light.
Remote Diagnose: Allows remote technicians to assist users in diagnostic operations. Users can request remote help by selecting car models, inputting serial number, license plate, or phone number.
Super Remote: Helps remote technicians diagnose vehicles using Smartsafe, original factory, or other third-party diagnostic devices. The SmartLink Remote Diagnostics System allows service subscribers (SLC) to submit remote repair orders to service providers.

Important Technical Specifications:

ST13 Main Unit:

Operating System: AAOS (Android 10)
CPU: Eight-core computer processor, 2.0GHz
Memory: 8GB
Storage: 256GB
Display Screen: 13.3-inch touch screen with a resolution of 1920*1080 pixels
Camera: 8MP front camera, 13MP rear camera (with flash)
Wi-Fi: 2.4GHz/5GHz dual band dual Wi-Fi
Communication: Wi-Fi, Bluetooth, USB
Battery: 3.8V/13,600mAh
Operating Temperature: 0°C-45°C
Storage Temperature: -20°C-70°C
Dimension: 355x227x34 mm

SLC (SmartLink Connector):

Operating Voltage: DC 9V-36V
Communication Type: Bluetooth, Wi-Fi wireless communication, USB wire communication, LAN/WAN communication
Stable Internal Operation: -10°C-50°C
Dimension: 192x107x42 mm

Usage Features:

Charging: Use the supplied power adapter. The power indicator is red during charging and green when fully charged. If the device has not been used for a long time or the battery is exhausted, it may take time to turn on.
Power On/Off: Long press the power button for 3 seconds to turn on. Press and hold for 1-2 seconds to access "Power off/ Restart/Screenshot" menu.
Gesture Operation: Includes switching desktops, going back to previous levels, returning to desktop, and viewing recent apps list. Supports split-screen operation.
Network Settings: Connects to external networks via Wi-Fi. It is recommended to turn off Wi-Fi when not in use to save power.
Account Registration: Register a new account via Personal Center, requiring email verification.
Connector Activation: Activate the inspecting connector by entering the product serial number and activation code from the password envelope.
Main Interface: Contains system application function menus, with left and right screens flippable for more applications.
Communication Methods: Supports Wi-Fi, USB wired, and Bluetooth communication between the tablet and VCI connector. Wi-Fi or USB wired communication is recommended for more stable data transmission.
Data Stream Display: Displays real-time running data and parameters of the vehicle ECU. Users can select data stream options, switch units (English/Metric), and values outside the standard range are displayed in red.
Reports: Views and manages saved vehicle diagnostic reports and inspection records. Reports can be filtered by categorization, VIN, and time interval. Multiple reports for the same vehicle can be combined into a comprehensive report.
Feedback: Allows users to provide feedback on diagnostic problems or software vulnerabilities, including the last 20 test records.
Super Remote Operations: Register and post remote diagnostics orders, select user type, and enter required information.
SLC Setting: Allows checking system version, setting language, firmware repair, WLAN connection, system update, and UBOOT upgrade.
SLC Other Application: Can be used as a local J2534 PassThru device with OEM diagnostic software for J2534 reprogramming.
Personal Center: Manages personal information and repair shop information, and binds VCI connectors.
System Apps: Includes Camera, Gallery, Calculator, Calendar, Email, ES File Explorer, and Browser.

Maintenance Features:

Software Store & Service Upgrade: Purchase more vehicle software and renew subscriptions via the MALL interface.
Software Upgrade: Under the "Software Upgrade" tab, select and update software. Ensure network connection is stable during upgrades.
Software Management: View downloaded software versions, installation package sizes, and updates.
Download Settings: Turn on/off automatic downloads on Wi-Fi.
USB Management: Set the USB switch status. When diagnosing wirelessly via Wi-Fi, the USB switch status needs to be kept ON.
Resetting the P13 Tablet: Perform a factory reset via Settings -> System -> Reset options -> Erase all data. Warning: This will result in data loss, so back up important data beforehand.

Safety Precautions:

Always perform vehicle diagnostics in a safe environment.
Never operate the device while driving.
Ensure the handbrake is pulled, front wheels are blocked, and gearshift is in neutral (manual) or P (automatic) before starting the engine.
Operate in a well-ventilated area due to toxic exhaust gases.
Use extreme caution around ignition coils, distributor caps, circuits, and plugs due to high voltage.
Ensure the vehicle battery is fully charged and the diagnostic seat is clean.
Avoid direct contact with corrosive accumulator liquid (vitriol) and keep fire away.
Keep clothes, hair, hands, tools, and testers away from running or hot engine parts.
Use only the supplied charger.
Keep the device dry, clean, and away from gasoline, water, and grease. Clean with a mild detergent.
All internal services must be performed by an authorized service facility or technician; unauthorized disassembly voids the warranty.
When operating battery pack tests, wear protective equipment (insulation gloves, shoes, goggles) to prevent electric shock.
When driving the vehicle for troubleshooting, have someone else assist to avoid traffic accidents.
Reading fault codes is only a step in diagnosis; follow vehicle service manual procedures to identify malfunctions.
When repairing or replacing high-voltage wiring harnesses, oil pipes, and other parts, ensure proper protection with body sheet metal to prevent wear and tear.
