B. Non-standard Connector Diagnosis
Use the battery pack specialized connector to connect the VCI and the battery pack low voltage
signal communication interface respectively to diagnose the battery pack of the vehicle.
C. Jumper Diagnosis

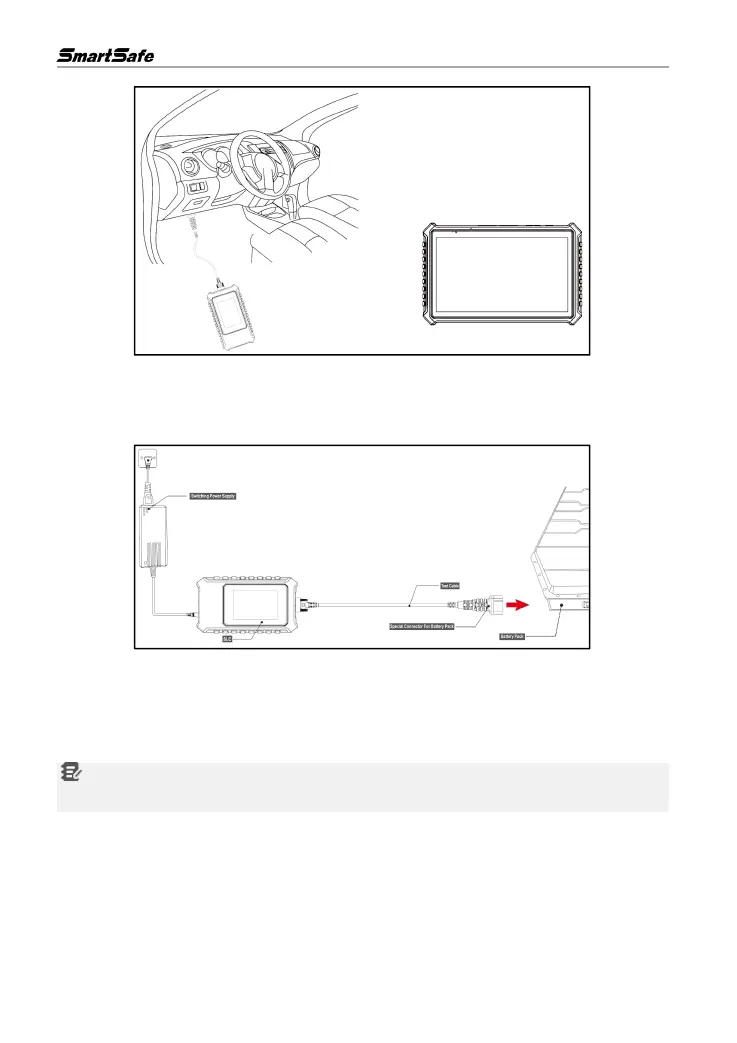

According to the wiring diagram prompted by the software, the jump-8 jumper is used to connect
the VCI and the low-voltage signal communication interface of the battery pack respectively to
detect the battery pack of the vehicle.
Notes: Pictures here are for example only. Different models have different connection methods,
please follow the wiring diagram prompted by the software.
