Chapter 5 Display and Setting of Various Functions
5.22 Communication Function HRSH Series
5-80

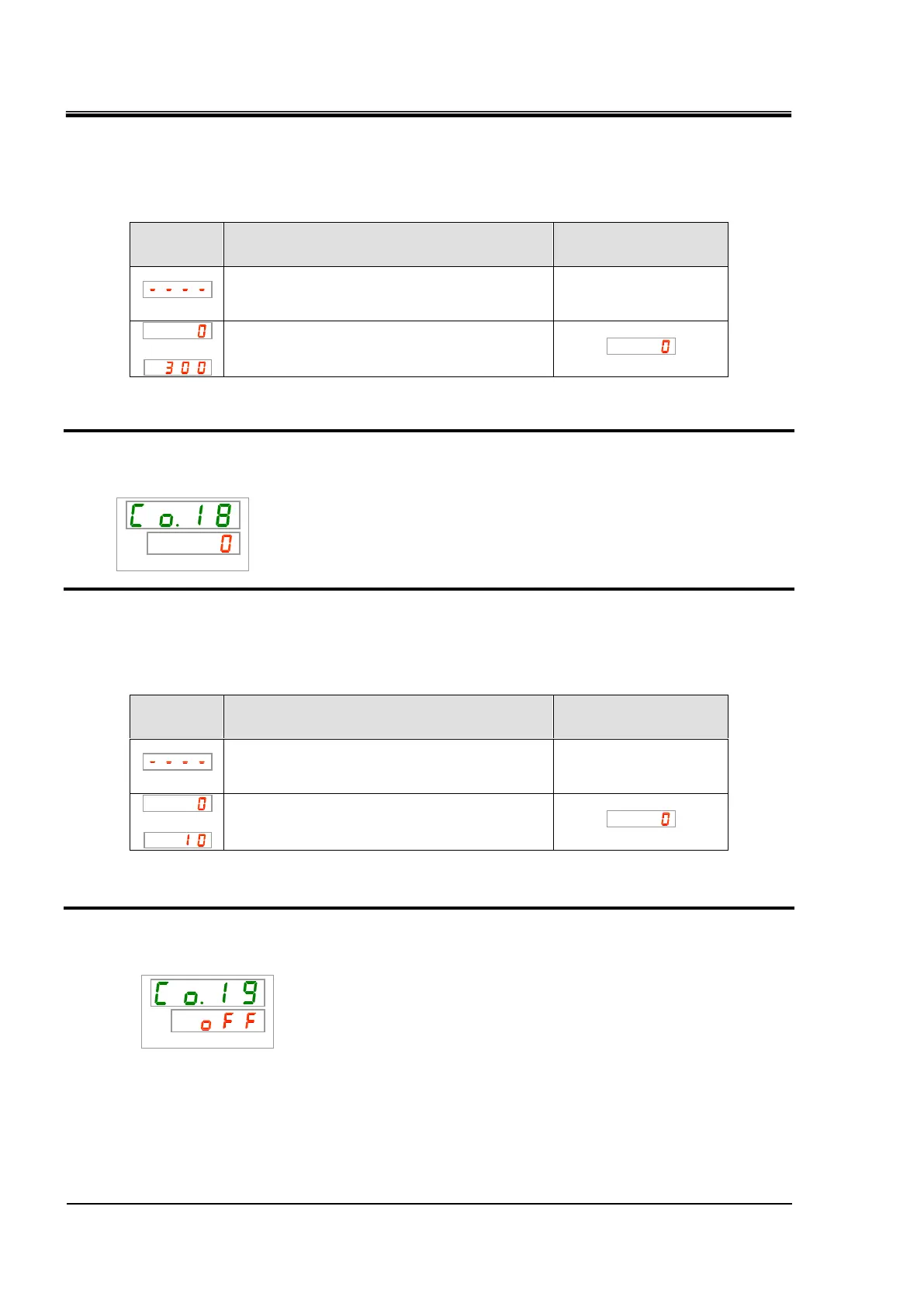

34. Set time delay for the contact input signal 1 delay timer for reading with [▲] key or [▼]
key, and press [SEL] key to enter.
Table 5.22-18 Setting of time delay for contact input signal delay timer for reading
Set value
Explanation
Default
Setting/checking is possible only when the
contact input signal 1 is set to external switch
signal input (N.O. type or N.C. type).
to
Setting of the contact input signal 1 delay
timer of reading
Setting range: 0 to 300 seconds
Setting/Checking: Contact input signal 1 OFF detection timer
35. Press the [SEL] key once.
Setting screen of contact input signal 1 OFF detection timer is displayed on the digital display.
36. Set threshold time for the contact input signal 1 OFF detection timer with [▲] key or [▼]
key, and press [SEL] key to enter.
Table 5.22-19 Threshold time setting for contact input signal 1 OFF detection timer
Set value
Explanation
Default
Setting/checking is possible only when the
contact input signal 1 is set to external switch
signal input (N.O. type or N.C. type).
to
Setting of the contact input signal 1 OFF detection
timer
Setting range: 0 to 10 seconds
Setting/Checking: Contact input signal 2
37. Press the [SEL] key once.
Setting screen of contact input signal 2 is displayed on the digital display.
PV
SV
PV
SV
