HRX-OM-Q026
Chapter 5 Display and Setting of Various Functions
HRSH Series 5.22 Communication Function
5-81

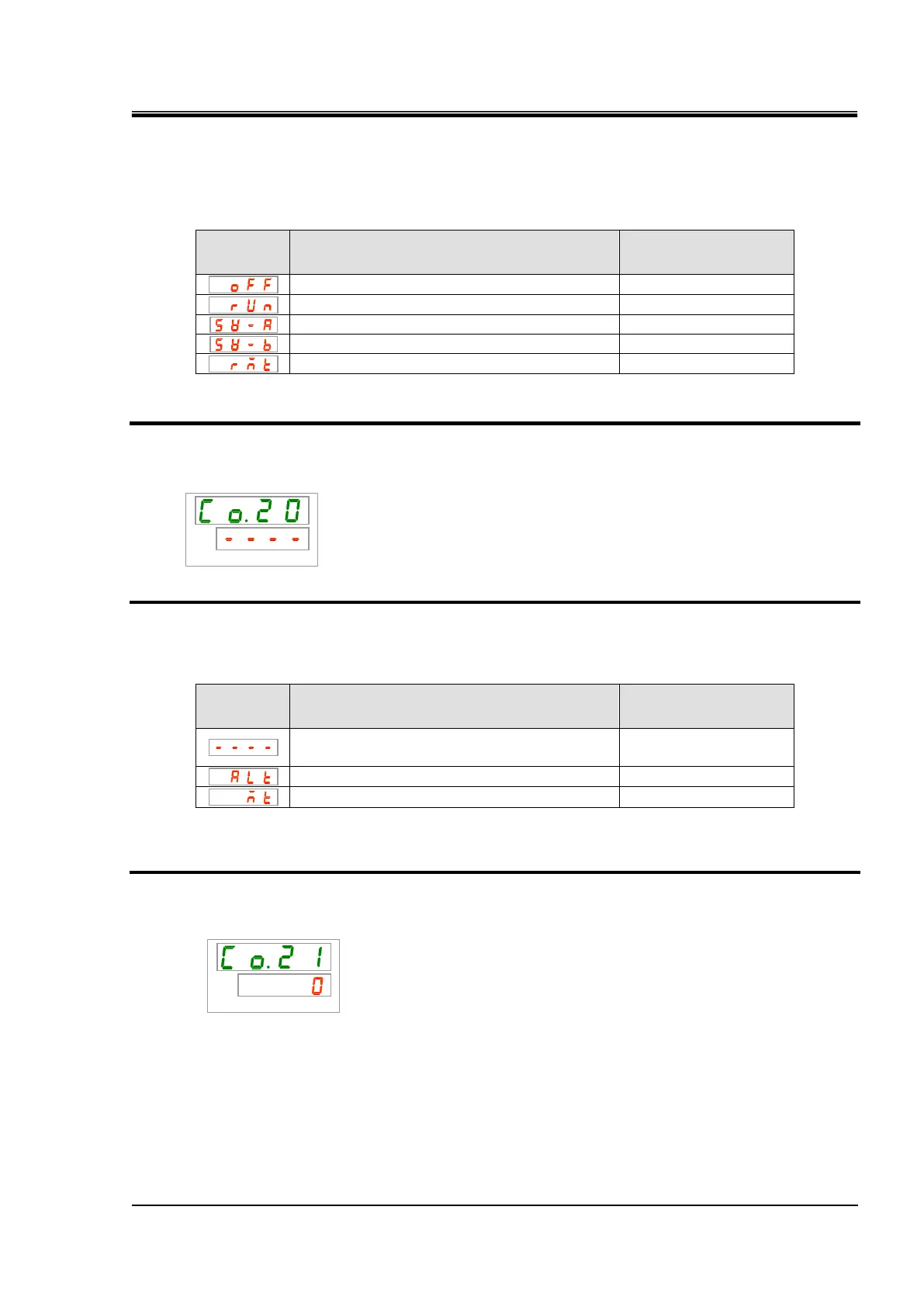

38. Perform setting of the contact input signal 2 with [▲] key or [▼] key, and press [SEL]
key to enter.
Table 5.22-20 Setting of the contact input signal 2
Set value
Explanation
Default
No signal input
✓
Run/stop signal input
External switch signal input (N.O. type)
External switch signal input (N.C. type)
Remote signal input

1
1: When the serial communication protocol is set to “Simplified communication protocol 2”, it is
not possible to set to “Remote signal”.
Setting/Checking: Contact input signal 2 type
39. Press the [SEL] key once.
Setting screen of contact input signal 2 type is displayed on the digital display.
40. Select contact input signal 2 type with [▲] key or [▼] key, and press [SEL] key to enter.
Table 5.22-21 Setting of the contact input signal 2 type
Set value
Explanation
Default
Setting/checking are not available when contact
input signal 2 setting is OFF.
Alternate signal
✓
Momentary signal

1
1: This can be set only when the contact input signal 2 is set to "Run/Stop signal input" or "Remote
signal".
Setting/Checking: Contact input signal 2 delay timer of reading
41. Press the [SEL] key once.
Setting screen of contact input signal 2 delay timer is displayed on the digital display.
PV
SV
PV
SV
