SMC Networks HRSH150-A*-40 Series User Manual

HRX-OM-Q026
Chapter 3 Transport and Setting Up
HRSH Series 3.4 Piping
3-29

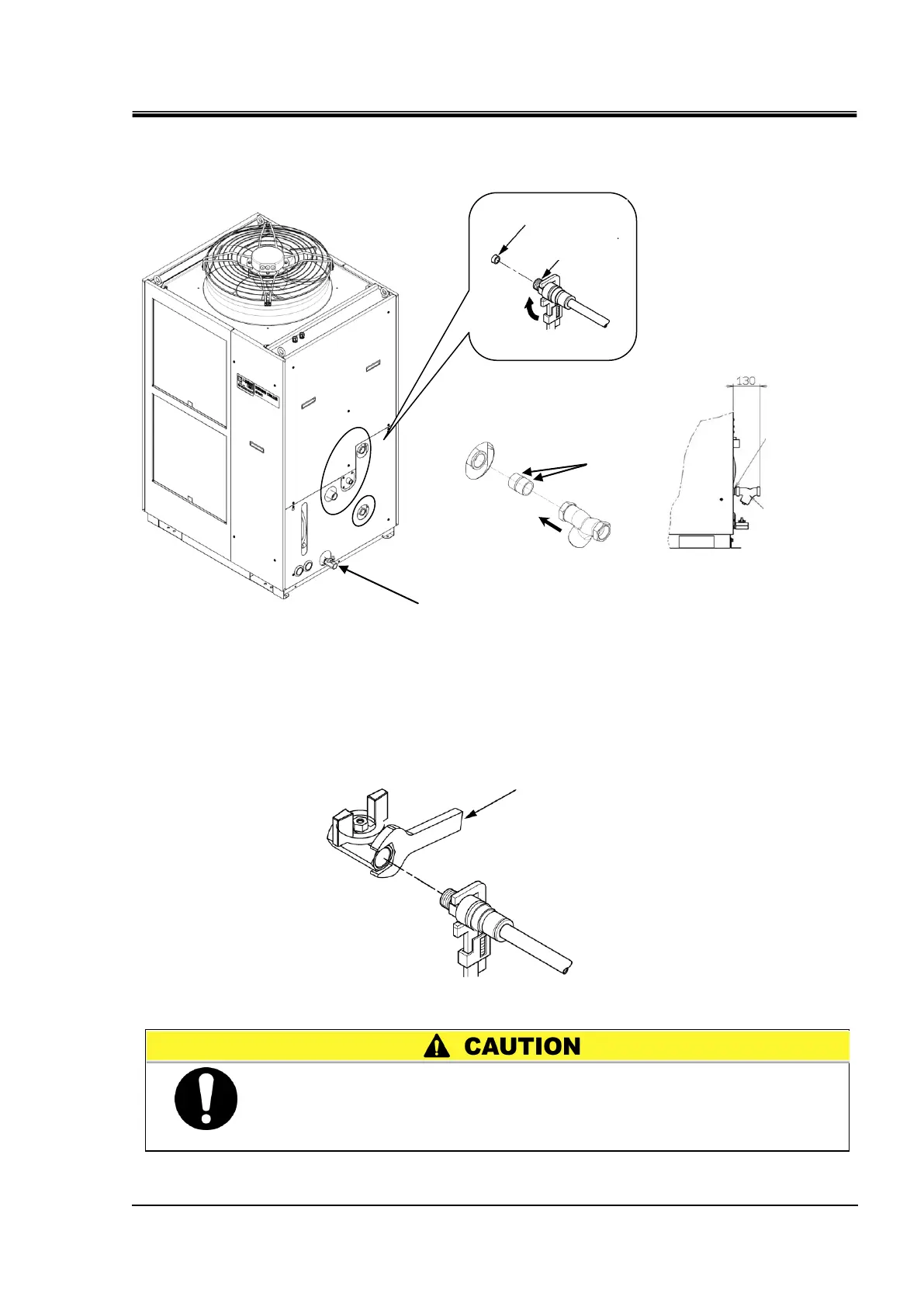

 How to connect piping
Hold the each piping port with a wrench and tighten the piping.
Fig. 3-16 Tightening of piping
 How to connect to the drain port
When piping the drain port, hold the ball valve of the drain port with a wrench
not to rotate it.
Fig. 3-17 Connection to the drain port
Without holding the ball valve of the drain port with a wrench, the ball
valve may rotate and it may cause a fluid leakage and/or malfunction
of the product. Be sure to hold the ball valve of the drain port.
Tank drain port
Note: When using the Y strainer
of the accessory, fasten it on the
return port.
Clean the filer of the strainer
after the trial operation before
starting the proper operation
Sealant
Y strainer
25A
Accessories
Barrel
nipple 25A
Connect the strainer
so that the screen
faces downward.
Arrow direction of Y strainer
Sealant
Connection port
Hold the ball valve.
