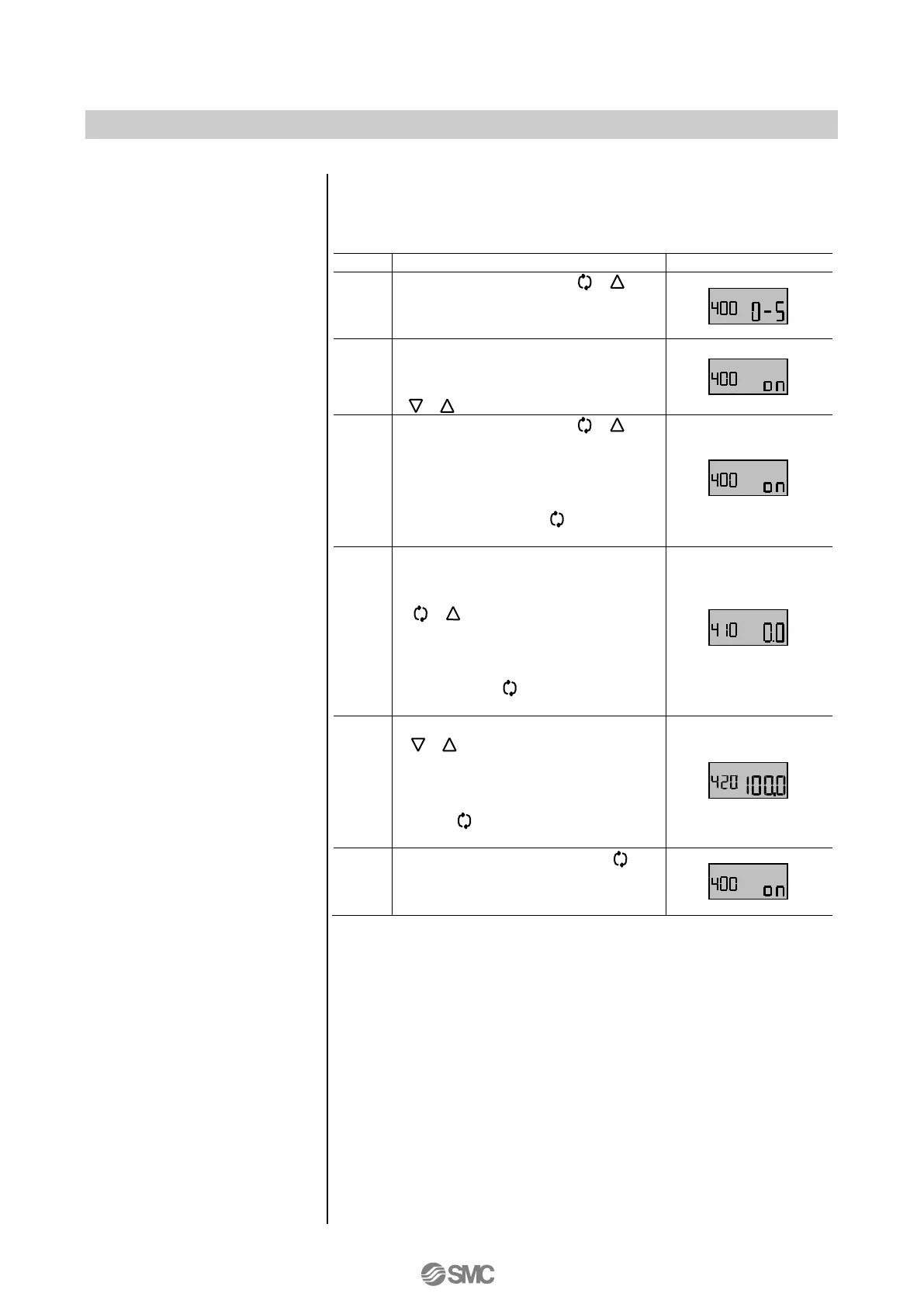

(400) Zero point / span setting
Possible to select zero point / span mode (on) and non-zero point /
span mode (oFF), also change the set value during zero point /
span mode.
Procedure
LCD display
1
Hold down set button ( ) for
1sec. or longer to move on to
parameter change mode.
2
Select zero point / span mode (on)
or non zero point / span mode
(oFF) by Down or Up button
( ).
3
Hold down set button ( ) for
1sec. or longer during zero point /
span mode to move on to value
change mode. When selecting non
zero point / span mode (oFF), hold
down mode button ( ) for 1sec. or
longer to set the value.
4
<Hereafter, only when (on) is set>
For setting the lower value with
(410), hold down set button
( ) for 1sec. or longer to
change the value within the range
of -20.0 to 60.0% after the value
flashing. After changing, hold down
mode button ( ) for 1sec. or longer
to set the value.
5
Hold down Down or Up button
( ) to set the upper limit within
the range of 40.0 to 120.0% with
(420) as setting lower limit with in
clause 4 above. Hold down mode
button ( ) for 1sec. or longer to set
the value.
6
Hold down the mode button ( ) for
1sec. or longer. Hold down again
for 1sec. or longer after interval.
＋
or
＋
＋
or
