SMC Networks IP8101 Series User Manual

No.DIG-31900-OM002
55

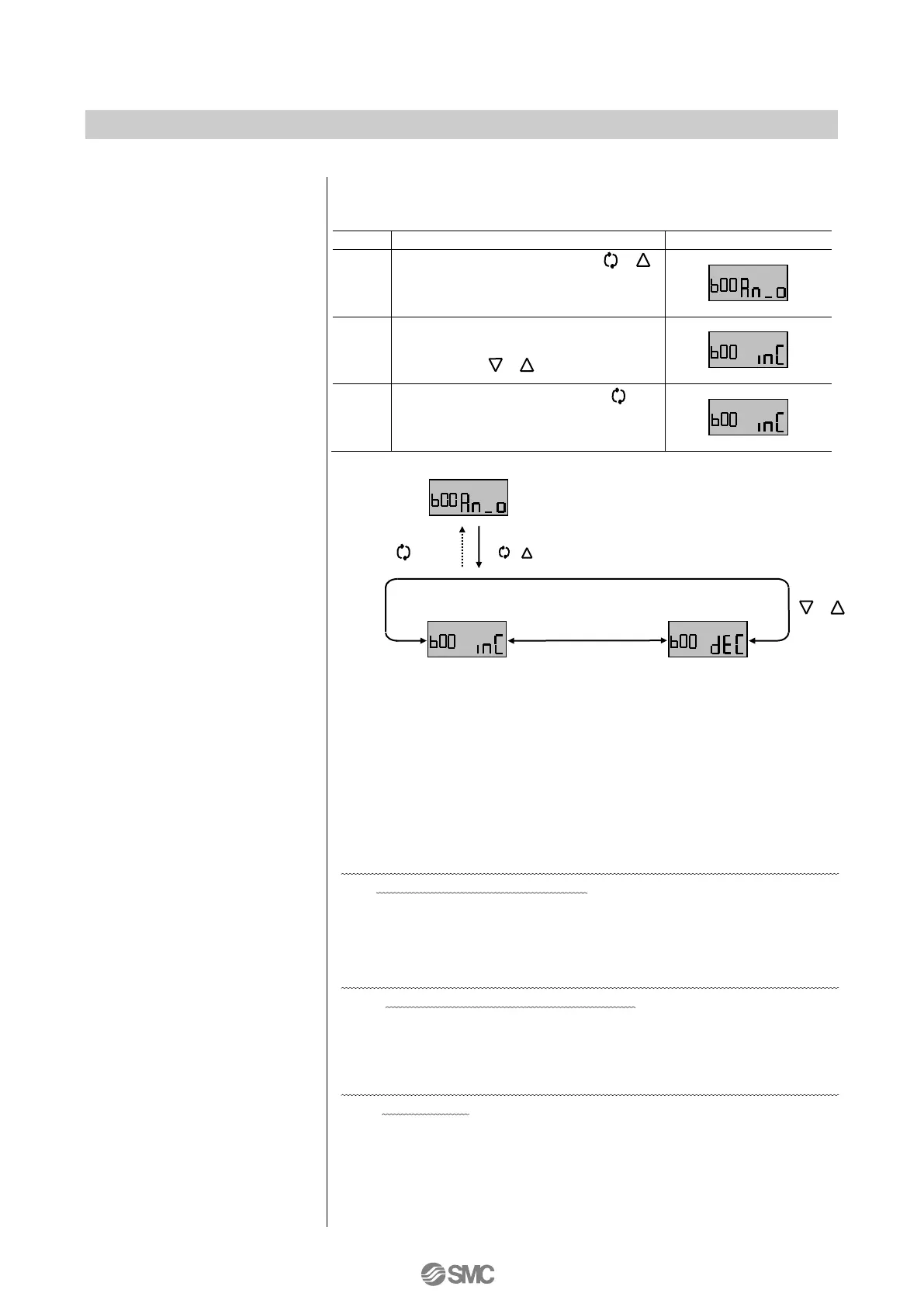

(b00) Analog output setting
(C00) Calibration
<(C10) Angle adjustment
＊
18
>
<(C20) Simple balance current
adjustment
＊
19
>
<(C30) Calibration
＊
20
>
Possible to check the fork lever mount position, balance current,
zero point / span adjustment, and input current calibration.
Adjust the mount angle of fork lever fitting.
18: For adjustment procedure, see “(2) Angle adjustment of fork lever
fitting” of “■Initial Adjustment”.
Adjust the balance current of the torque motor.
19: For adjustment procedure, see “(3)Simple balance current
adjustment” of “■Initial Adjustment”.
Adjust zero-span and PID constant automatically.
20: For adjustment procedure, see “4.Calibration” of “ ■ Initial
Adjustment”.
Possible to select analog output proportional output (inC) and
reversed output (dEC).
Procedure
LCD display
1
Hold down the set button ( )
for 1sec. or longer to start
parameter change mode.
2
Select proportional output (inC) or
reversed output (dEC) by Down or
Up button（ ）.
3
Hold down the mode button ( ) for
1sec. or longer to set output mode.
＋
or
Proportional output
Reversed output
Mode button
（ ）
≧1s
Set button
＋
（ ）
≧1s
or
Fig. 43
