SMC Networks PFCA7 Series User Manual

-21-
No.PF※※-OMA1002

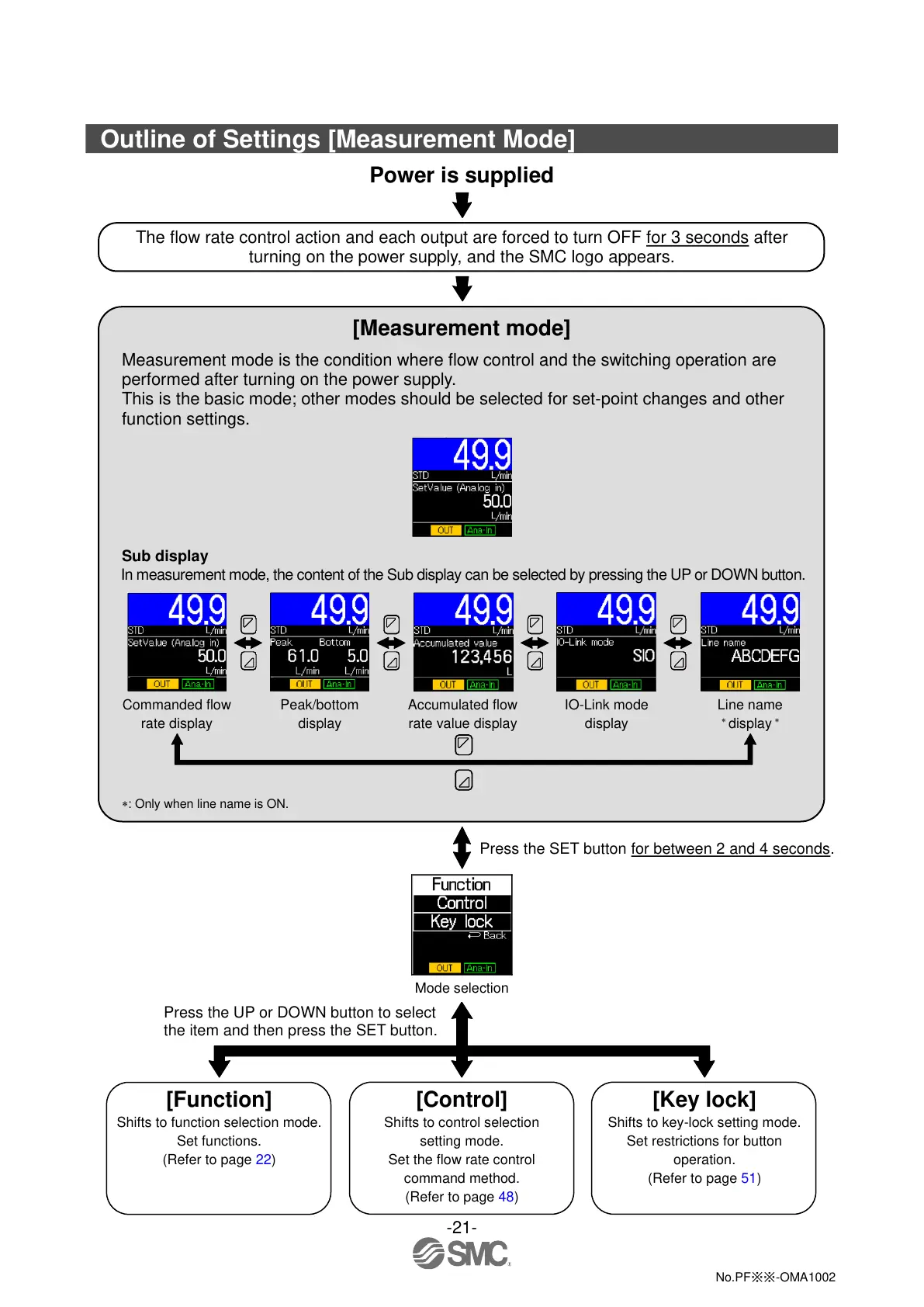

Outline of Settings [Measurement Mode]
Power is supplied
The flow rate control action and each output are forced to turn OFF for 3 seconds after
turning on the power supply, and the SMC logo appears.
[Measurement mode]
Measurement mode is the condition where flow control and the switching operation are
performed after turning on the power supply.
This is the basic mode; other modes should be selected for set-point changes and other
function settings.
Sub display
In measurement mode, the content of the Sub display can be selected by pressing the UP or DOWN button.
Commanded flow
rate display
Peak/bottom
display
Accumulated flow
rate value display
IO-Link mode
display
Line name

display

: Only when line name is ON.
Press the SET button for between 2 and 4 seconds.
Mode selection
[Function]
Shifts to function selection mode.
Set functions.
(Refer to page 22)
[Control]
Shifts to control selection
setting mode.
Set the flow rate control
command method.
(Refer to page 48)
[Key lock]
Shifts to key-lock setting mode.
Set restrictions for button
operation.
(Refer to page 51)
Press the UP or DOWN button to select
the item and then press the SET button.
