SMC Networks PFCA7 Series User Manual

-28-
No.PF※※-OMA1002

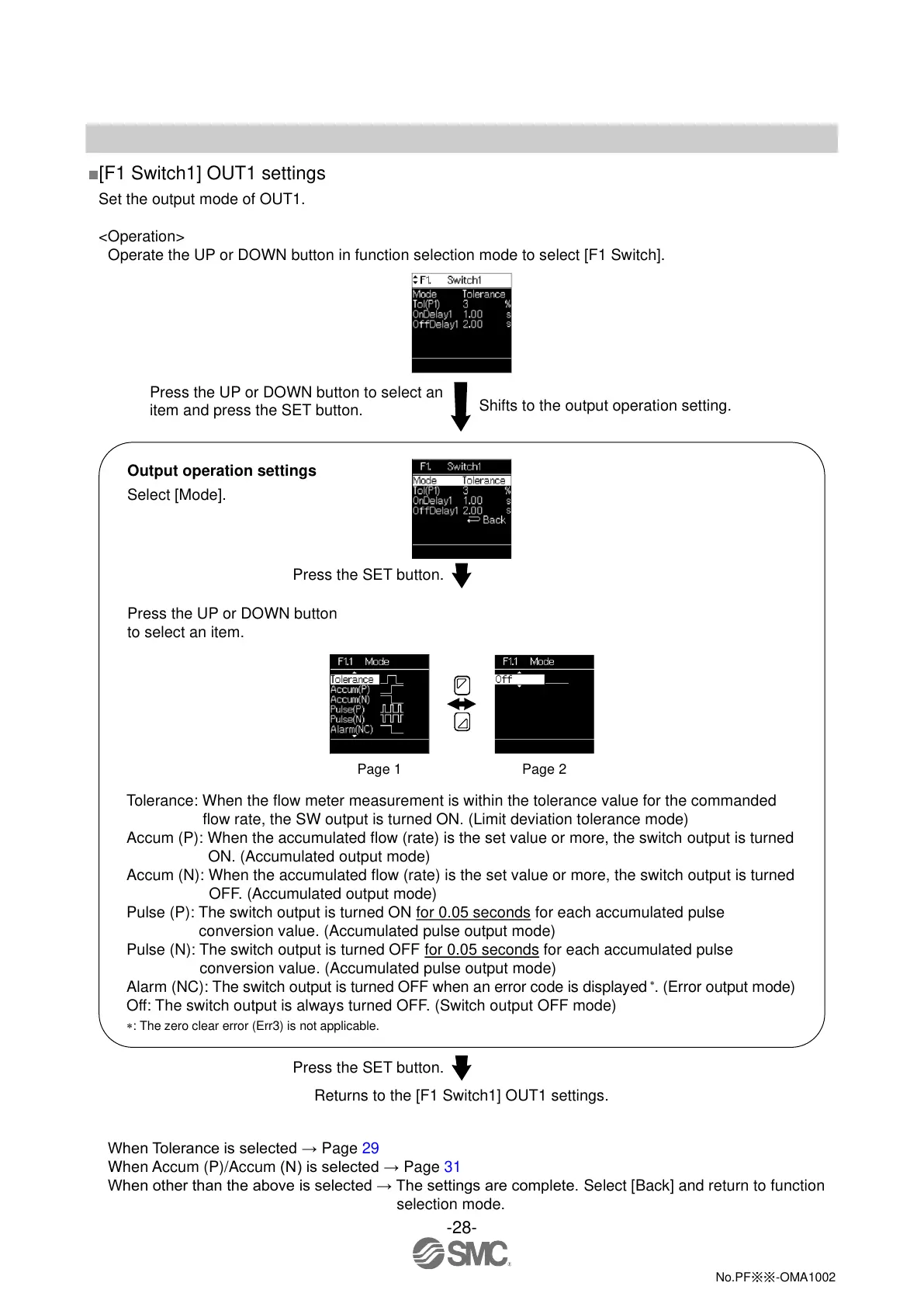

■[F1 Switch1] OUT1 settings
Set the output mode of OUT1.
<Operation>
Operate the UP or DOWN button in function selection mode to select [F1 Switch].
Shifts to the output operation setting.
Press the SET button.
Page 1
Page 2
Tolerance: When the flow meter measurement is within the tolerance value for the commanded
flow rate, the SW output is turned ON. (Limit deviation tolerance mode)
Accum (P): When the accumulated flow (rate) is the set value or more, the switch output is turned
ON. (Accumulated output mode)
Accum (N): When the accumulated flow (rate) is the set value or more, the switch output is turned
OFF. (Accumulated output mode)
Pulse (P): The switch output is turned ON for 0.05 seconds for each accumulated pulse
conversion value. (Accumulated pulse output mode)
Pulse (N): The switch output is turned OFF for 0.05 seconds for each accumulated pulse
conversion value. (Accumulated pulse output mode)
Alarm (NC): The switch output is turned OFF when an error code is displayed

. (Error output mode)
Off: The switch output is always turned OFF. (Switch output OFF mode)
: The zero clear error (Err3) is not applicable.
Press the SET button.
Returns to the [F1 Switch1] OUT1 settings.
When Tolerance is selected → Page 29
When Accum (P)/Accum (N) is selected → Page 31
When other than the above is selected → The settings are complete. Select [Back] and return to function
selection mode.
Press the UP or DOWN button to select an
item and press the SET button.
Press the UP or DOWN button
to select an item.
Output operation settings
Select [Mode].
