SMC Networks PFCA7 Series - Forced Output Signal Test

-45-
No.PF※※-OMA1002

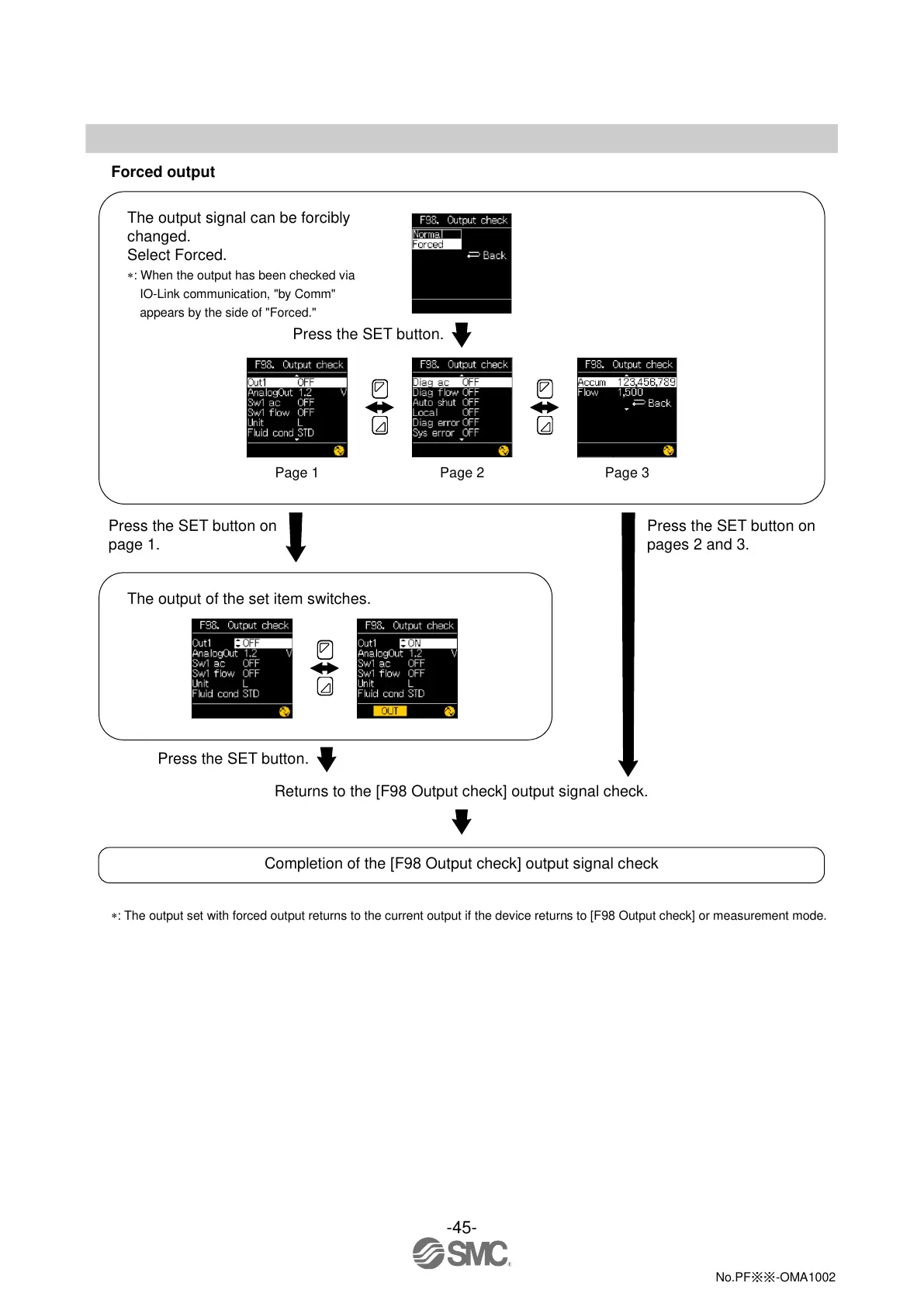

Forced output
Press the SET button.
Page 1
Page 2
Page 3
Press the SET button.
Returns to the [F98 Output check] output signal check.
Completion of the [F98 Output check] output signal check
: The output set with forced output returns to the current output if the device returns to [F98 Output check] or measurement mode.
The output signal can be forcibly
changed.
Select Forced.
: When the output has been checked via
IO-Link communication, "by Comm"
appears by the side of "Forced."
Press the SET button on
page 1.
Press the SET button on
pages 2 and 3.
The output of the set item switches.
