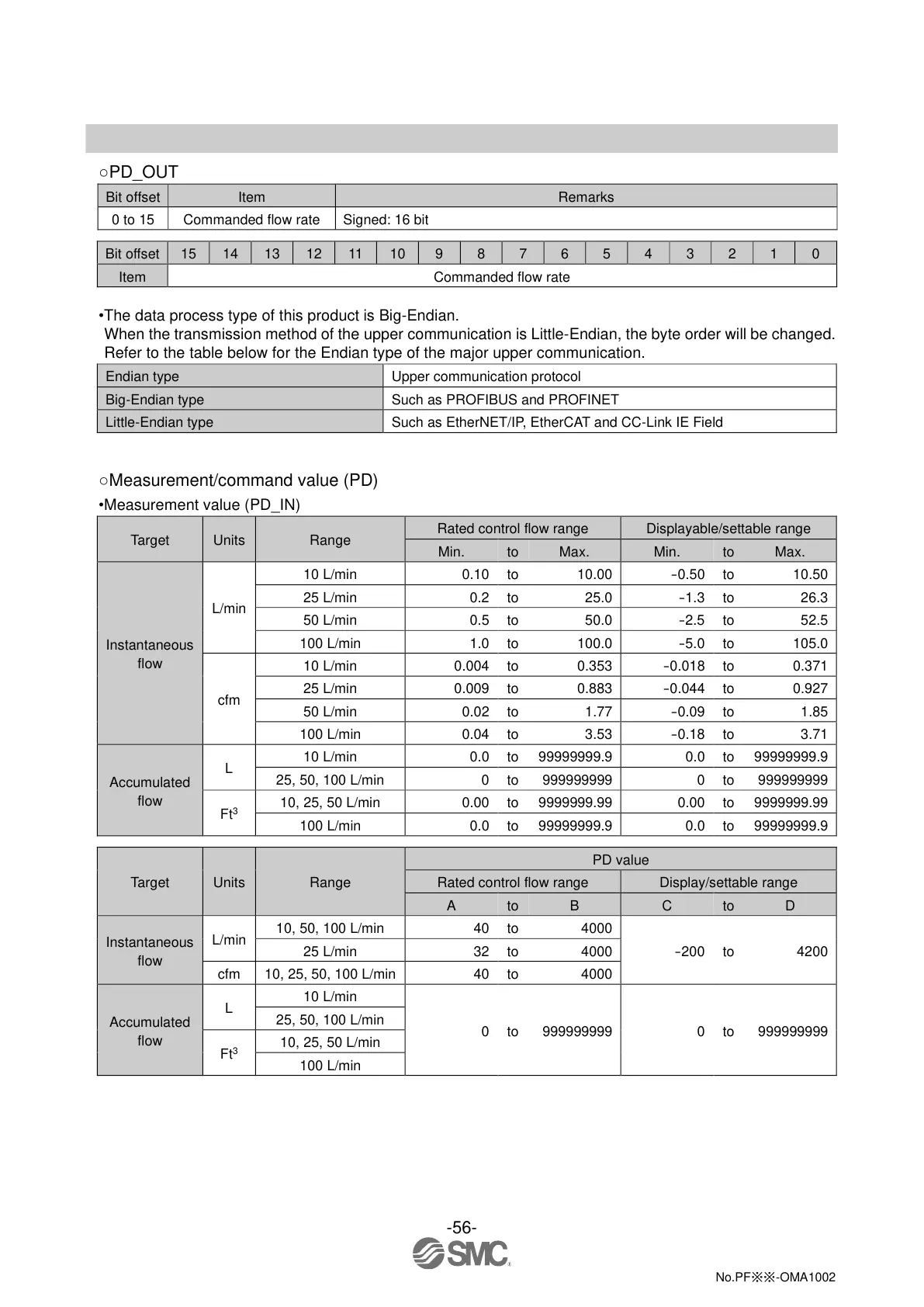

SMC Networks PFCA7 Series User Manual

-56-
No.PF※※-OMA1002
○PD_OUT
Bit offset
Item
Remarks
0 to 15
Commanded flow rate
Signed: 16 bit
Bit offset
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
Item
Commanded flow rate
•The data process type of this product is Big-Endian.
When the transmission method of the upper communication is Little-Endian, the byte order will be changed.
Refer to the table below for the Endian type of the major upper communication.
Endian type
Upper communication protocol
Big-Endian type
Such as PROFIBUS and PROFINET
Little-Endian type
Such as EtherNET/IP, EtherCAT and CC-Link IE Field
○Measurement/command value (PD)
•Measurement value (PD_IN)
Target
Units
Range
Rated control flow range
Displayable/settable range
Min.
to
Max.
Min.
to
Max.
Instantaneous
flow
L/min
10 L/min
0.10
to
10.00
- 0.50
to
10.50
25 L/min
0.2
to
25.0
- 1.3
to
26.3
50 L/min
0.5
to
50.0
- 2.5
to
52.5
100 L/min
1.0
to
100.0
- 5.0
to
105.0
cfm
10 L/min
0.004
to
0.353
- 0.018
to
0.371
25 L/min
0.009
to
0.883
- 0.044
to
0.927
50 L/min
0.02
to
1.77
- 0.09
to
1.85
100 L/min
0.04
to
3.53
- 0.18
to
3.71
Accumulated
flow
L
10 L/min
0.0
to
99999999.9
0.0
to
99999999.9
25, 50, 100 L/min
0
to
999999999
0
to
999999999
Ft
3
10, 25, 50 L/min
0.00
to
9999999.99
0.00
to
9999999.99
100 L/min
0.0
to
99999999.9
0.0
to
99999999.9
Target
Units
Range
PD value
Rated control flow range
Display/settable range
A
to
B
C
to
D
Instantaneous
flow
L/min
10, 50, 100 L/min
40
to
4000
- 200
to
4200
25 L/min
32
to
4000
cfm
10, 25, 50, 100 L/min
40
to
4000
Accumulated
flow
L
10 L/min
0
to
999999999
0
to
999999999
25, 50, 100 L/min
Ft
3
10, 25, 50 L/min
100 L/min
