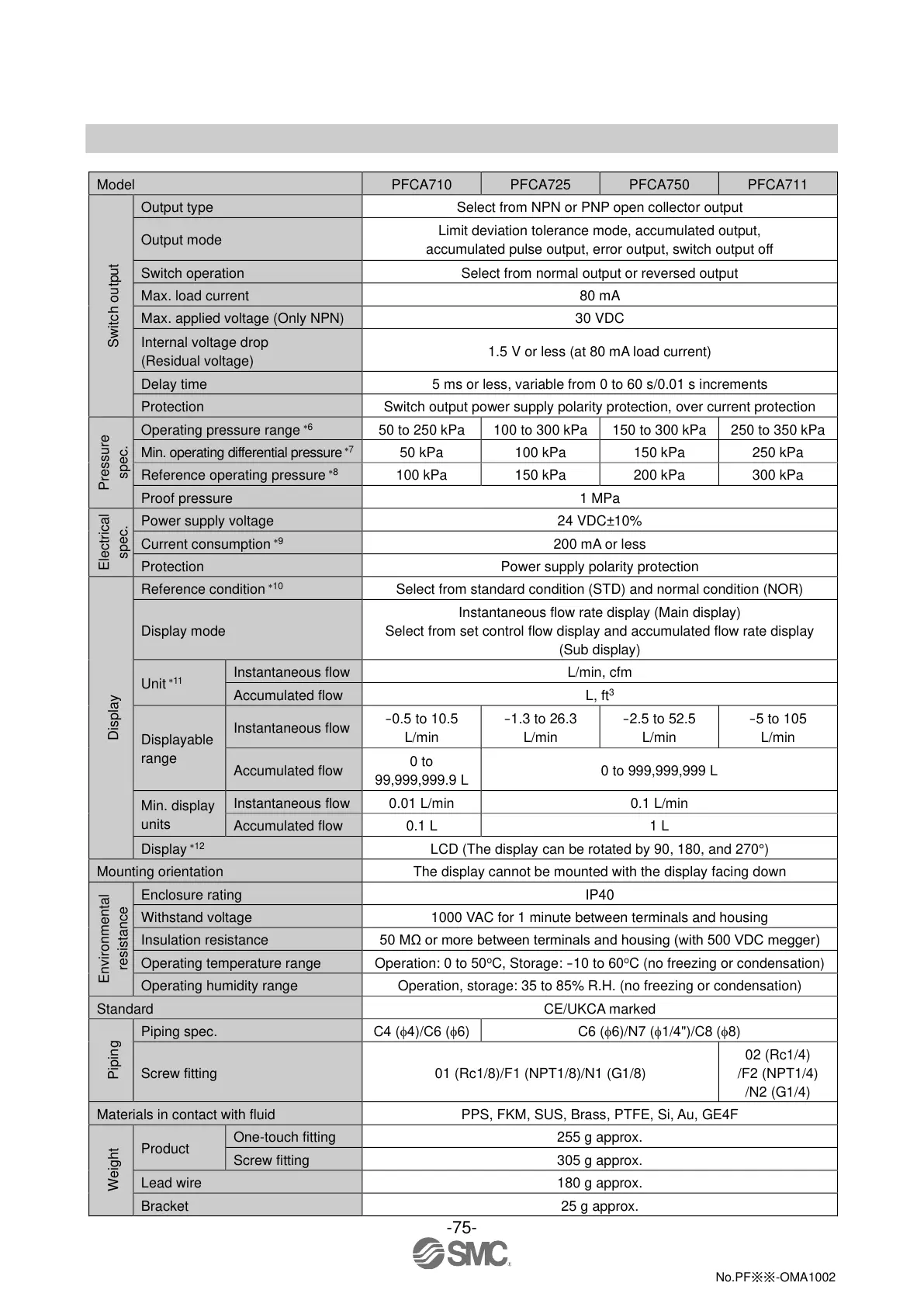

SMC Networks PFCA7 Series User Manual

-75-
No.PF※※-OMA1002
Model
PFCA710
PFCA725
PFCA750
PFCA711
Switch output
Output type
Select from NPN or PNP open collector output
Output mode
Limit deviation tolerance mode, accumulated output,
accumulated pulse output, error output, switch output off
Switch operation
Select from normal output or reversed output
Max. load current
80 mA
Max. applied voltage (Only NPN)
30 VDC
Internal voltage drop
(Residual voltage)
1.5 V or less (at 80 mA load current)
Delay time
5 ms or less, variable from 0 to 60 s/0.01 s increments
Protection
Switch output power supply polarity protection, over current protection
Pressure
spec.
Operating pressure range
6
50 to 250 kPa
100 to 300 kPa
150 to 300 kPa
250 to 350 kPa
Min. operating differential pressure
7
50 kPa
100 kPa
150 kPa
250 kPa
Reference operating pressure
8
100 kPa
150 kPa
200 kPa
300 kPa
Proof pressure
1 MPa
Electrical
spec.
Power supply voltage
24 VDC±10%
Current consumption
9
200 mA or less
Protection
Power supply polarity protection
Display
Reference condition
10
Select from standard condition (STD) and normal condition (NOR)
Display mode
Instantaneous flow rate display (Main display)
Select from set control flow display and accumulated flow rate display
(Sub display)
Unit
11
Instantaneous flow
L/min, cfm
Accumulated flow
L, ft
3
Displayable
range
Instantaneous flow
- 0.5 to 10.5
L/min
- 1.3 to 26.3
L/min
- 2.5 to 52.5
L/min
- 5 to 105
L/min
Accumulated flow
0 to
99,999,999.9 L
0 to 999,999,999 L
Min. display
units
Instantaneous flow
0.01 L/min
0.1 L/min
Accumulated flow
0.1 L
1 L
Display
12
LCD (The display can be rotated by 90, 180, and 270°)
Mounting orientation
The display cannot be mounted with the display facing down
Environmental
resistance
Enclosure rating
IP40
Withstand voltage
1000 VAC for 1 minute between terminals and housing
Insulation resistance
50 MΩ or more between terminals and housing (with 500 VDC megger)
Operating temperature range
Operation: 0 to 50
o
C, Storage: - 10 to 60
o
C (no freezing or condensation)
Operating humidity range
Operation, storage: 35 to 85% R.H. (no freezing or condensation)
Standard
CE/UKCA marked
Piping
Piping spec.
C4 (4)/C6 (6)
C6 (6)/N7 (1/4")/C8 (8)
Screw fitting
01 (Rc1/8)/F1 (NPT1/8)/N1 (G1/8)
02 (Rc1/4)
/F2 (NPT1/4)
/N2 (G1/4)
Materials in contact with fluid
PPS, FKM, SUS, Brass, PTFE, Si, Au, GE4F
Weight
Product
One-touch fitting
255 g approx.
Screw fitting
305 g approx.
Lead wire
180 g approx.
Bracket
25 g approx.
