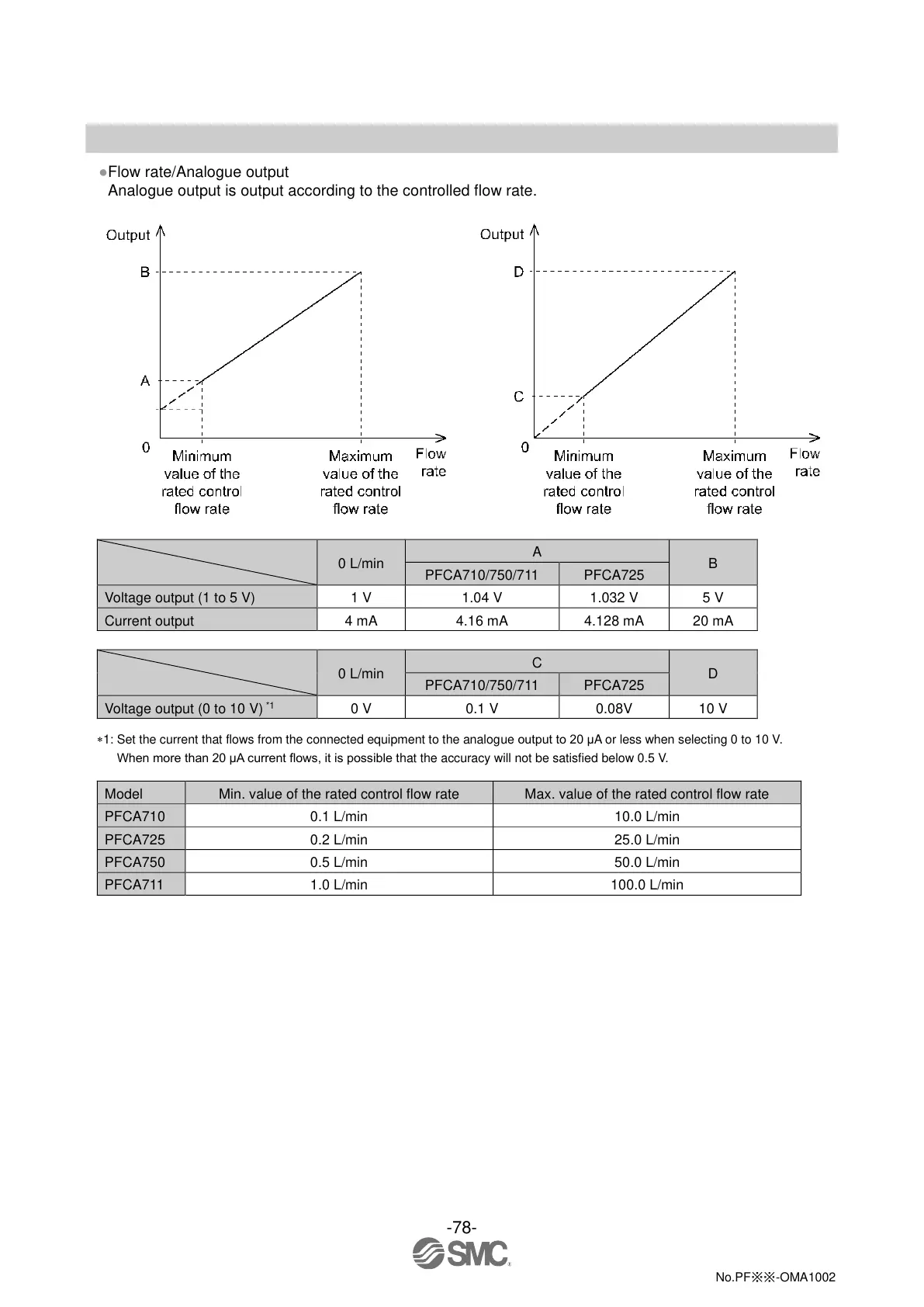

●Flow rate/Analogue output
Analogue output is output according to the controlled flow rate.
0 L/min
A
B
PFCA710/750/711
PFCA725
Voltage output (1 to 5 V)
1 V
1.04 V
1.032 V
5 V
Current output
4 mA
4.16 mA
4.128 mA
20 mA
0 L/min
C
D
PFCA710/750/711
PFCA725
Voltage output (0 to 10 V)
*1
0 V
0.1 V
0.08V
10 V
1: Set the current that flows from the connected equipment to the analogue output to 20 μA or less when selecting 0 to 10 V.
When more than 20 μA current flows, it is possible that the accuracy will not be satisfied below 0.5 V.
Model
Min. value of the rated control flow rate
Max. value of the rated control flow rate
PFCA710
0.1 L/min
10.0 L/min
PFCA725
0.2 L/min
25.0 L/min
PFCA750
0.5 L/min
50.0 L/min
PFCA711
1.0 L/min
100.0 L/min
