Snap‐onEEWB330AHandspinWheelBalancer
5.6.2GaugeheadapplicationonvariousWheeltypesIn
ordertobeabletodetermineunbalanceinasingle
measuringrun,therimdimensionshavetobeentered
correctly.Thereforeproceedwithutmostcareandasis
shownintheFigureswhenapplyingthegaugeheadon
theriminthedesiredweightfittingposition.Incorrect
applicationwillresultindeviationsofmeasuredvalues
andconsequentlyinaccurateresultsofthemeasuring

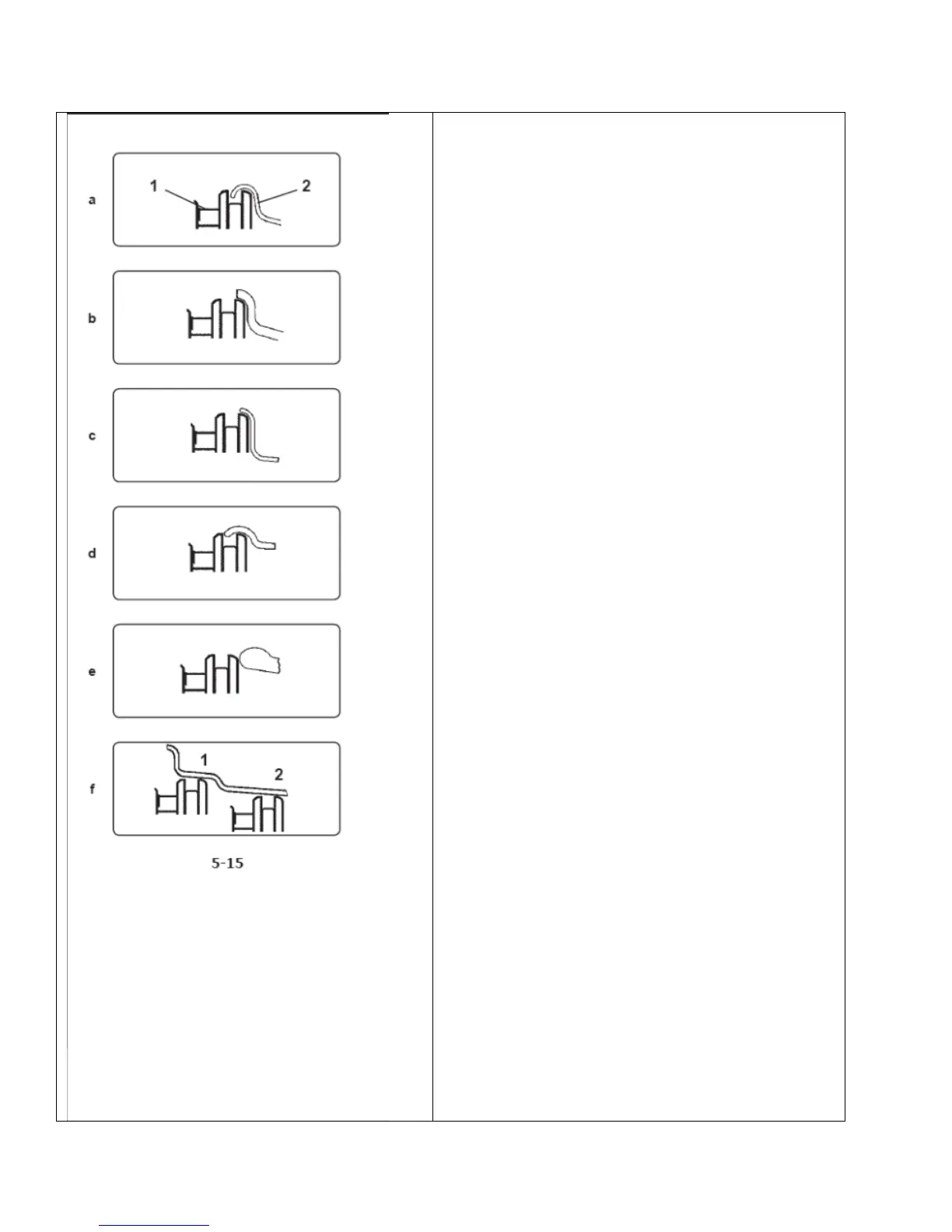

run.Fig.5‐15ato5‐15fshowcorrectapplication(with
andwithoutadhesiveweight)ofthegaugeheadon
variousrimsandforvariousweightfittingpositions.
Fig.5‐15aStandardwheel–Steelrim1Gaugehead 2
Rim
Fig.5‐15bStandardwheel–Alloyrim
Fig.5‐15cLight‐truckwheel–Steelrim
Fig.5‐15dLight‐truckwheel–15°tapersteelrim
Fig.5‐15eAlloywheel‐Rimwithoutahousingforclip‐
onweights
Fig.5‐15fAlloywheel–AdhesiveweightsALU
1 Leftcorrectionplane,firstapplicationposition
2 Rightcorrectionplane,secondapplication
position.
