5.3.3 Alligator Clips and Probes
Insulated alligator clips and probes (pointed type) can be attached to the end of the test leads.
Each alligator clip is colour matched with a test lead, and the probes are available in red and black.

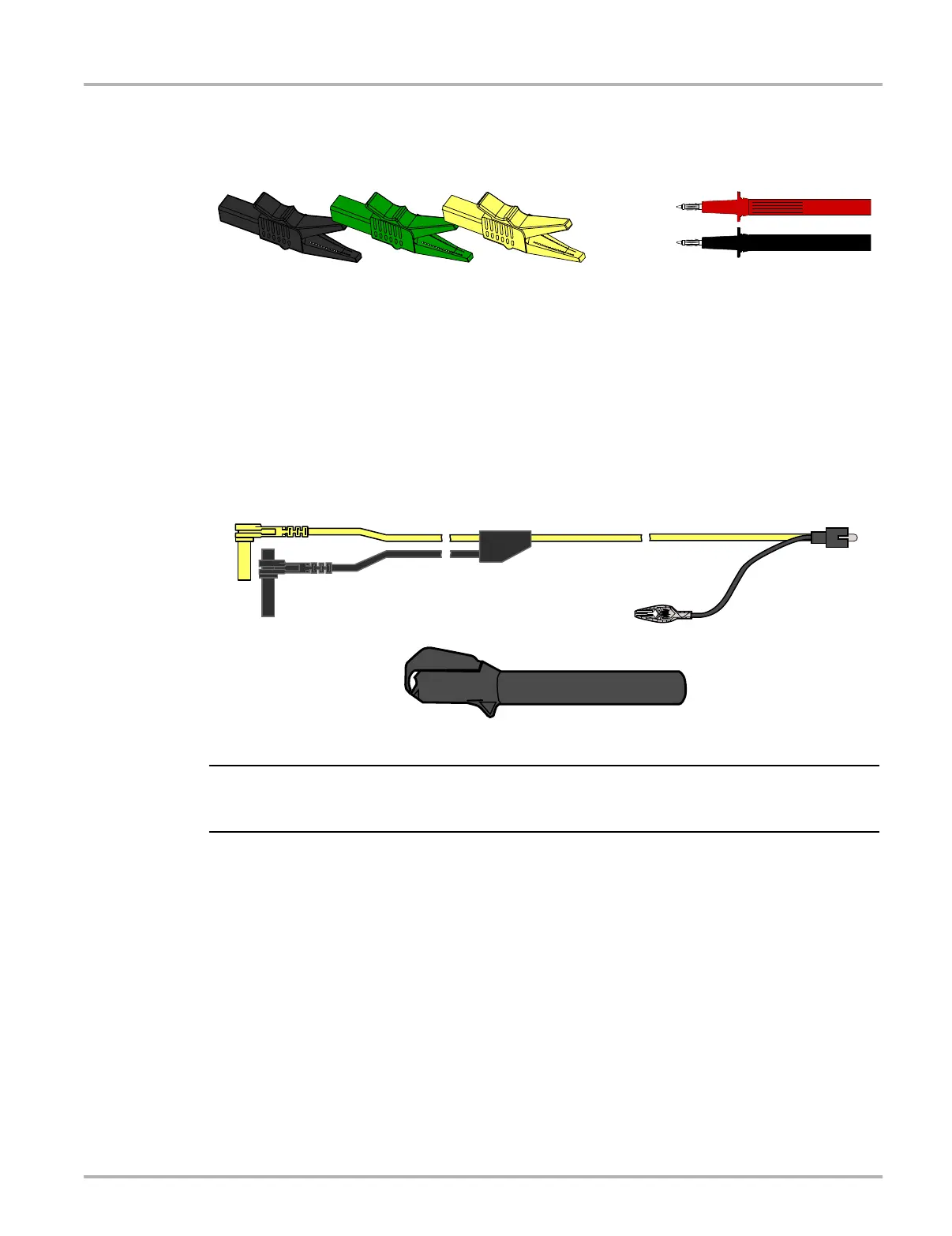

Figure 5-3 Alligator clips
5.3.4 Secondary Ignition Coil Adaptor Lead and Clip-on Adaptor
(optional)
The secondary ignition adaptor lead can be used with the secondary ignition clip-on wire adaptor,
coil-in-cap (CIC), or coil-on-plug (COP) secondary ignition adaptors to display secondary ignition
signals. The clip-on adaptor clips over a secondary ignition wire to pickup a signal, and the CIC
and COP adaptors attach to the ignition coil. The coil adaptor lead includes a black, right-angle
stackable ground plug, and a RCA type connector that is used to connect the lead to a secondary
ignition adaptor. The spring clamp is used to connect to a ground.
Figure 5-4 Secondary Ignition Coil Adaptor Lead and Clip-on Wire Adaptor
NOTE:
i Contact your sales representative for additional information on OEM specific CIC and COP
secondary ignition adaptors.
