Guided Component Tests Operation
Depending on the vehicle and component selected, different options and sub-menus may be
displayed. Information and tests may vary:
• Component Information— see Component Information‚ on page 108.
• Tests— see Tests‚ on page 110.
• Reference Information—provides identification of components, connector pin location
and functions, and abbreviation reference.
6.3.1 Component Information
Component Information provides (if available) specific operational information on the selected
component, and may also include electrical connector and pin location and function details
z To view component information:
1. Select a component.
2. Select Component Information from the Component Test menu (Figure 6-5).

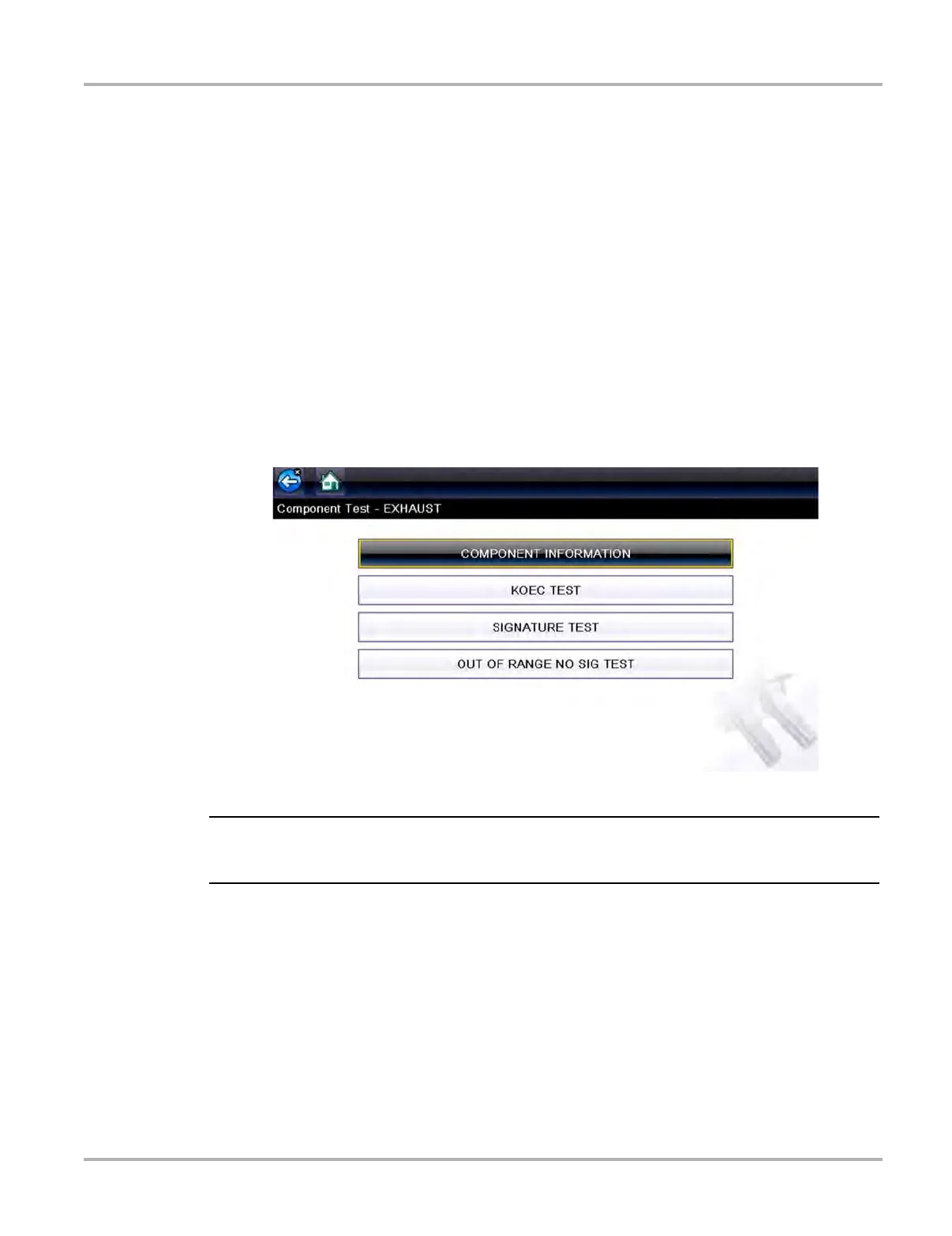

Figure 6-5 Component Tests Menu
i An additional selection may be required for some components (e.g. selecting front or rear for an
oxygen sensor (O2S).
To Next Page
