OBD-II/EOBD OBD-II/EOBD Menu
Selection of either option displays test results as shown in the data viewer (Figure 4-3).
Quick reference indicators are used to show monitor status on the left side of the screen
(Figure 4-3):
• Green icon “a” mark - Monitor test is complete
• Grey icon “—” mark - Monitor test is not complete
• Red icon “X” mark - Monitor test is not supported by vehicle

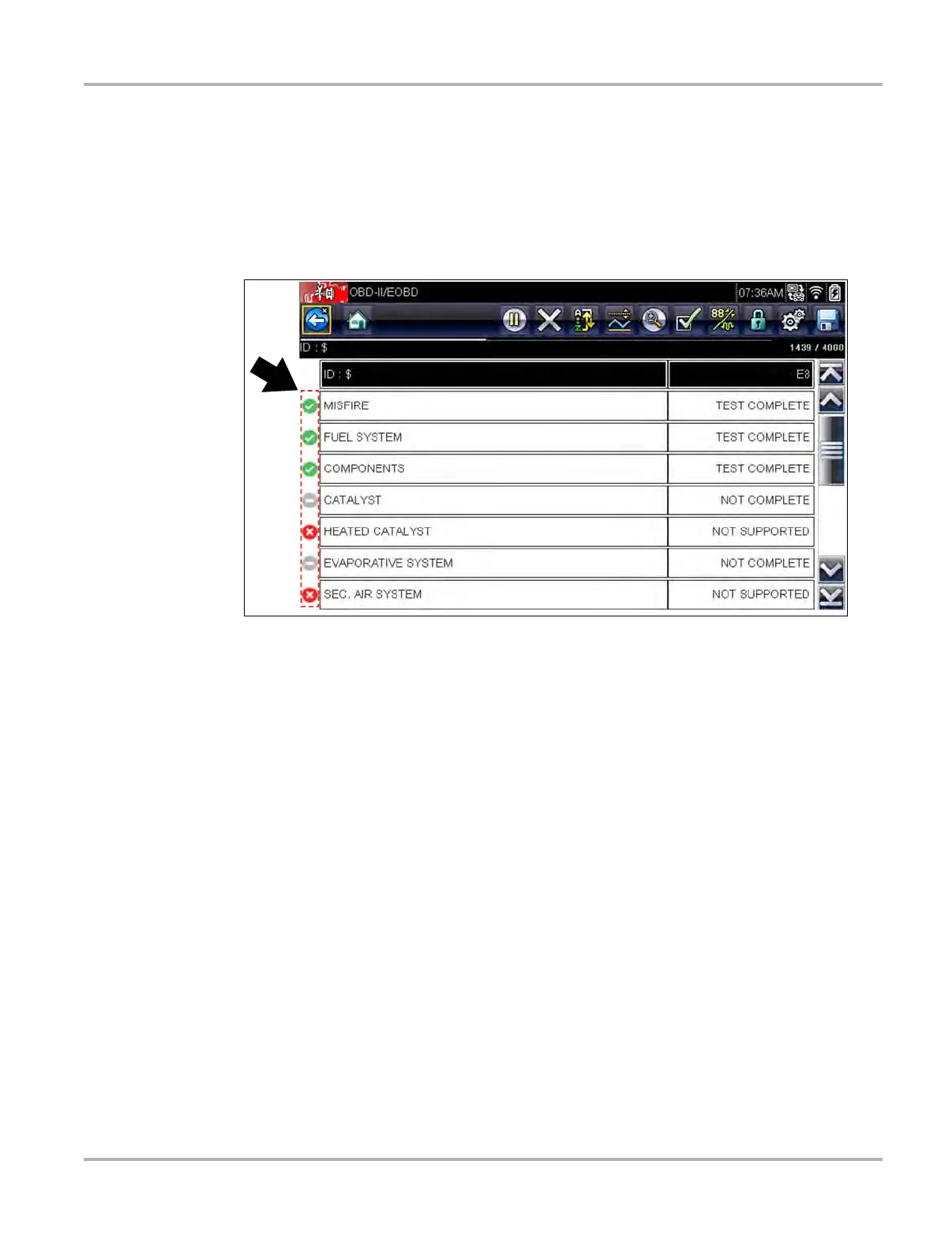

Figure 4-3 Readiness monitor test report
Use the scroll bar to view the entire list of Readiness Monitors.
Selecting Save from the toolbar saves the monitor data as an .SCM file for review at a later time.
See View Saved Data‚ on page 114 for additional information.
MIL Status
This test checks the ECM commanded state (on or off) if the malfunction indicator lamp.
4.2.2 OBD Direct
OBD Direct includes the following menu and submenu choices:
• OBD Diagnose
– Start Communication - initiates a test session
– Connector Information - provides DLC location details
– Manual Protocol Selection - provides choices for communication protocol
• OBD Training Mode - allows you to familiarize yourself with the capabilities of OBD-II/EOBD
while navigating through menus without being connected to a vehicle.
