86
Scope Multimeter Saving and Reviewing Scope / Multimeter Data Files
Display Per Division - displays the graduation value of the major scale divisions

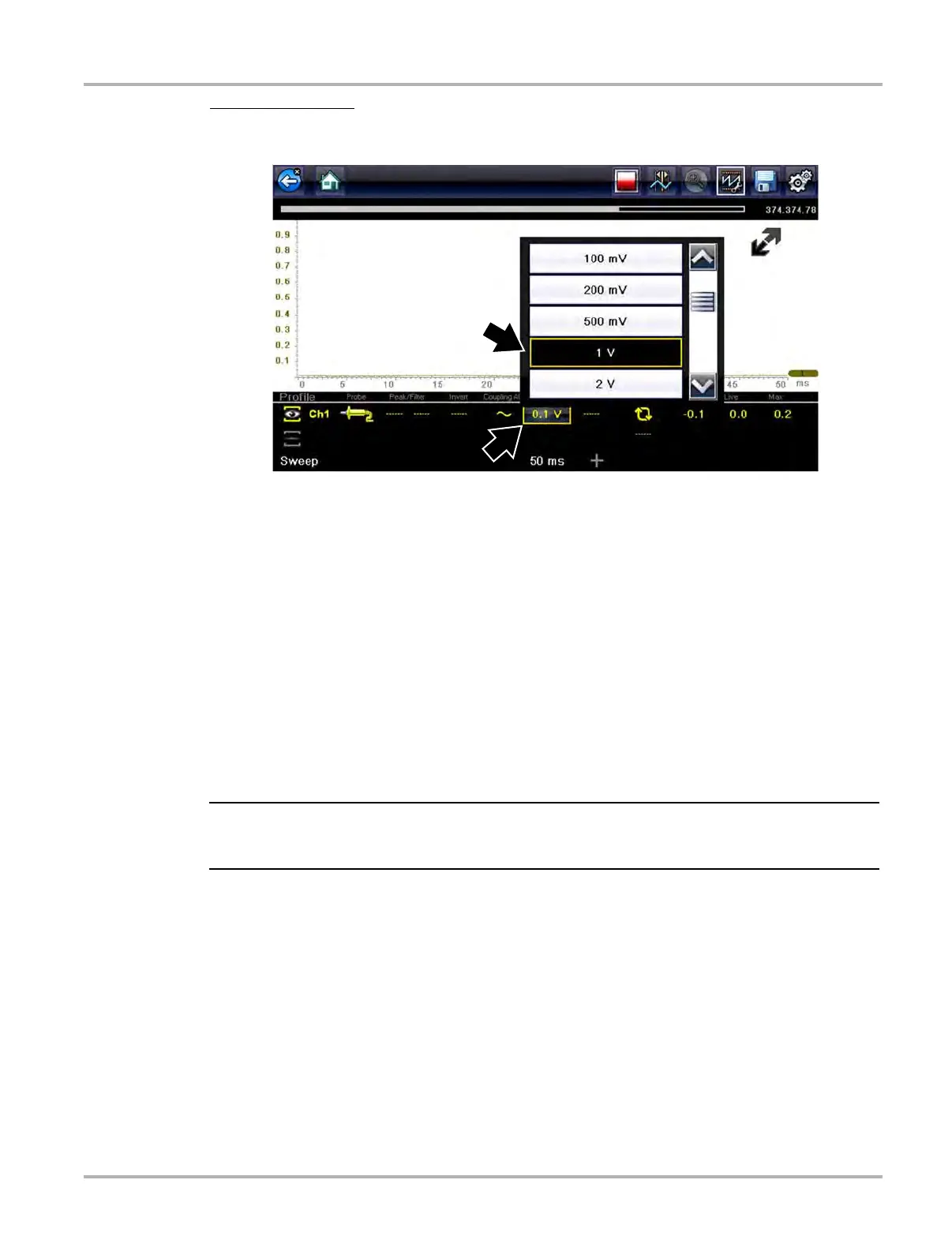

Example (Figure 5-30): If the vertical scale is set to 1V, the value displayed is 0.1V.
Figure 5-30
5.7 Saving and Reviewing Scope / Multimeter Data Files
The following section describes the procedures used to save and review Scope/Multimeter and
Guided Component Tests data files.
5.7.1 Data Buffer
The graphing multimeter and lab scope functions have the capability to save, store and playback,
data (test signals) utilizing internal storage memory and buffer memory.
When a test function (e.g. Lab Scope > DC Volts) is selected and displays onscreen, a data buffer
automatically starts to store data in buffer memory. The data buffer runs continuously (storing
data) until the Stop icon is selected.
i The data buffer starts and runs continuously with or without an active input test signal, when a test
function is selected.
The Data Buffer Indicator can be used to visually see the amount of stored buffer data. This
graphical indicator contains a slider within a bar graph. The bar graph shows how much stored
data is in the memory buffer. The slider indicates the position of the current screen in relation to
the entire memory buffer contents.
The Data Buffer Position Counter displays a numerical value, indicating the position of the current
displayed frame of data within buffer memory.
