Snap-On MODIS Edge - Low Amp Current Probe (Optional); Pressure Transducers and Adaptors (Optional)

59
Scope Multimeter Test Leads and Accessories
5.3.5 Low Amp Current Probe (optional)
The Low Amp Current Probe is used measure AC or DC current up to 60A. This probe includes
two scales (0 to 20A) and (0 to 60A) that can be used to provide accurate and reliable non-
intrusive current measurement for components such as, ignition coils, fuel injectors, fuel pumps,
relays, and electric motors.

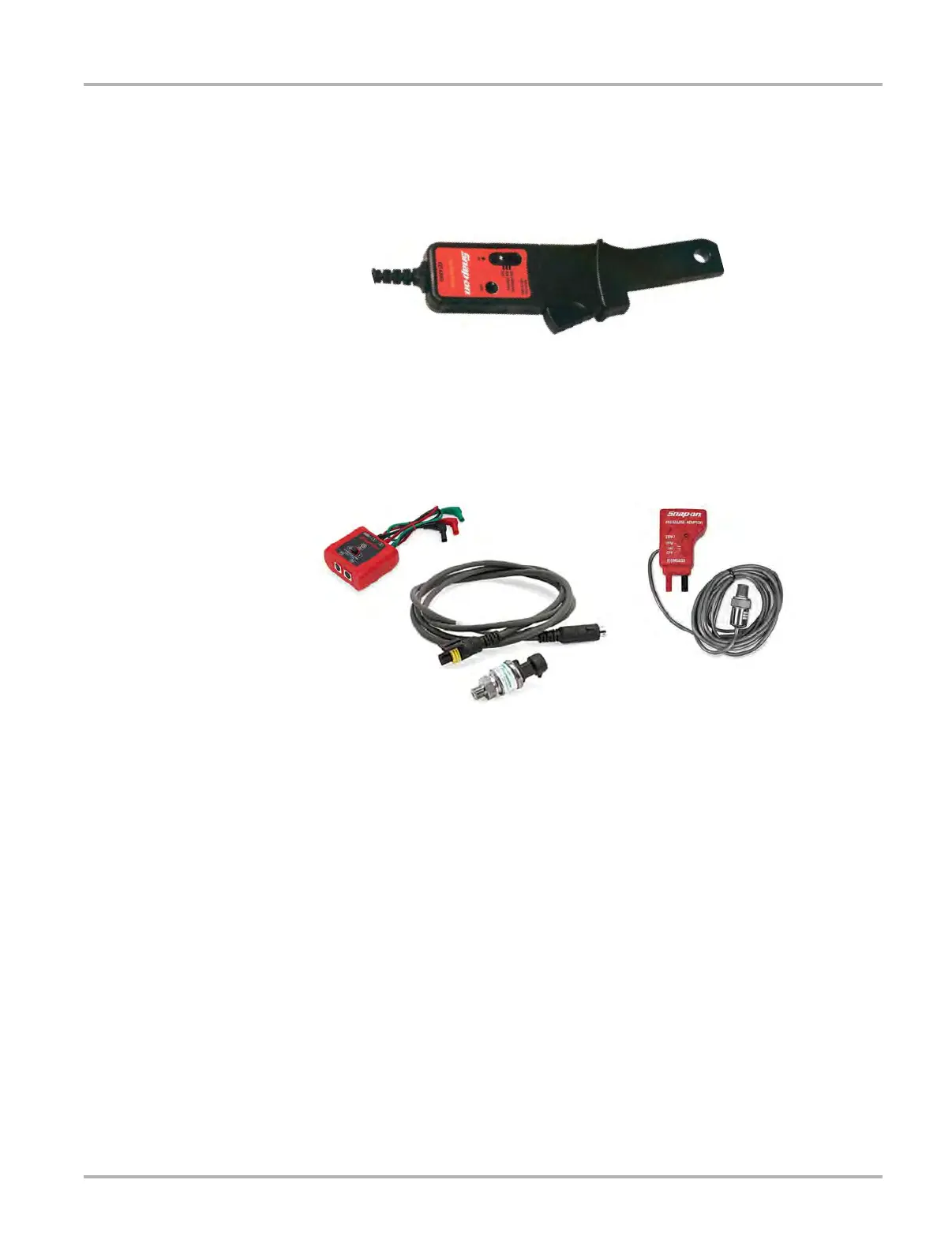

Figure 5-5 Low Amp Current Probe
5.3.6 Pressure Transducers and Adaptors (optional)
Different pressure transducers and adaptors are available for measuring positive and negative
gas and liquid pressures. Depending on the adaptor, measurement capabilities range from 1 to
5000 psi and up to 29 inHg. Measurement and application capabilities vary per device.
Figure 5-6
