109
Guided Component Tests Operation

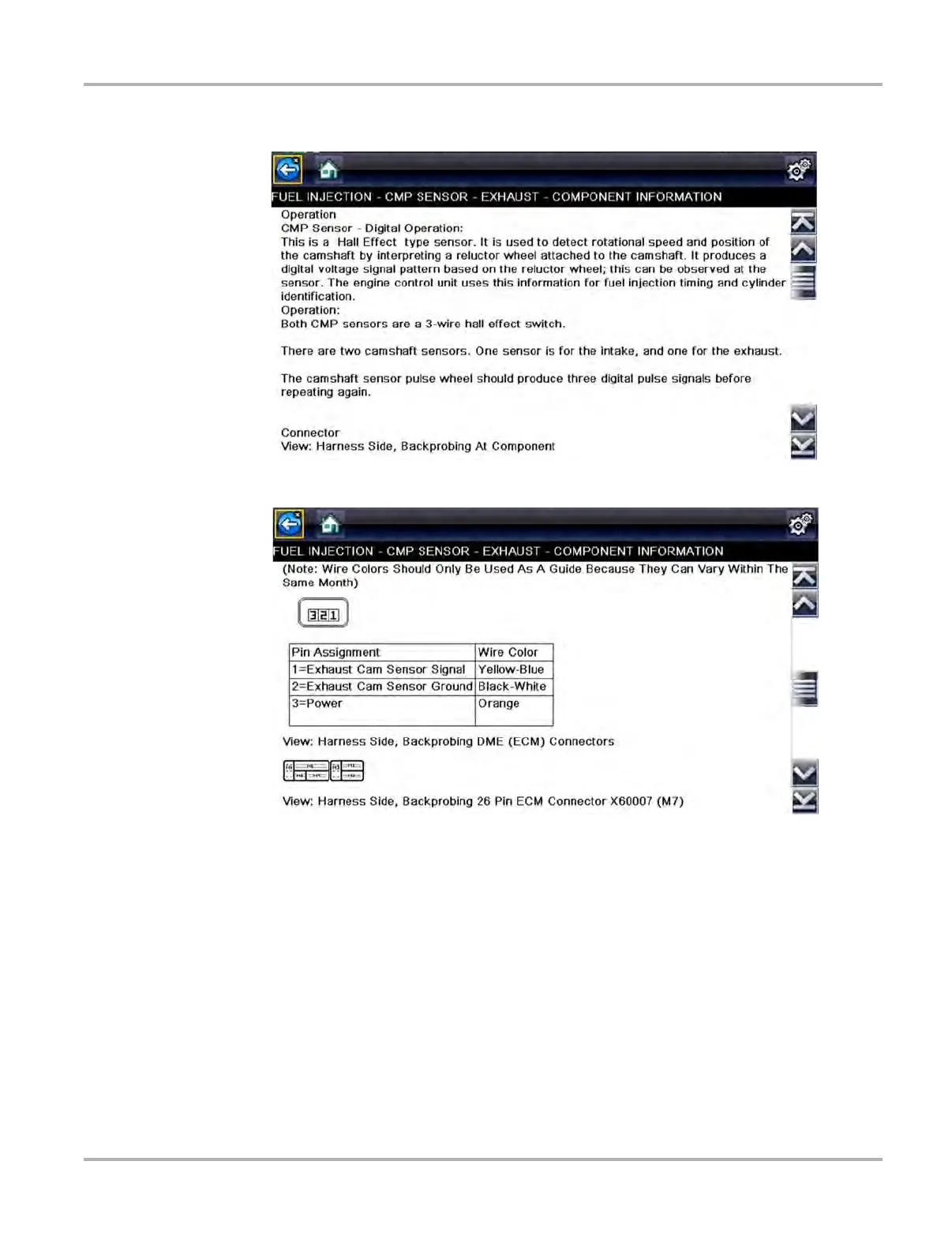

Component Information is displayed (Figure 6-6 and Figure 6-7).
Figure 6-6 Component Information Screen
Figure 6-7 Component Information Screen - Continued
Screens are divided into sections to quickly guide you to the correct information (available
sections and information will vary):
• Operation—provides a general description of component operation.
• Tech note—provides component related tips (e.g. common failures or faults), additional
information may include OEM service updates and recall information.
• Connector—displays illustrated electrical connectors and socket/pin identification.
• Location—provides component locations, testing tips, and alternate testing locations if
available.
Use the scroll bar to view additional information.
3. Select Back on the Toolbar, or press the N/X button, to return to the component menu.
