Snap-On Ultra User Manual

76
Single Bar Calibration
9. Mount the front selected wheel clamps and target assembly to the calibration paddles.
NOTE: The wheel clamp and tar-
get assembly must be mounted
vertical before continuing. This
initial reading is recording the
RTP data and marks vertical for
all alignments.
10. Press the “Next” icon to con-
tinue.

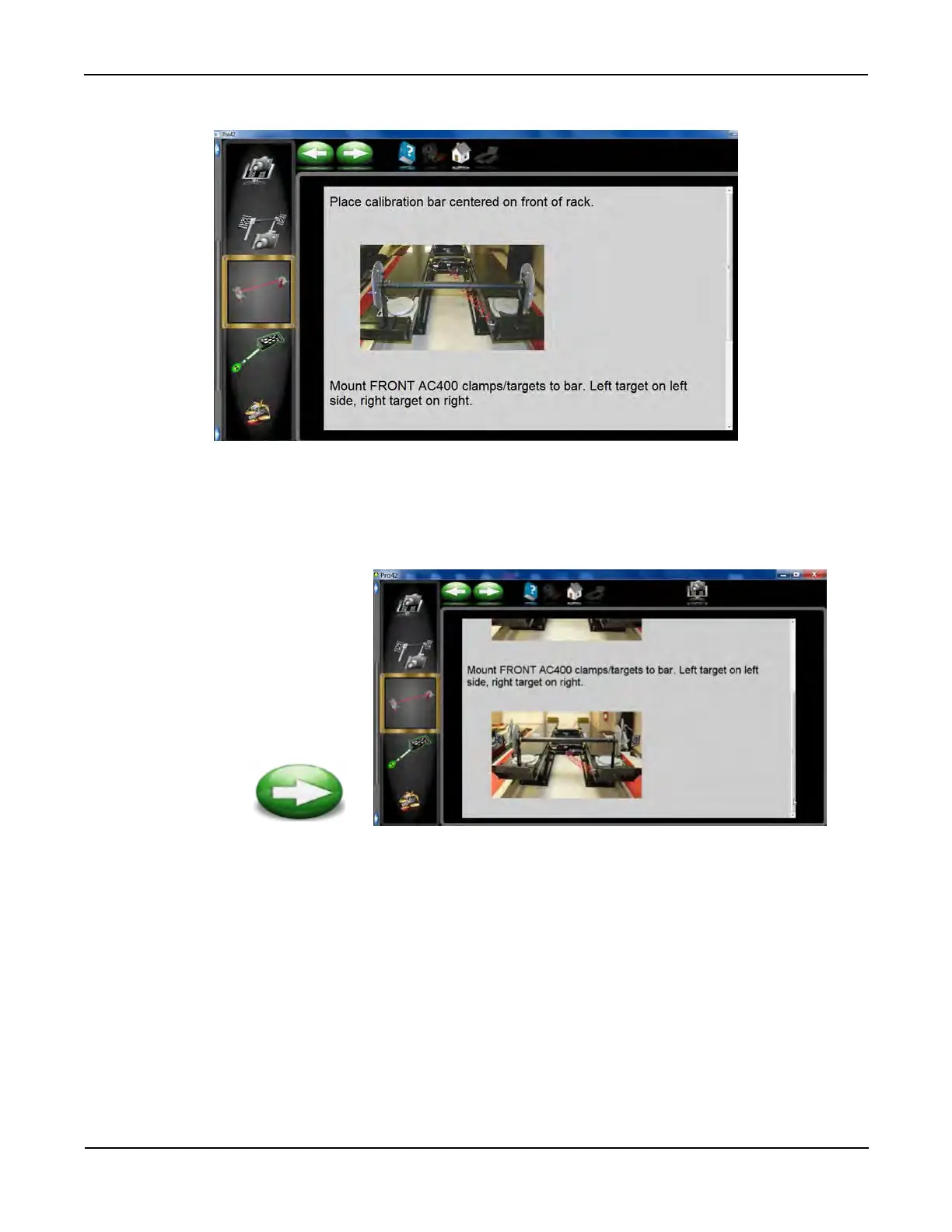

8. Place the calibration bar and stands in front of the turnplates if possible and mount the paddle assembly
to the bar.
