5. Respectively remove the left and right side plates with an hex key.

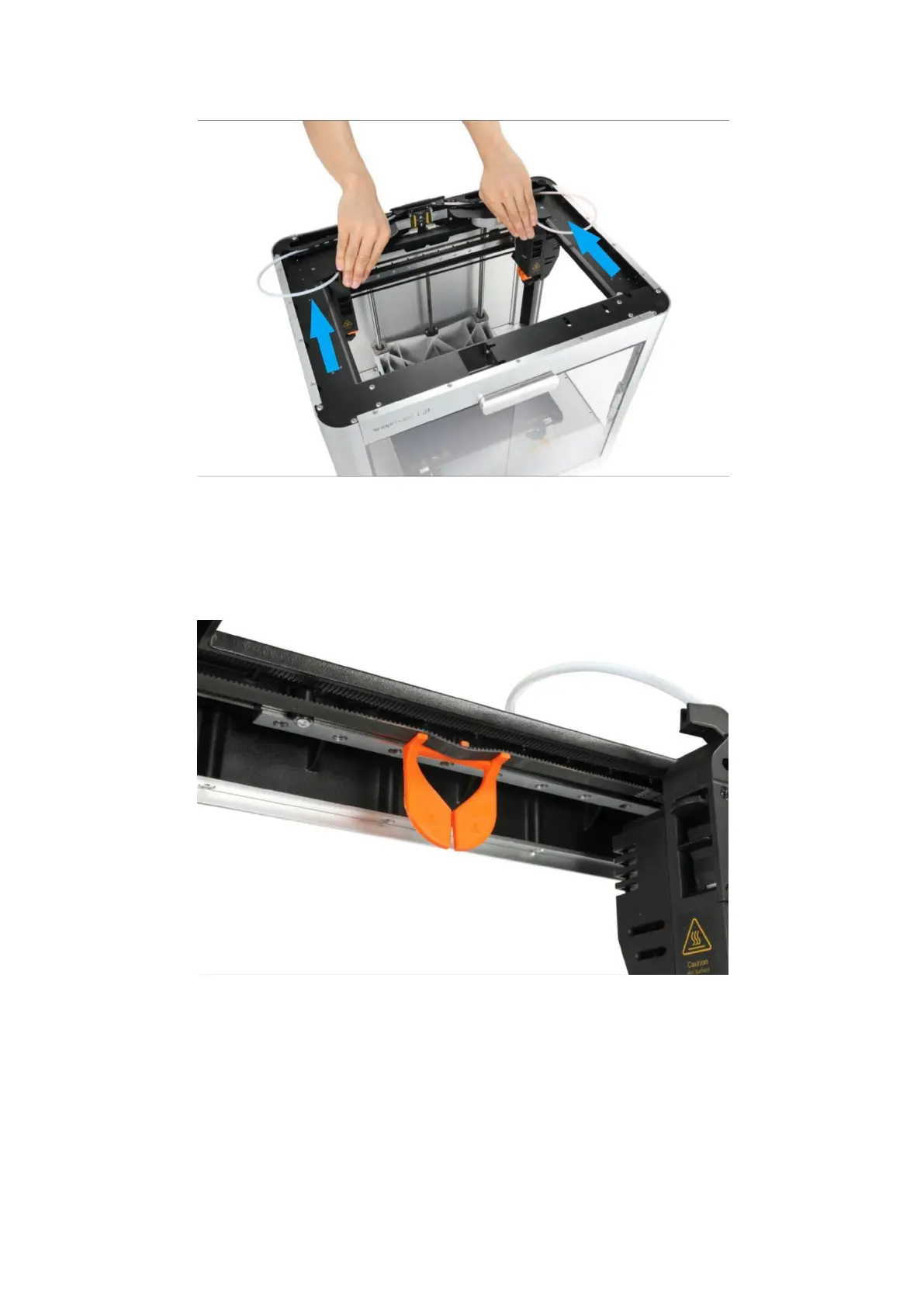

6. Clip the measuring device into the Y-axis belt on the left side as shown in the
figure.
7.
Turn the screw in the upper left corner on the back of the printer by hand until
the two sides of the measuring instrument are closed and there is no obvious gap.
