BTP-2002NP User’s Manual
3) USB interface connection example:
Host side Printer side
VBUS ..................................VBUS
DATA -.................................DATA -
DATA+..................................DATA+
GND ....................................GND
4) Interface Connectors:

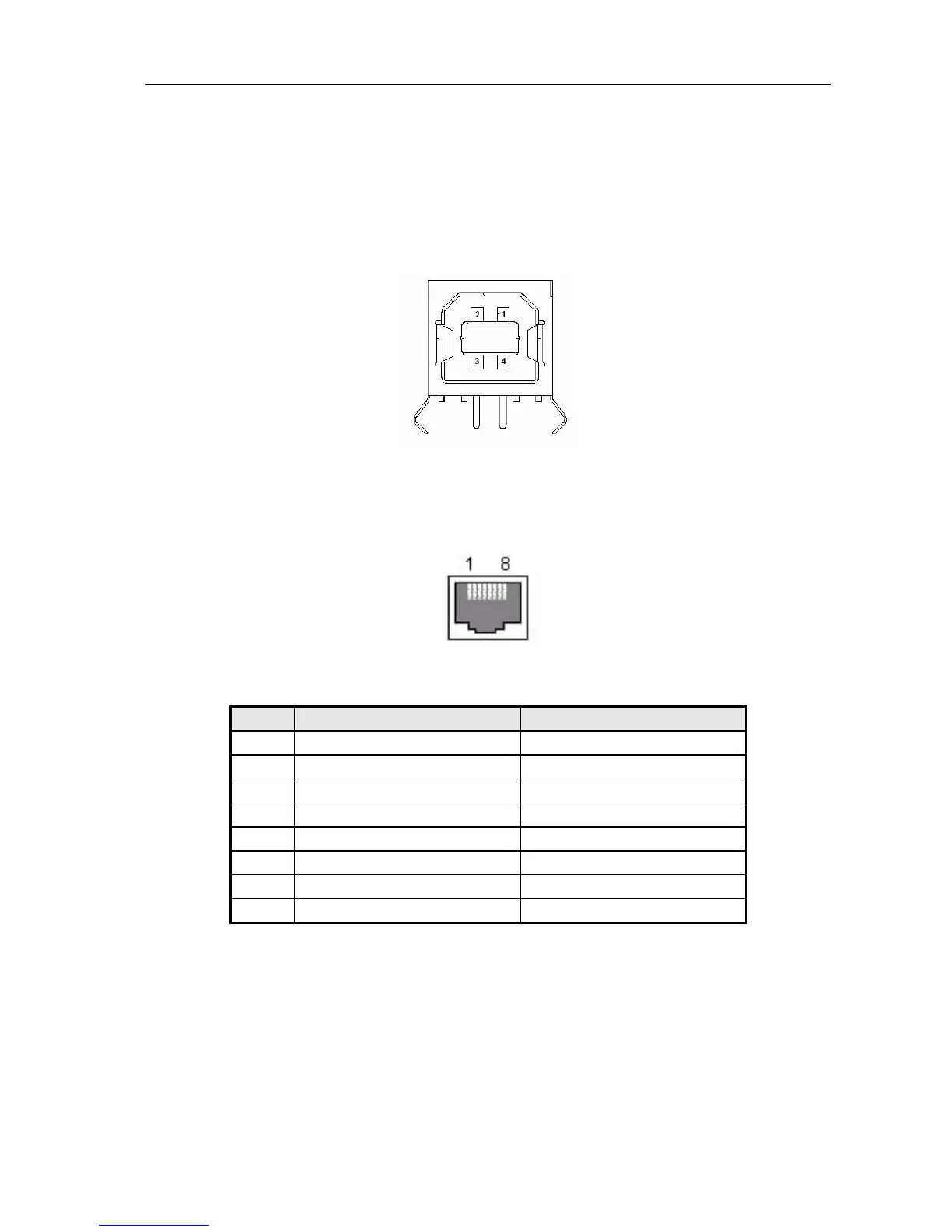

Figure M.1 USB “B” type connector
6.5 Ethernet Interface
The parameters of Ethernet interface socket match 10BASE-T standard of IEEE802.3.
Interface module socket
Pin No. Signal name Explanation
1 TX+ Data sending+
2 TX- Data sending-
3 RX+ Data reception+
4 NC Reserve
5 NC Reserve
6 RX- Data reception-
7 NC Reserve
8 NC Reserve
- 17 -
