MODULYS GP Green Power 2.0 range from 400 to 600 kVA - Ref.: IOMMODGPXX07-EN 00
7.1-1

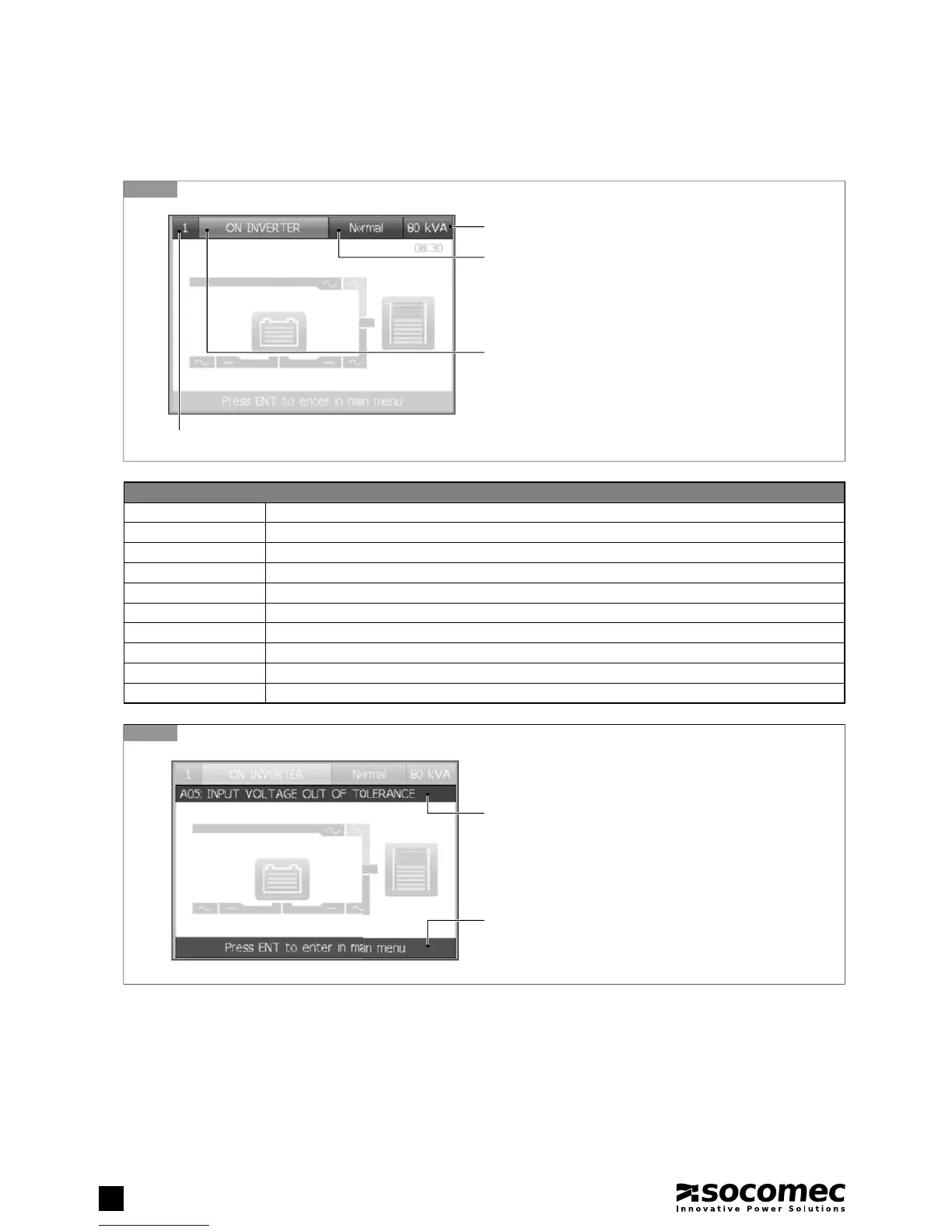

Status bar
7.1-2
Alerts area and Message area
7. MENU
7.1. DISPLAY OVERVIEW
UPS Rated Power (kVA)
Unit panel reference
Operating modes:
Normal (Normal mode), Service (Maintenance Mode),
Isolated (output breaker/relays open), eco auto (Eco mode),
eco (Eco mode command executed), Standby (stand-by
command executed), e Saver (Energy-Saver Mode)
Unit status:
• Displayed messages: UPS STARTING, UPS STOPPING, ON
MAINT. BYPASS, IMMINENT STOP, ON BATTERY, BATTERY
TEST, ON INVERTER, ON AUTO BYPASS, UNIT AVAILABLE,
STANDBY, LOAD OFF.
Alerts area
Present when an alert is active.
Enter ALARMS menu to display the complete alerts list.
Status bar color
Flashing green/yellow/red no information available
Green load supplied
Flashing green
start procedure in progress/battery test in progress
Yellow on battery/forced on bypass (with eco mode o )/maintenance alert/redundancy lost
Flashing yellow
bypass procedure in progress/maintenance period expired/maintenance mode/bypass mode with an alert present
Red load not supplied
Flashing red stop procedure in progress/output supply switch-o is imminent
Flashing yellow/red load supplied but no protected
Flashing green/yellow maintenance alert/an alert is present with load supplied by the inverter
Grey (o ) inactive UPS
Message area
Always present, displays a help message to guide the user
through the display functions.
