socomec MODULYS GP User Manual

6
MODULYS GP Green Power 2.0 range from 400 to 600 kVA - Ref.: IOMMODGPXX07-EN 00

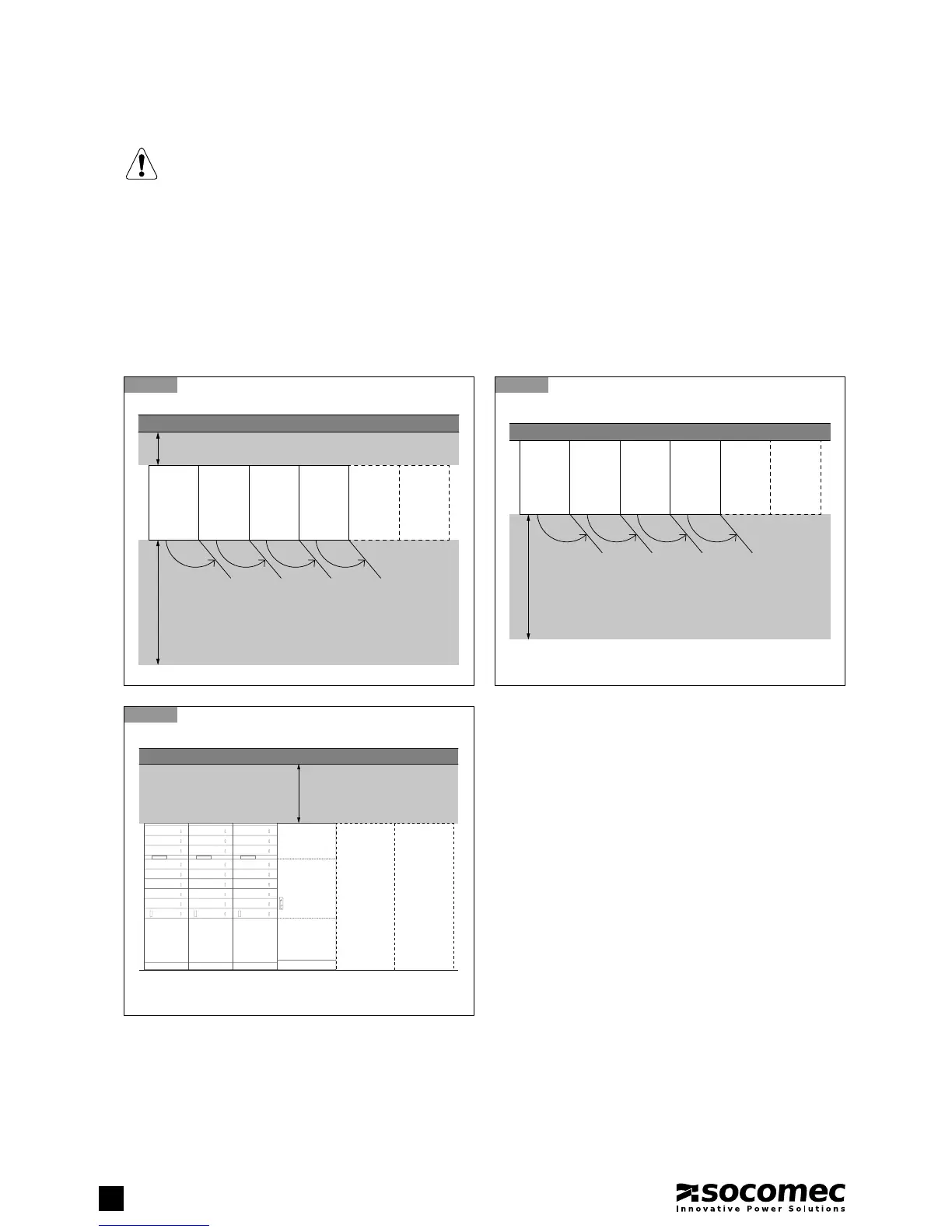

2. ENVIRONMENTAL REQUIREMENTS AND HANDLING
2.1-1
Top view: rear air outlet
2.1-3
Front view: rear or top air outlet
NOTE!
Before carrying out any operations on the unit read the Safety standards chapter carefully.
2.1. ENVIRONMENTAL REQUIREMENTS
The room must be:
• of a suitable size
• free from conductive, inflammable and corrosive items;
• not exposed directly to sunlight.
The floor must support the weight of the unit and guarantee its stability. The unit is designed for indoor installation only.
ROOM POSITIONING
2.1-2
Top view: top air outlet
(2)
(1). Unit present in 600 kVA confi guration.
(2). This confi guration is possible only with top air-exhaust option. See standard features and options chapter.
BATTERY
CABINET
BATTERY
CABINET
UNIT 1
(1)
UNIT 2 UNIT 3
COUPLING
CABINET
≥ 1,5 m ≥ 40 cm
130°130°130° 120°
doordoor doordoor
free area
free area
UNIT 1
(1)
UNIT 2 UNIT 3
COUPLING
CABINET
≥ 1,5 m
130°130°130° 120°
doordoor doordoor
free area
≥ 80 cm
UNIT 1
(1)
UNIT 2 UNIT 3
COUPLING
CABINET
BATTERY
CABINET
BATTERY
CABINET
BATTERY
CABINET
BATTERY
CABINET
free area
