54
MODULYS GP Green Power 2.0 range from 400 to 600 kVA - Ref.: IOMMODGPXX07-EN 00
7.4-2
System view
7. MENU
7.4. SPECIAL PARALLEL CONFIGURATION FEATURES
Intelligent communication module (ICM)
Intelligent Communication Module (ICM) allows the hierarchical supervision both of my Unit and the whole System.
In the UPS parallel configuration, an additional navigation bar is displayed on the mimic panel page, where all connected Units status
appear.
Press UP/DOWN keys to switch between SYSTEM and my UNIT view.
The selected view is shown on the upper left corner: SYS for SYSTEM and 1/2/3 for my UNIT.

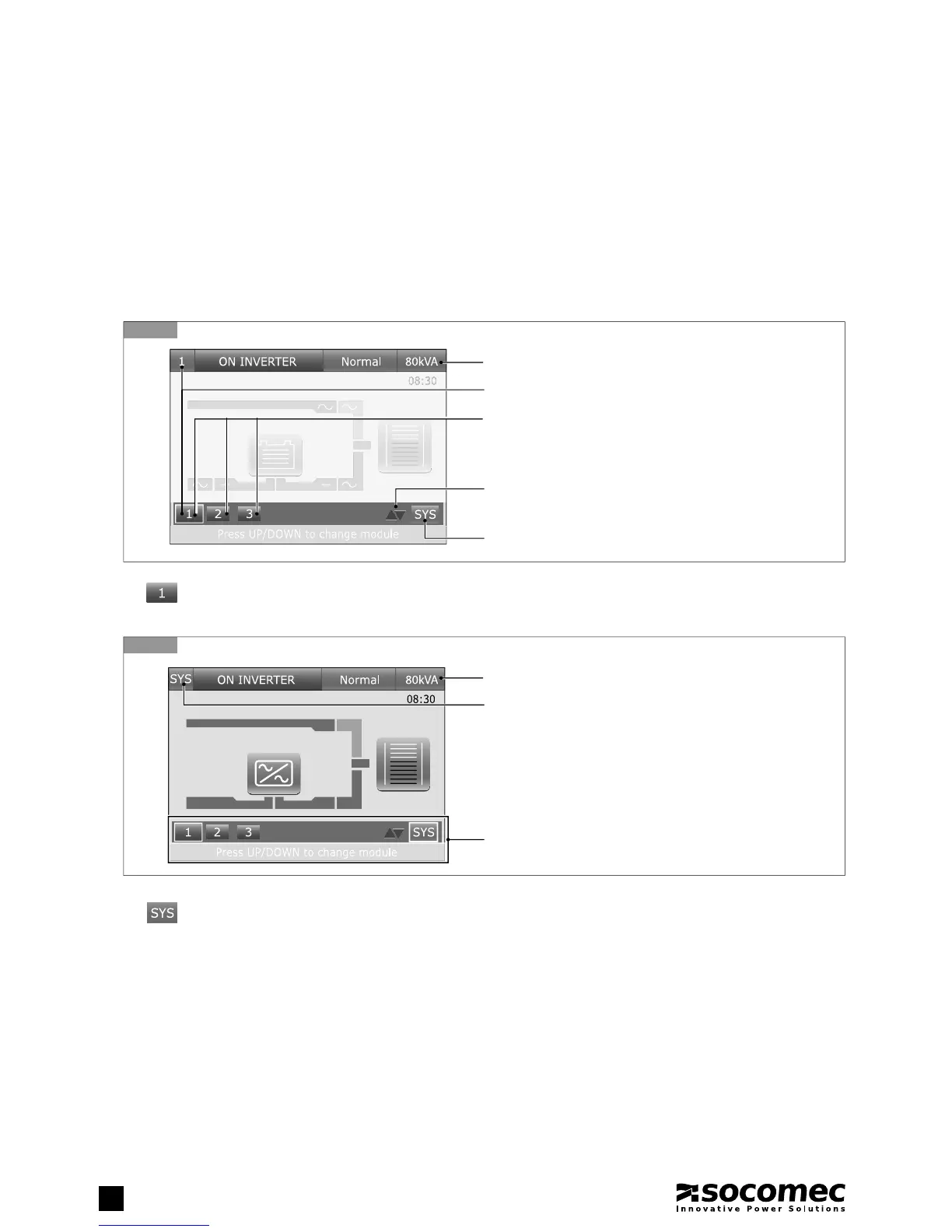

7.4-1
Unit view
Use the UP/DOWN keys to select di erent
Unit or System mimic panels
SYSTEM view
Unit Actual Load Power
UNIT number selected
Units Connected in parallel
Icon colours: same as top bar
SYSTEM view selected
Parallel bar
The symbol (number surrounded by white edge) indicates the Unit number of the UPS upon which the display is fitted (the display
is fitted on UPS #1 in this example).
Unit Actual Load Power
The symbol (label surrounded by white board) indicates the System view which the display is fitted.
Press ENTER to show the current menu list.
Note: all the other icons have the same meaning as described starting from chapter 7.1 but at SYSTEM level.
