MODULYS GP Green Power 2.0 range from 400 to 600 kVA - Ref.: IOMMODGPXX07-EN 00
2.1-4

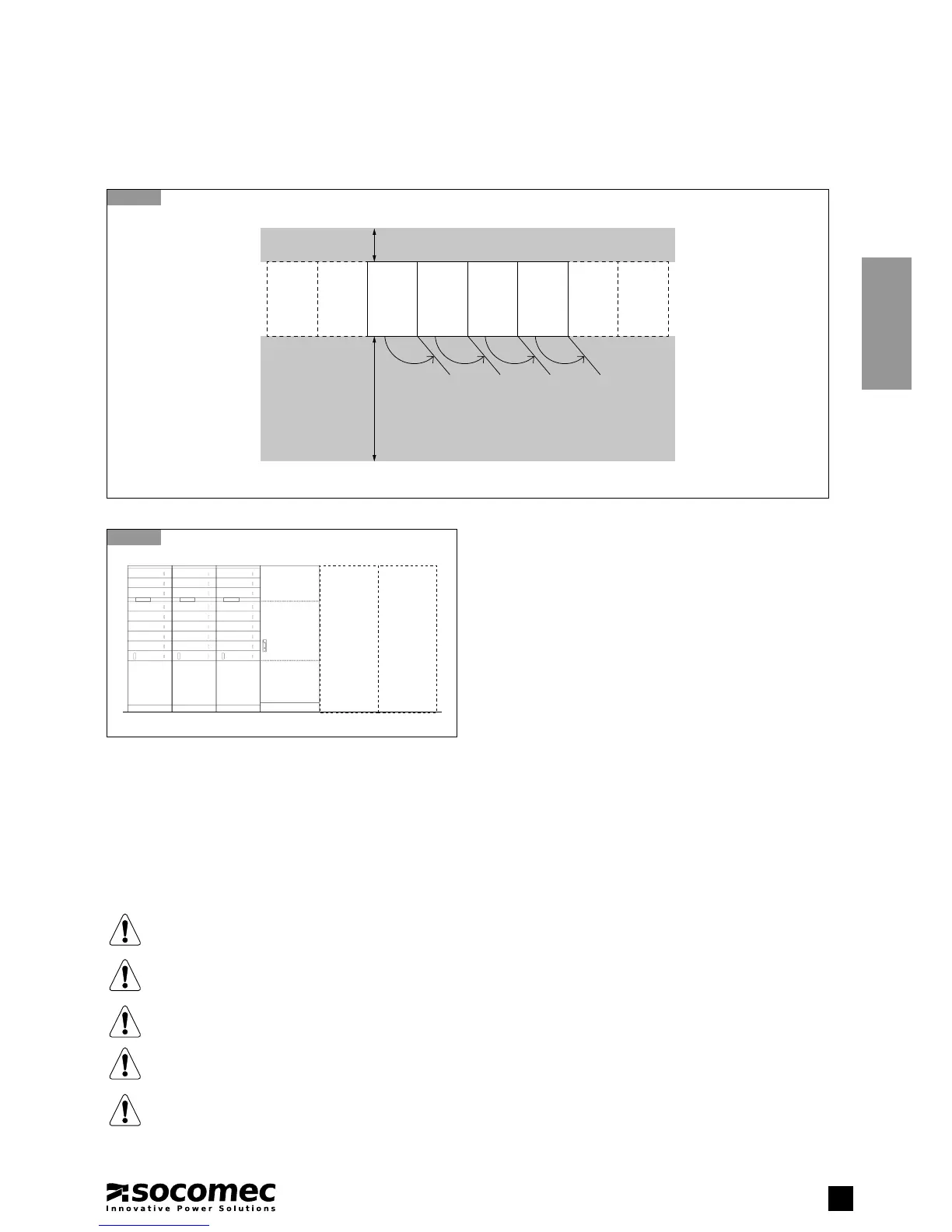

Top view
2.1-5
Front view
IN-ROW CONFIGURATION
2. ENVIRONMENTAL REQUIREMENTS AND HANDLING
UNIT 1
(1)
UNIT 2 UNIT 3
COUPLING
CABINET
SERVER
OR OTHER
CABINET
SERVER
OR OTHER
CABINET
UNIT 1
(1)
UNIT 2 UNIT 3
COUPLING
CABINET
COUPLING
CABINET
≥ 1,5 m
≥ 40 cm
130°130°130° 120°
SERVER
OR OTHER
CABINET
SERVER
OR OTHER
CABINET
SERVER
OR OTHER
CABINET
SERVER
OR OTHER
CABINET
free area
free area
doordoor doordoor
(1). Unit present in 600 kVA confi guration.
2.2. HANDLING
• The packaging guarantees the stability of the unit during shipping and physical transfer.
• The unit must remain in a vertical position during all shipping and handling operations.
• Ensure that the floor is strong enough to support the weight of the unit.
• Carry the packaged unit as close as possible to the installation site.
WARNING! HEAVY WEIGHT!
Move the unit using a fork lift truck taking the utmost caution at all times.
The unit MUST be handled by at least two people. The people MUST take position at the sides of the UPS with
respect to the direction of movement.
Do not move the unit by putting pressure on the front door.
When moving the unit on even slightly sloping surfaces, use the locking equipment and braking devices to ensure
that the unit does not fall over.
WARNING!
The following instructions must be carried out prior to moving the unit (after initial positioning).
Failure to heed this warning could result in the unit falling over, equipment damage, injury and even death.
