socomec MODULYS GP - Mains and Auxiliary Mains Connected Separately

38
MODULYS GP Green Power 2.0 range from 400 to 600 kVA - Ref.: IOMMODGPXX07-EN 00
5.2-1
EXTERNAL
BATTERY
MAINS
SUPPLY
AUX MAINS
SUPPLY OUTPUT
PROTECTIVE
EARTH TERMINAL

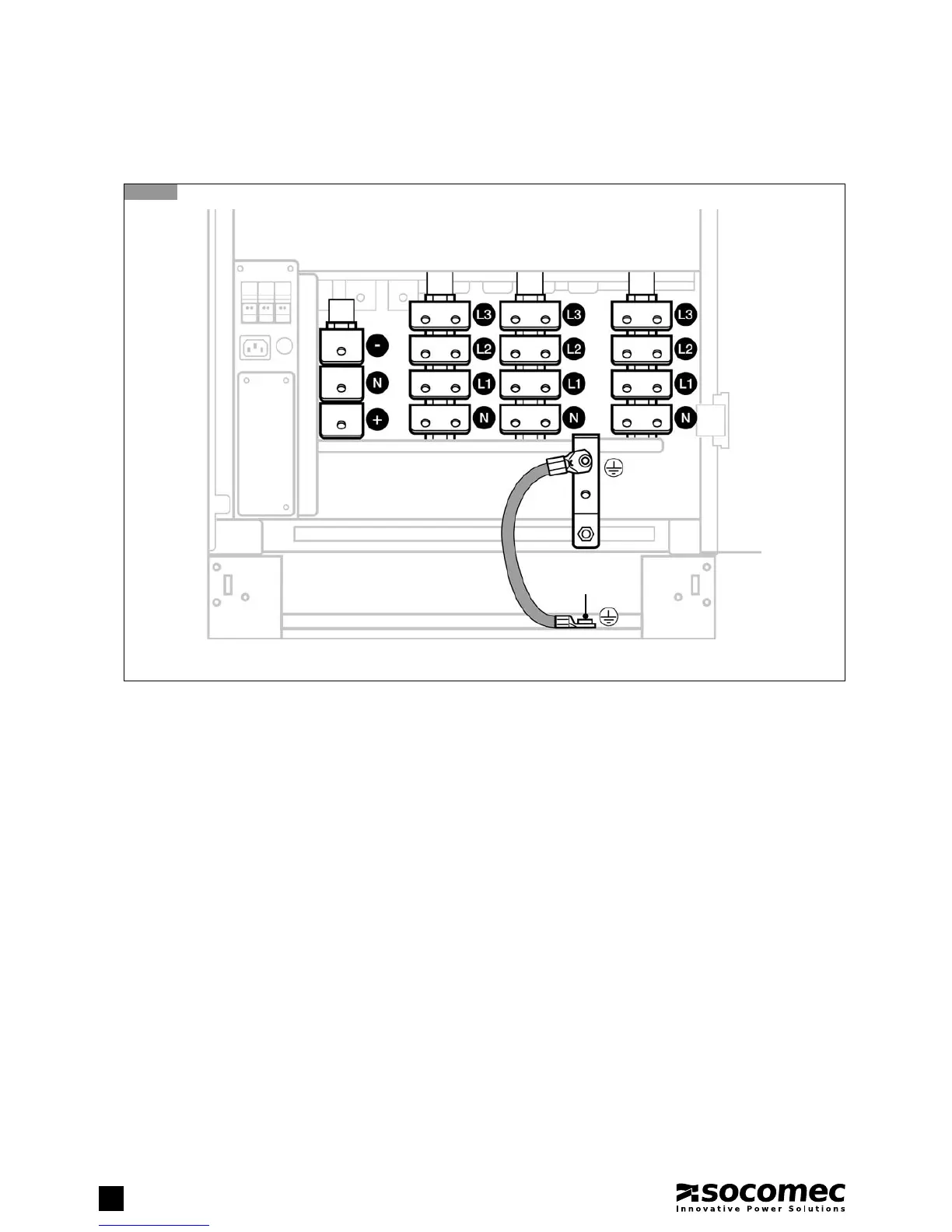

5.2. MAINS AND AUXILIARY MAINS CONNECTED SEPARATELY
5. CONNECTIONS
X20 X10 X40 X50
Internal base plate
ground connection
