socomec MODULYS GP User Manual

61
MODULYS GP Green Power 2.0 range from 400 to 600 kVA - Ref.: IOMMODGPXX07-EN 00
ENGLISH
10. STANDARD FEATURES AND OPTIONS
Features Type Availability
ADC+SL card Communication Available as option
Net Vision card Communication Available as option
MODBUS RTU / MODBUS TCP Communication Available as option
Top air exhausted Mechanical Available as option
Top entry cables Mechanical Available as option
Kit cable Electrical Available as option
ADC+SL CARD
The ADC+SL (Advanced Dry Contact + Serial Link) is a slot optional board that provides:
• 4 relays for external device activation (can be set as normally closed or normally open)
• 3 free inputs to report external contacts to UPS
• 1 connector for external temperature sensor
(1)
(optional)
• RS485 insulated serial link providing MODBUS RTU protocol
• 2 leds indicating the board status
The board is plug&play: the UPS is able to recognize its presence and configuration (up to 4 standard operating modes can be
selected using the two jumpers XJ2 and XJ3, refer to the UPS manual for more details) and manages the ADC outputs and the
inputs accordingly. It’s possible to create a custom operation mode through XpertSoft tool.

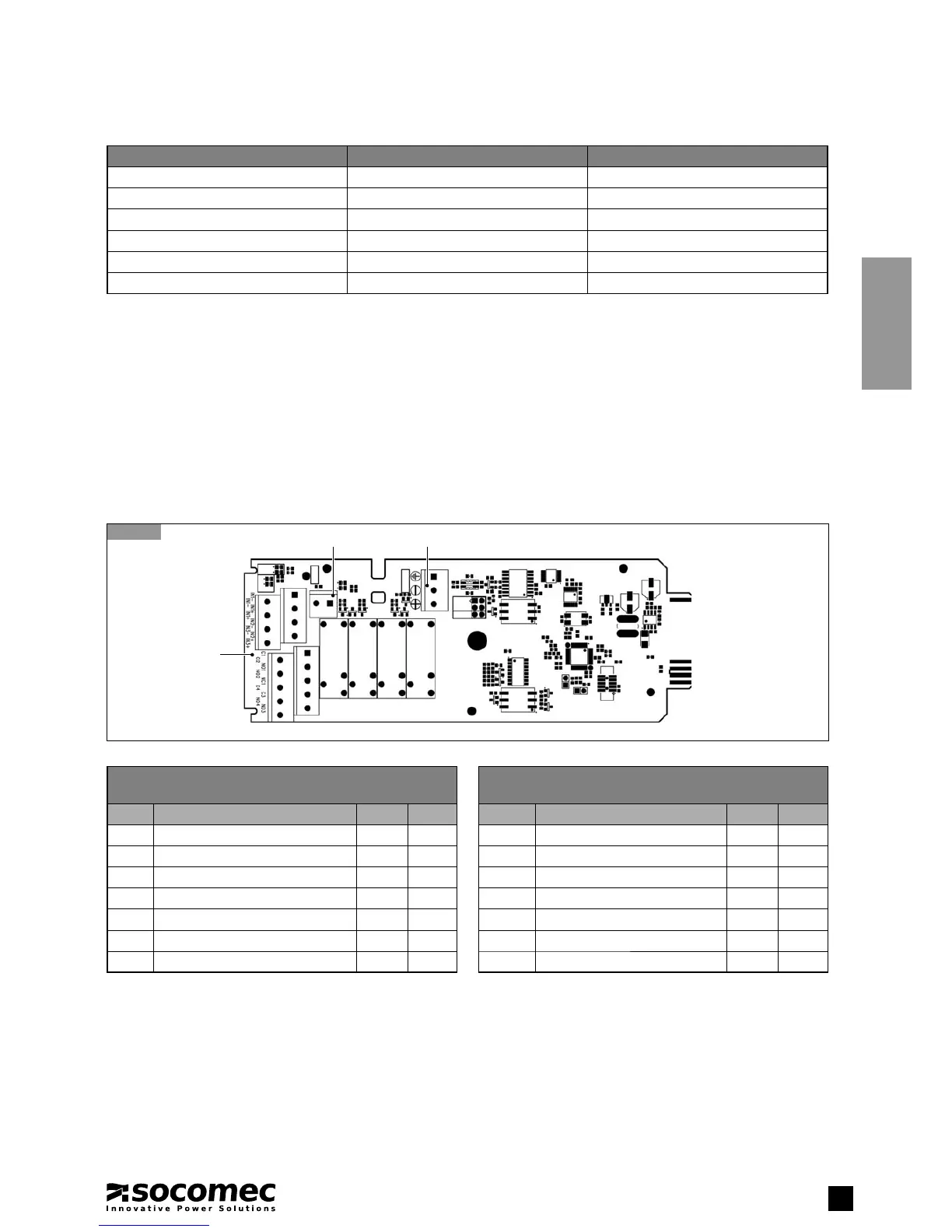

10-1
Dry contact
NTC sensor RS485
OPTIONS SUPERVISOR confi guration
XJ2: ON - XJ3: OFF
IN/OUT Description Filter (s) Status
IN1 UPS Power O 1 NO
IN2 Fan Failure 10 NO
IN3 Battery disconnected 10 NC
OUT1 General Alarm 10 NO/NC
OUT2 Battery Discharging 30 NO
OUT3 Redundancy lost 10 NO
OUT4
Battery disconnected 1NO
STANDARD confi guration (default)
XJ2: OFF - XJ3: OFF
IN/OUT Description Filter (s) Status
IN1 UPS Power O 1 NO
IN2 Supply from GenSet 1 NC
IN3 Insulation Fault 10 NC
OUT1 General Alarm 10 NO/NC
OUT2 Battery Discharging 30 NO
OUT3
Battery Low / Imminent UPS stop alarm 10 NO
OUT4 Load on Bypass 10 NO
