CONFIGURE THE KART ACCORDING TO THE GUIDE INSTRUCTIONS

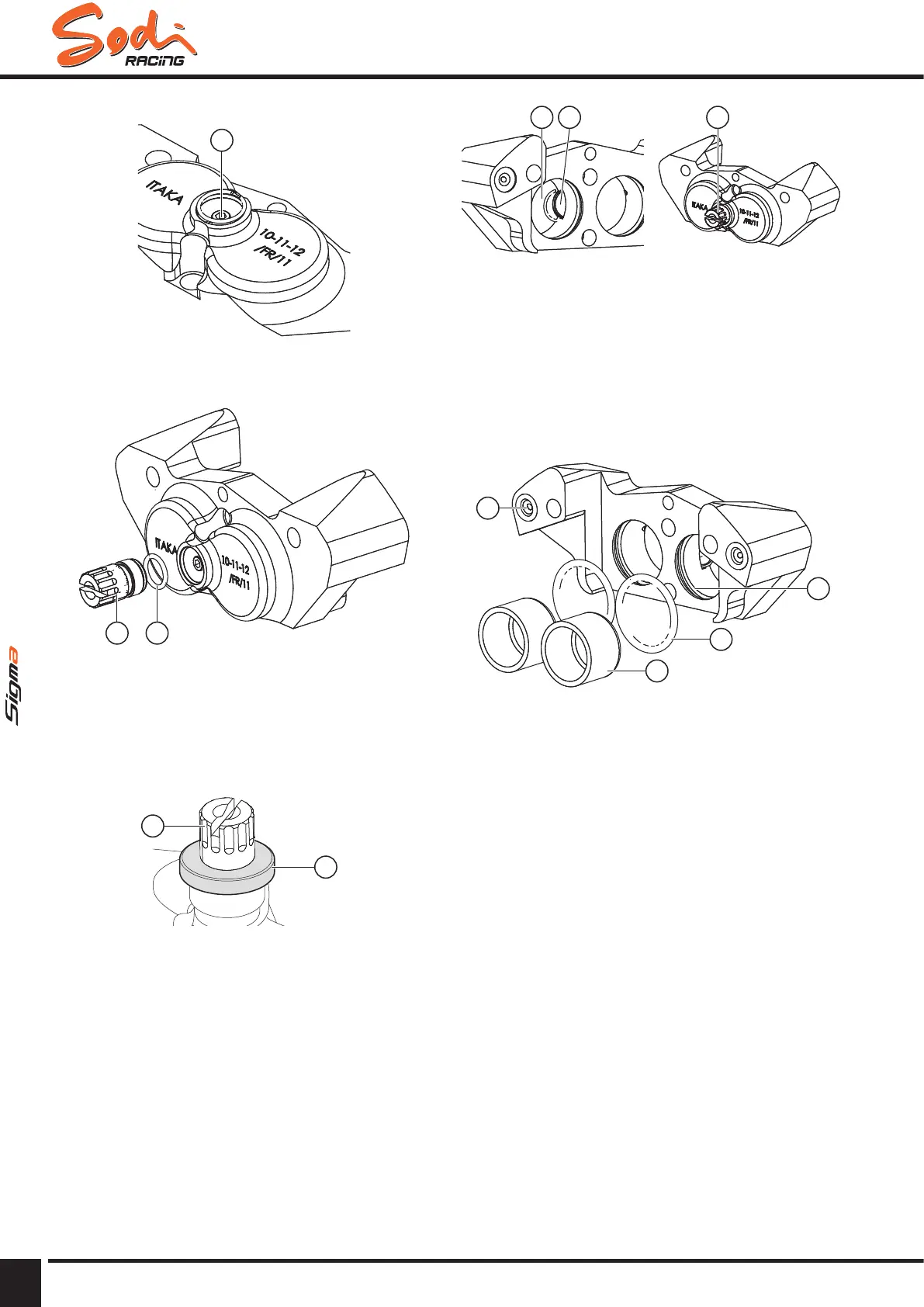

Reassembly
12
Legend
12 Clip
● Place a new piston stop clip (12) in position.
13 14
Legend
13 Piston stop
14 O-ring
● Apply PFG110 grease to a new O-ring (14).
● Place the O-ring (14) in the piston stop groove (13).
● Apply PFG110 grease to the O-ring (14) and the
piston stop (13).
15
13
Legend
13 Piston stop
15 Sodikart tools
● Push the piston stop (13) into the tool (15), taking
care not to damage the O-ring.
● Place the piston stop (13) and the tool (15) on the
half calliper.
● Fully tighten the piston stop (13) on the half-calliper
using a screwdriver, and then remove the tool (15).
12 1313
Legend
12 Clip
13 Piston stop
● Place the piston stop clip (12) in the groove of the
piston stop (13).
● Check that the piston stop clip (12) is correctly
clipped in the groove of the piston stop (13).
● IMPORTANT: To ensure that the clip is positioned
on the piston stop, loosen the stop; it should not
leave the calliper body.
9
11
16
10
Legend
9 O-ring
10 Piston
11 Gasket
16 Groove
● Apply PFG110 grease to the O-rings (11).
● Check that the bases of the grooves (16) are clean.
● Place the O-rings (11) in position in the grooves
(16).
● Place the pistons (10) in position.
● Apply the same procedure for the second half-
calliper.
● Apply PFG110 grease to the O-rings (9).
● Place the O-rings (9) in position, and then connect
the two half-callipers.
