This document can not be reproduced or released without the Sodikart authorization.
MAN.SIG.EN.02
04/2014
36
CONFIGURE THE KART ACCORDING TO THE GUIDE INSTRUCTIONS

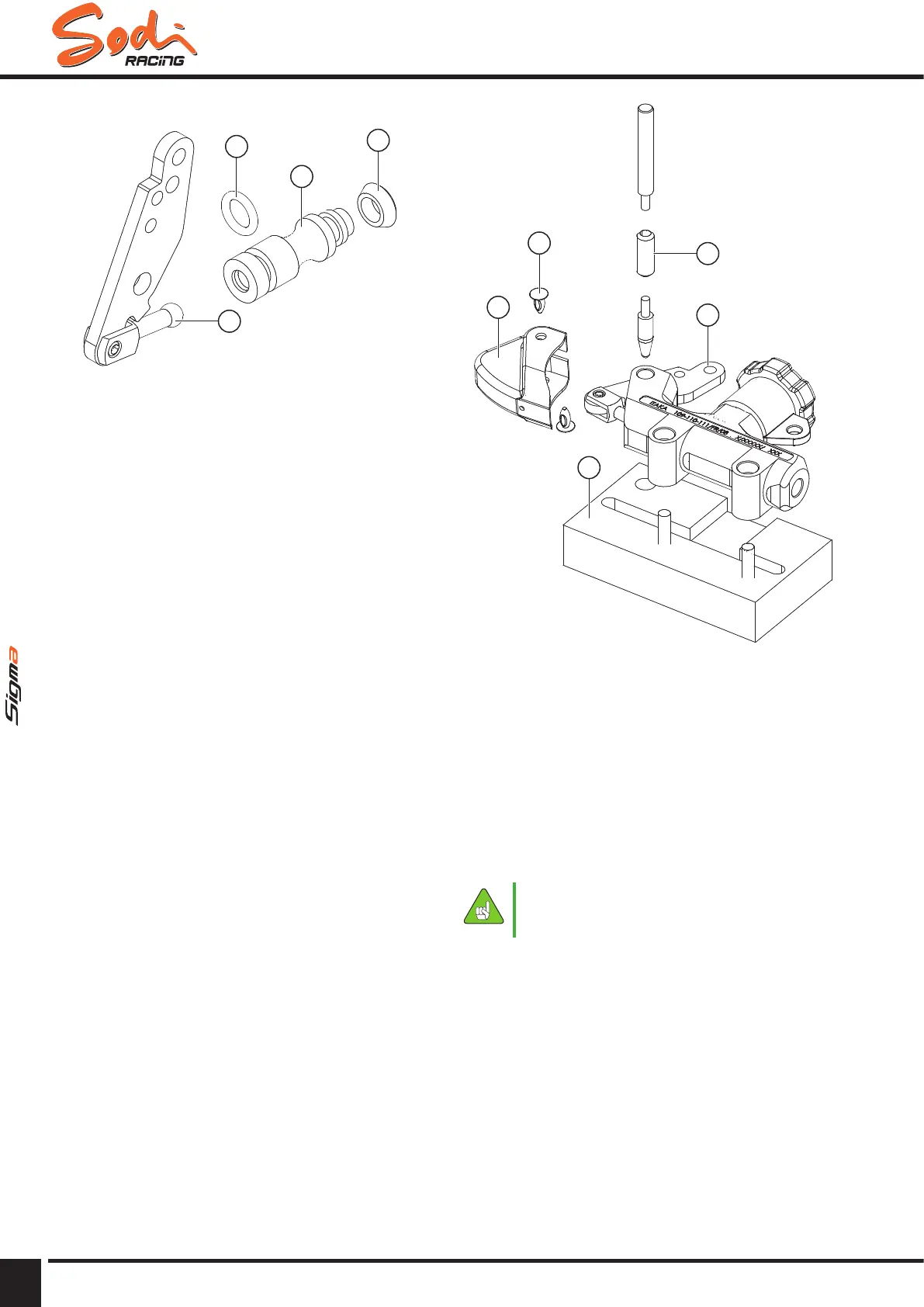

Reassembly
7
8
6
5
Legend
5 Yoke
6 Piston
7 O-ring
8 Gasket
● Apply PFG110 grease to the O-ring (7) and the
gasket (8).
● Place the O-ring (7) in the piston groove (6).
● Install the gasket (8) on the piston (6).
● Apply PFG110 grease to the O-ring (7) the gasket
(8), and the piston (6).
● Fit the yoke (5) to the piston (6).
1
9
4
2
3
Legend
1 Pressure pin
2 Dust cover
3 Pin
4 Piston lever
9 Sodikart tools
● Reinstall the piston lever assembly (4) in the master
cylinder.
● Place the master cylinder on the tool (9) and
reinstall the pin (3).
● Reinstall the dust cover (2) and pressure pins (1) on
the master cylinder.
●● Always●use●new●seals.
●● Replace●any●defective●parts,●using●only●
original●SODIKART●parts.
