HYD 5/6/8/10/15/20KTL-3PH USER MANUAL
3.5.5 System with multiple inverters (5–120 kW)
Up to 6 inverters can be connected in parallel, to the grid and
EPS connections, resulting in an EPS output of up to 120 kVA.

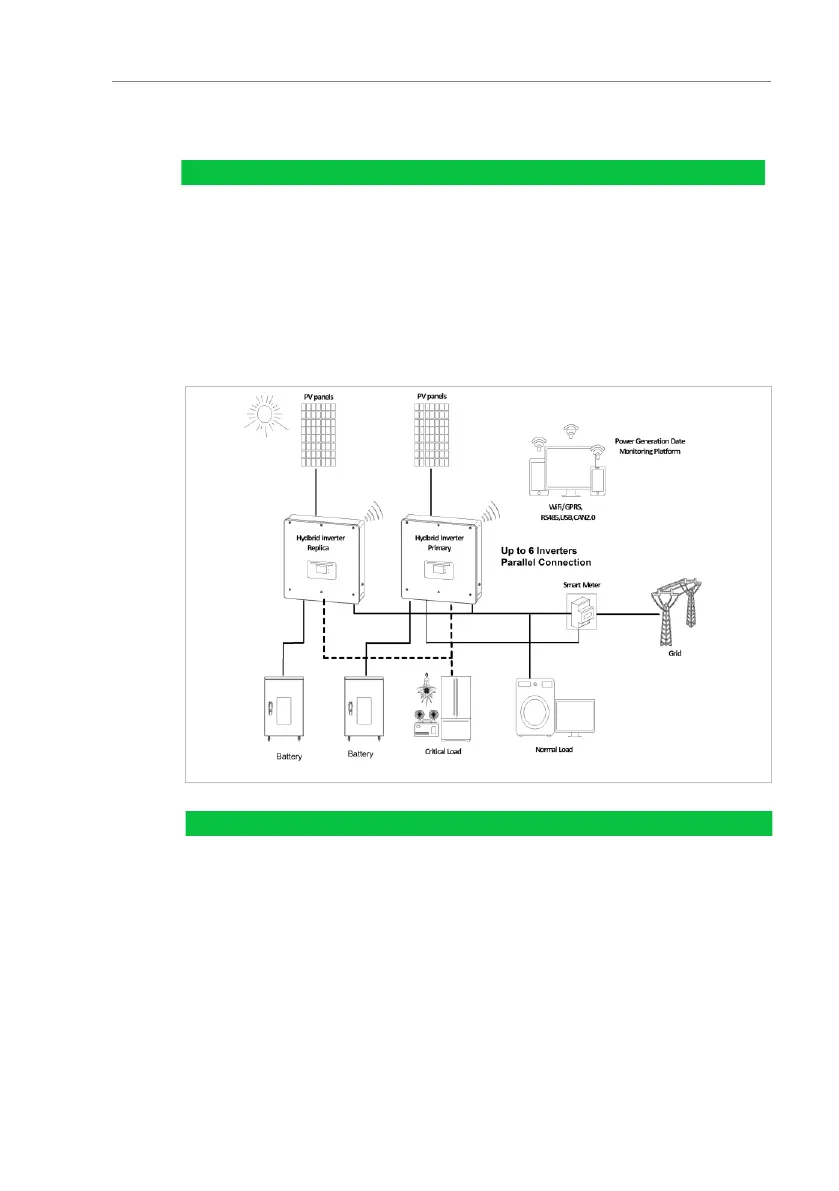

Figure. 3-9 System with multiple inverter
Multiple inverters connected in parallel shall be of the
same power model with the same power and battery
configuration.
The smart meter or CTs are connected to the Master
inverter. Control of all inverters takes place via the link
cable.
For the parallel switching of several devices, it is
recommended to use a joint AC load break switch for
the connected loads at the LOAD connection.
Off-grid carrying capacity
In off-grid mode, the inverter's ability to support
capacitive and inductive loads is 1/3 of the single-
phase rated power.
