Solid State Logic
Drg. No:
22/03/06
AWS 900+
SD/GC
Connector Panel
© Solid State Logic
657X2 657X1 656X2 656X1 655X2 655X1 654 653 652 651
EXT A3 EXT A4
EXT A1 EXT A2
Send - Insert - Rtn
Meter Out Ext B 1-4
Mini
AR
Mini
AL
Listen
Mic In
T/Back
Mic In
Listen
Mic Out
T/Back
Mic Out
Desk Mic
Gain
Ext TB
Mic Gain
Osc
Out
Mini
BR
Mini
BL
MON B MON A
Send
Left
Return
Left
Send
Right
Return
Right
Left
Out
Right
Out
Left
Out
Right
Out
Send
Left
Return
Left
Send
Right
Return
Right
MIX OUTPUTREC OUTPUT
Key
In
Echo
Rtn 1L
Echo
Rtn 1R
FX1
Out
FB AL
Out
FB AR
Out
Key
In
Echo
Rtn 2L
Echo
Rtn 2R
FX2
Out
FB BL
Out
FB BR
Out
Echo
Rtn 3L
Echo
Rtn 3R
FX3
Out
Echo
Rtn 4L
Echo
Rtn 4R
FX4
Out
8 Track
Bus Out
Cue/FX
Bus Out
641
DIR
LINE
MIC
RTN
SEND
INST
1.4
TRS Jack.
Instrument and Footswitch inputs Tip = Hot, Sleeve = screen
All other jacks Tip = Hot, Ring = Cold, Sleeve = screen
XLR Male
Pin 2 = Hot
Pin 3 = Cold
Pin 1 = Screen
XLR Female
Pin 2 = Hot
Pin 3 = Cold
Pin 1 = Screen
Red Light/Talkback/GPI/O
Connector Type: 25-way D-type female
Pin Ribbon pin Description Notes
1 5 Red Light Relay contact A Normally open
14 6 Red Light Relay contact B Follows Red Light switch
270V
15 8 GP Input 1 (not used)
3 9 GP Input 2 (not used)
16 10 Monitor Cut Forces Cut when active
4 11 Monitor Dim Forces Dim when active
17 12 Slate switch
5 13 Listen switch
18 14 Red Light switch
6 15 TB All switch
19 16 FB A switch
7 17 FB B switch
20 18 Ext TB switch
819+4V Max current 200mA(fused)
21 20 Slate Tally
9 21 Listen Tally
22 22 Red Light Tally
10 23 TB All Tally
23 24 FB A Tally
11 25 FB B Tally
24 26 Ext TB Tally
12 27 n/c
25 28 n/c
13 29 n/c
All inputs are active low (ie connect to 0V to activate). Inputs are pulled up to +4V via 3K9 resistor
Inputs are diode clamped to 0V and +4V to protect the console circuitry
All tallies are open collector with 47R series resistor.

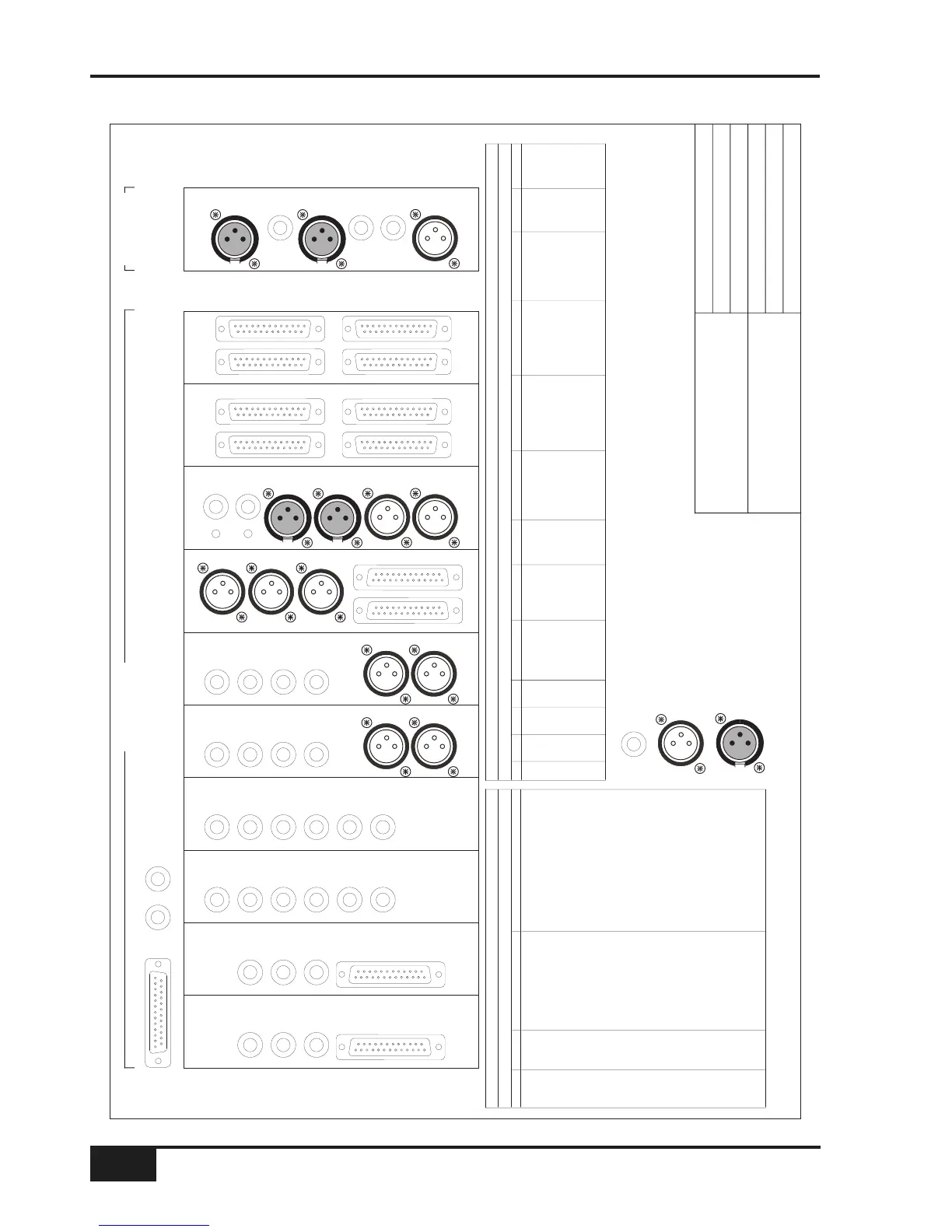

AWS Connector Panel Layout
RED LIGHT/TALKBACK/GPIO
1 - FOOTSWITCH - 2
AWS Audio 25wD pinouts
cct Hot Cold Screen EXT A Inputs 1-4 Meter Out Ext B Inputs Mon Insert Send Mon Insert Return Mon A Mon B 8 Track Out Cue/FX Out
1 24 12 25 Left Left 1 Left Left Left Main Left Alt Left Bus 1 Cue AL
2 10 23 11 Right Right 1 Right Right Right Main Right Alt Right Bus 2 Cue AR
3 21 9 22 Centre Centre 2 Left Centre Centre Main Centre Alt Centre Bus 3 Cue BL
4 7 20 8 LFE LFE 2 Right LFE LFE Main LFE Alt LFE Bus 4 Cue BR
5 18 6 19 Left Surround Left Surround 3 Left Left Surround Left Surround Main Left Surround Alt Left Surround Bus 5 FX1
6 4 17 5 Right Surround Right Surround 3 Right Right Surround Right Surround Main Right Surround Alt Right Surround Bus 6 FX2
7 15 3 16 n/c Solo Left 4 Left Lt to Decoder Lt From Encoder Mini AL Mini BL Bus 7 FX3
8 1 14 2 n/c Solo Right 4 Right Rt to Decoder Rt from Encoder Mini AR Mini BR Bus 8 FX4
CENTRE SECTION CHANNELS 1-24
4 x MIDI IN/THRU/OUT
BEHIND CHANNELS 5-12
Connector Type: 25-way D-type female
Rev:
Date:
Design:
Drawn:
Ref:
To Next Page
