Solid State Logic AWS 900+ User Manual

Signal Processor Routing
In keeping with SSL’s legendary range of large-format consoles, the AWS 900+ provides comprehensive signal
processor routing facilities. Each channel strip has access to up to three separate signal processing devices:
• 4-band parametric equaliser and high pass filter
• Assignable dynamics section comprising a compressor/limiter and expander/gate
• Any device connected the channel insert point

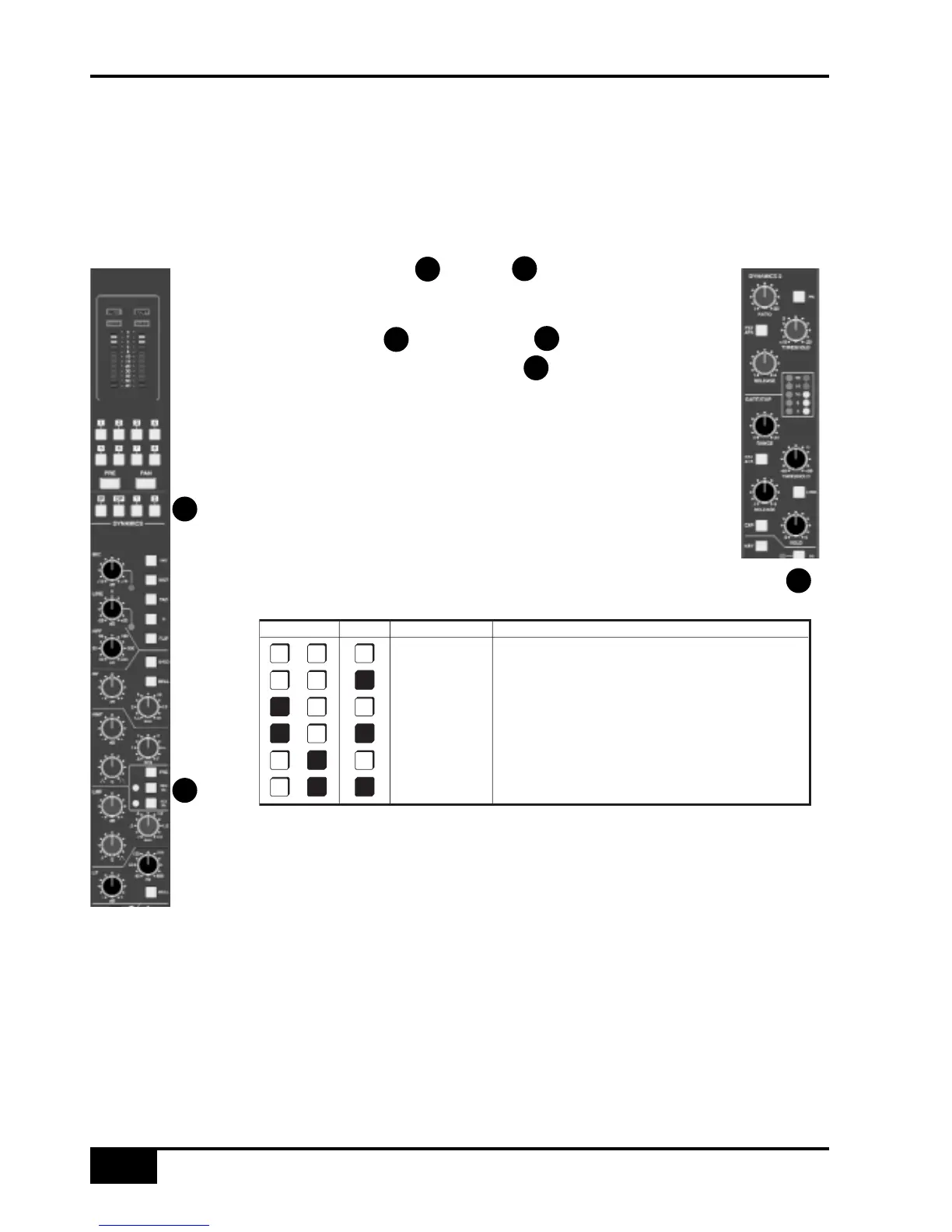

Three buttons – IP, OP, and PRE are used to determine
where each processor will be placed in the signal chain. Three
additional buttons are provided to switch each device into circuit:
EQ IN, INS(ert) IN , and dynamics IN
Two further buttons – Dynamics 1 and 2 are used to select
on one or other of the assignable dynamics sections.
The table below shows the routing possibilities along with some
applications for the insert send/return where it is not needed for
use with an external processor (note that selected buttons are
shown with white text on a black background).
Note that the dynamics processors may be keyed from an external signal.
See page 4-18 for further details.
INSERTDYNAMICS
EQ > DYN > INS
INS > EQ > DYN
DYN > EQ > INS
DYN > INS > EQ
EQ > INS > DYN
INS > EQ > DYN
ADDITIONAL 'NON INSERT' APPLICATIONS
Pre fader send to recorder; external mic pre direct to channel fader
Channel mic pre to recorder; external mic pre to channel processing
Pre fader send to recorder; external mic pre direct to channel fader
Channel mic pre to recorder; external mic pre to channel processing
PROCESS ORDER
IP
IP
IP
IP
IP
IP
OP
OP
OP
OP
OP
OP
PRE
PRE
PRE
PRE
PRE
PRE
Console Operator’s Guide
4-12
AWS 900+ Owner’s Manual
1
2
3
1
1
2
2
3
