MCU Control GuidE
5a-4
AWS 900+ Owner’s Manual
The Logic Template

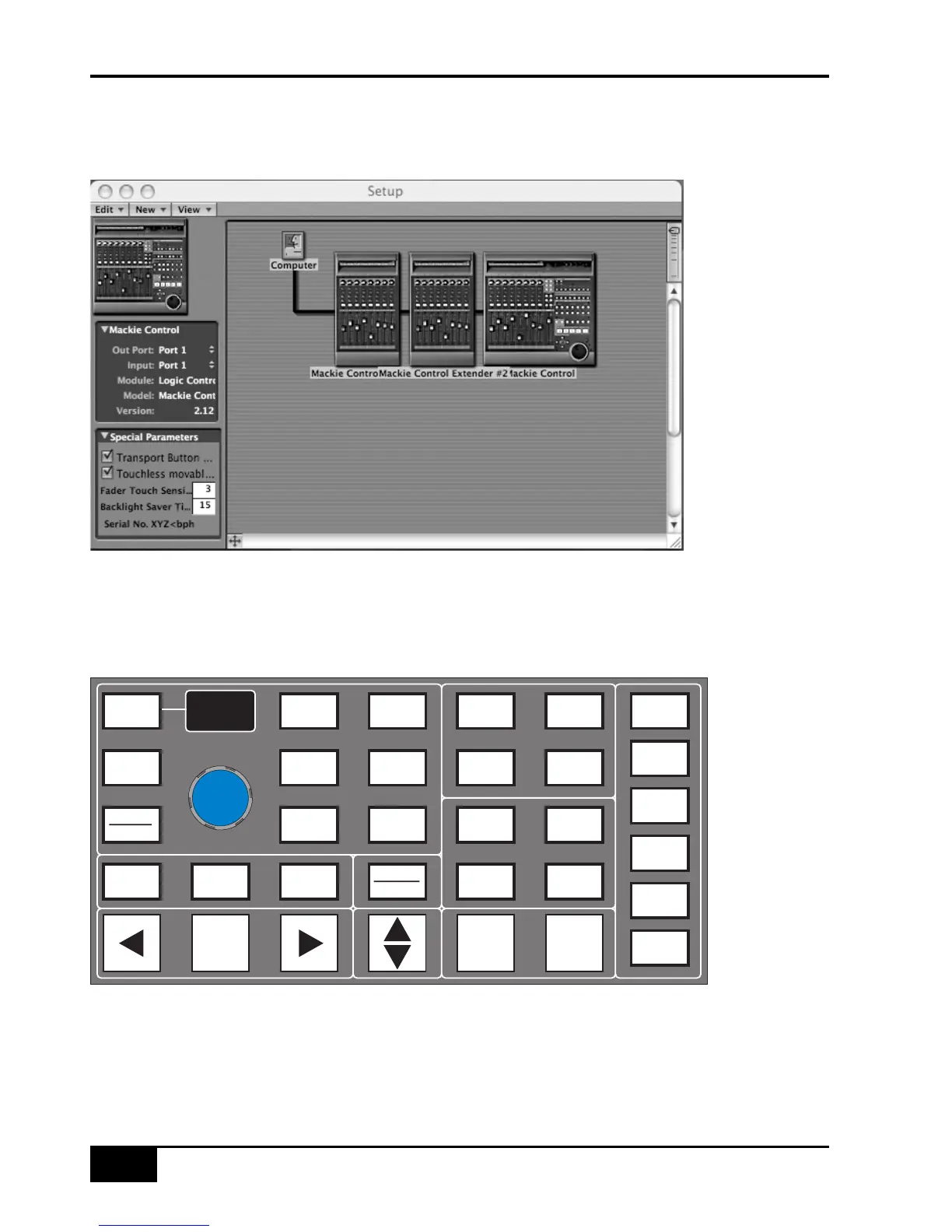

The AWS emulates a Mackie Control plus two Mackie XT fader expanders.The Logic Control Surface set up should
be configured as shown below in the Logic Preferences menu
This layout ensures that when the channel V-Pots are used to select master functions, they will be located next to
the AWS physical master section not at the far end of the console.
AWS Logic Control Key Layout
Major changes compared to the HUI front panel are Automation modes replacing the Screen display select keys
and the inclusion of the MARKER and NUDGE functions. GLOBAL uses the 8x8 matrix keys to select the different
view options. CHANNEL is unchanged and assigns the AWS channel gain element to the D-Pot. The Encoder
switch is used to ‘flip’ parameters on to the fader but the encoder itself has no function. The Display indicates D-
Pot mode with a two-character label. Plug Ins are controlled from the channel D-Pots so there is no longer an ‘EDIT’
select mode for the channel SEL key.
