Connecting a Patchbay

The AWS 900+ may, of course, be fully or partially integrated to an external patchbay. 3rd party options are

available, and SSL can provide patchbay solutions as cost options – contact your local SSL distributor for

further information.

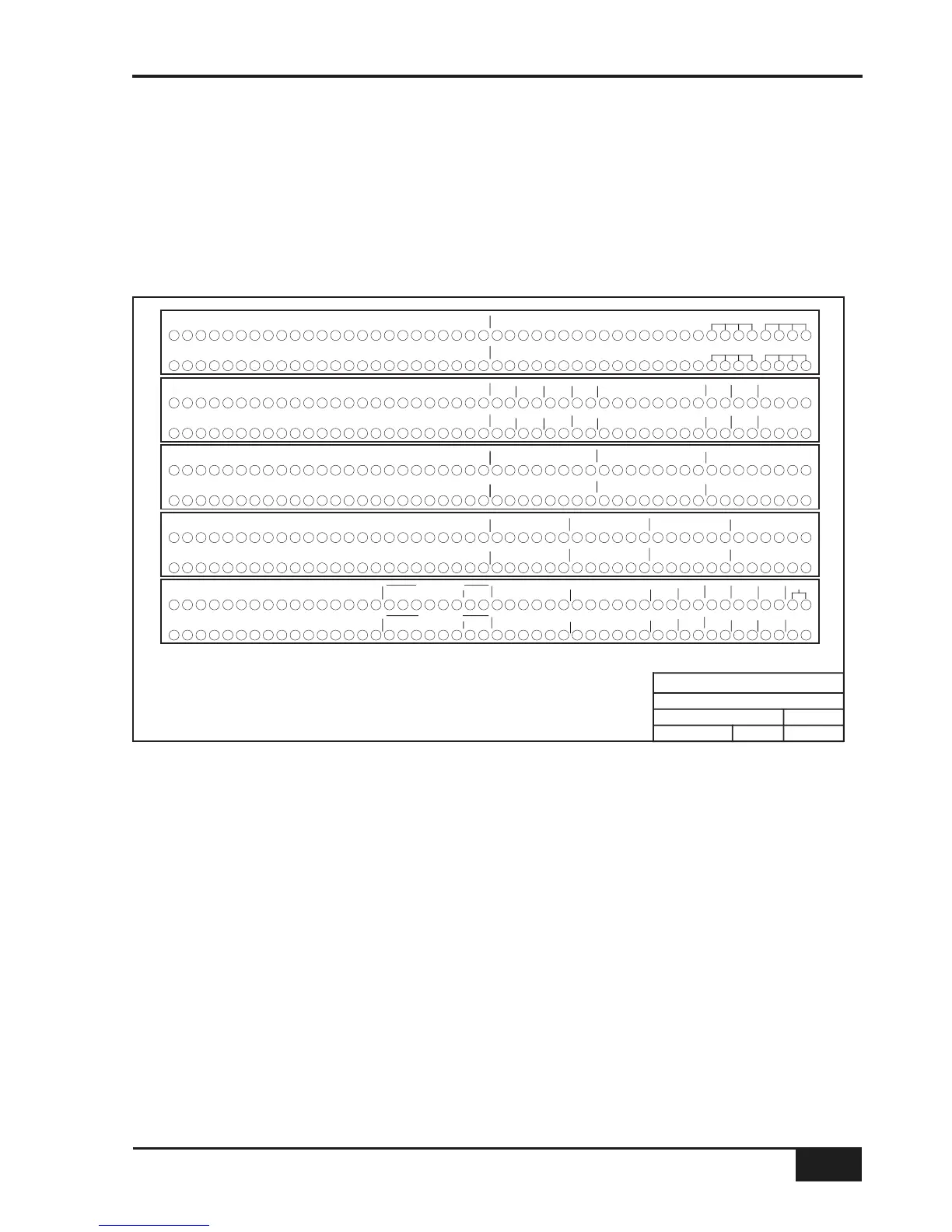

An example patch layout for the centre section and channels is provided below:

When constructing patchbays, the following guidelines may be useful.

Mic Inputs

If Mic inputs are being connected to a patchbay, then the patch jacks should be insulated from the main body of

the patchrow. There are commercially available patchrows that meet this requirement. The ground connection

from each microphone must be taken through the patch jacks to the XLR on the back of the console without

interruption.

Instrument Inputs

It is not recommended that the ‘Instrument’ inputs are broken out to a patchbay. These inputs are unbalanced,

and the cable lengths should be kept at short as possible.

AWS 900+ Owner’s Manual

3-9

Installation and Setup
