Monitoring (Continued)

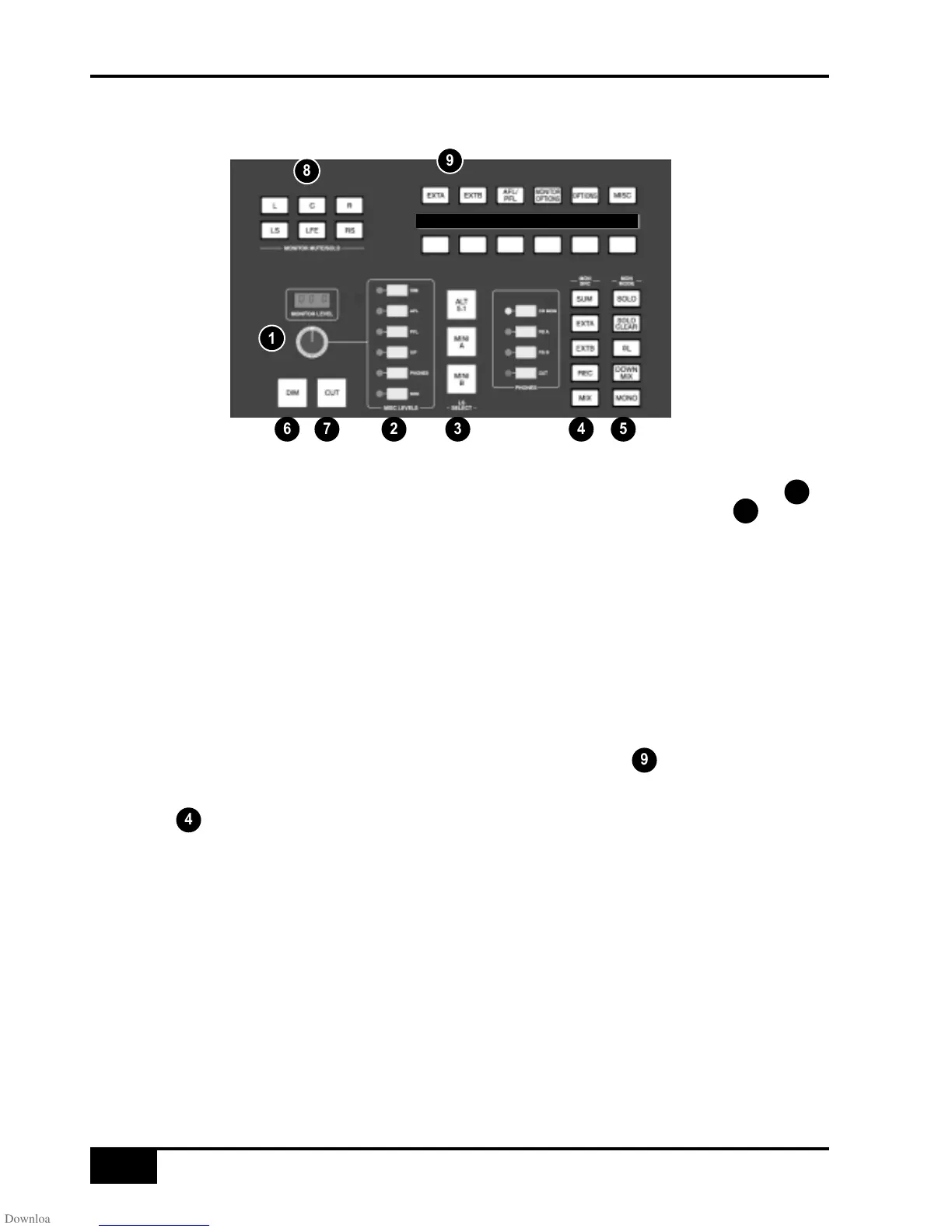

The six main monitor outputs can be muted individually with the L, C, R, LS, RS and LFE (sub) monitor cut buttons .
Note that these can become monitor solo buttons by selecting the SOLO button in the ‘MON MODE’ group .
All the monitor outputs are available for connection to amplifiers via the centre section connector panel. The two
5.1 outputs (Main and Alt) and the two Mini outputs feed two 25-way D-type connectors – ‘MON A’ and ‘MON B’;
the two Mini outputs (Mini A and Mini B) also feed individual XLRs for left and right.
External Source Selectors
Two external monitor source selectors are provided. EXT A has four external 5.1 inputs. These may be fed by
any source of six channels or less. Track busses 1-6 provide a fifth input to EXT A.
EXT B is a 2-channel selector with four stereo inputs. In either case, sources may be summed together; this is
particularly useful for generating complex foldback mixes or when stem mixing, as it allows the recorded stems
to be monitored together with the current mix.
To select an external monitor source, first press either the EXT A or EXT B button , choose a source from
those shown in the display, and press the soft key under that source (or first press the key under SUM to sum
selected sources). Finally, route the external source(s) to the monitors by pressing EXT A or EXT B in the ‘MON
SRC’ group. The LTR selection on EXT B provides monitoring for an encoder’s LtRt output - see below.
Inputs to the external source selectors are connected via 25-way D-types (four for External A, one for External B)
on the connector panel.
Console Operator’s Guide
4-20
AWS 900+ Owner’s Manual
5
8
DVD SCD DAW EXT 1-6 SUM
1
2 43
5
6
8
9
7
4
9
