MCU Control Guide
AWS 900+ Owner’s Manual
5a-13
The AWS Sonar Control screen

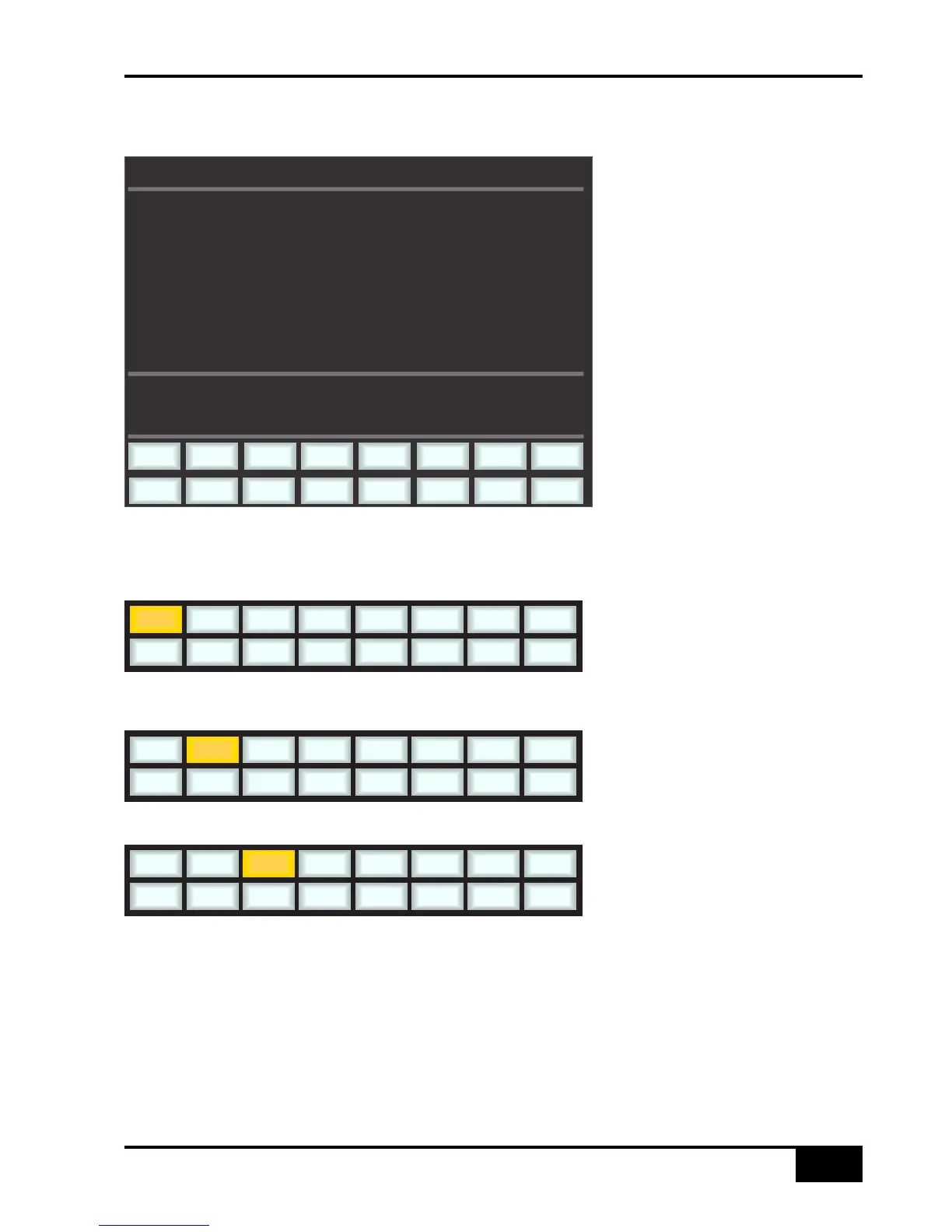

The 8x8 key matrix is used to access three Sonar MCU function groups.
Fkys are the eight functions keys. These are defined in Sonar and also output Edit commands in conjunction with
a Modifier key.
Auto calls up three Automation functions, Snapshot, Disarm and Offset. The main automation Read/Off key is
mapped to a dedicated front panel switch.
Trks bring the four TRACKS function keys on to the bottom row of soft keys.
AUTO
SSL
Fkys
00:00:00:00
Trks
AUTO
F2
Fkys
Trks
F1
F4
F5
SSL
F6
F7
F8F3
AUTO
Darm
Fkys
Trks
Snap
SSL
Ofst
AUTO
NMid
Fkys
Trks
NAud
FitP
SSL
FitA
