37

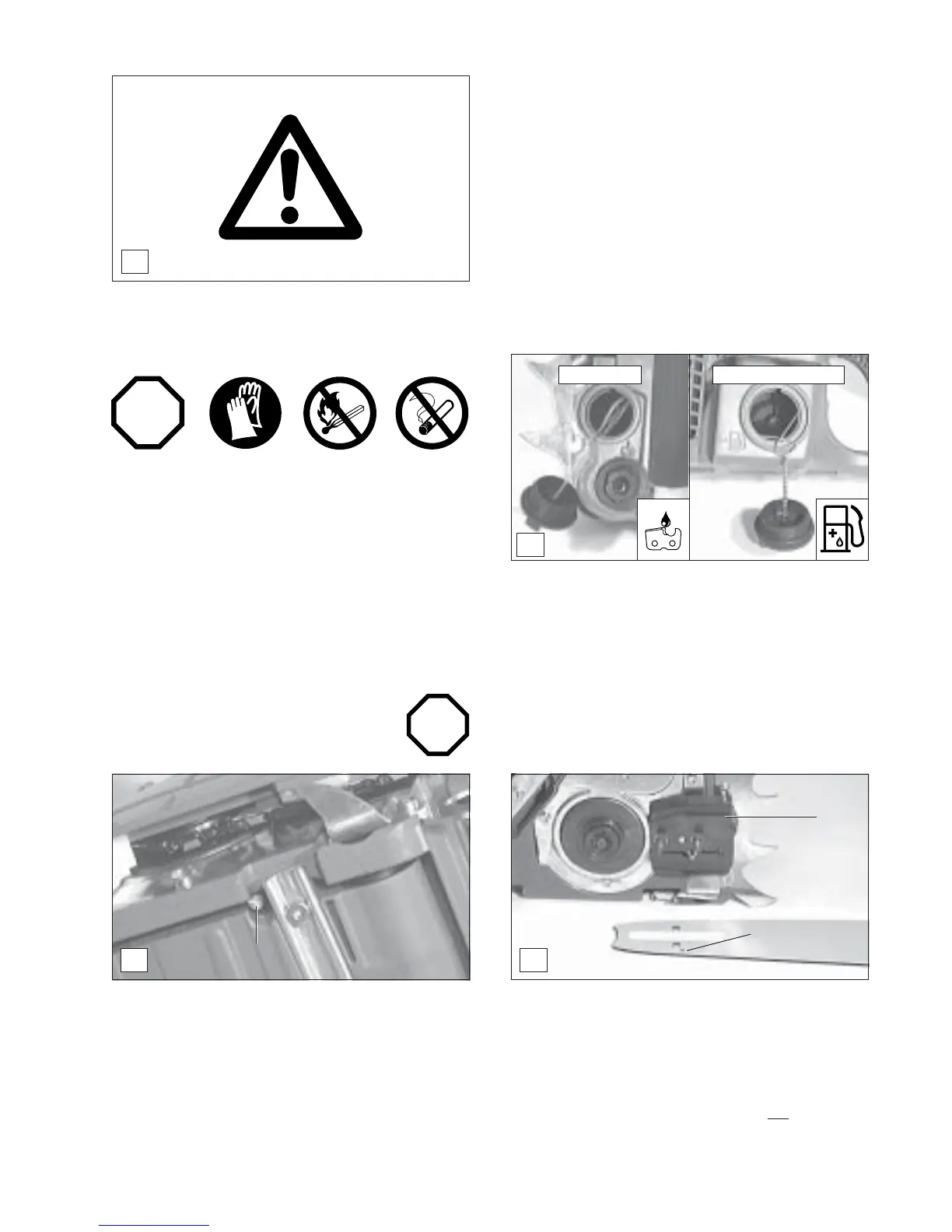

Adjusting the chain lubrication
F
G
2
1
3
AVOID SKIN AND EYE CONTACT
D
Mineral oil products as well as oils degrease your skin. If
your skin comes in contact with these substances repeatedly
and for a longer period of time, it will desiccate. Various
skin deseases may result. In addition, allergic reactions are
known.
Eyes can be irritated by contact with oil. If oil comes into
your eyes, immediately wash them with clear water.
If your eyes are still irritated, see a doctor immediately!
Refuelling
FOLLOW THE SAFETY PRECAUTIONS
Be careful and cautious when handling fuels.
Always turn off the engine before refueling!
- Thoroughly clean the tanks around the screw caps to
prevent dirt from entering the fuel or oil tank.
- Unscrew the cap and fill in fuel or chain oil until it
reaches the bottom edge of the filler socket. Be careful
when refilling. Do not spill fuel or oil.
- Tightly screw on the cap.
Clean screw cap and tank after refuelling.
Lubricating the chain
In order to ensure sufficient lubrication of the chain there
must always be enough oil in the tank. Its contents is
sufficient for approx. 1/2 hour of continuous operation.
While working make sure there is enough chain oil in the
tank. If necessary, add oil. The engine must be switched
off!
chain oil fuel and oil mixture
E
STOP
STOP
The engine must be switched off.
The oil pump can be regulated with the adjusting screw
(F/1). The adjusting screw is mounted on the bottom side of
the casing.
The oil pump has been adjusted to a medium feed quantity
by SOLO.
For changing the feed quantity use the universal wrench
and adjust the adjusting screw (F/1) in the following way:
- turn to the right to reduce the quantity
- turn to the left to increase the quantity.
To guarantee a troublefree operation of the oil pump the
oil guide groove at the crank case (G/2) and the oil inlet
bore in the guide bar (G/3) must be cleaned regularly.
Note: After the saw has been turned off it is normal for
residual chain oil to drip from the oil feed system, the guide
bar and the chain for a time. This does
not constitute a
defect!
Place the saw on a suitable surface.
