Solo 694 - Checking the Sprocket; Replacing the Sprocket; Replacing;Cleaning Spark Arrester Screen

42

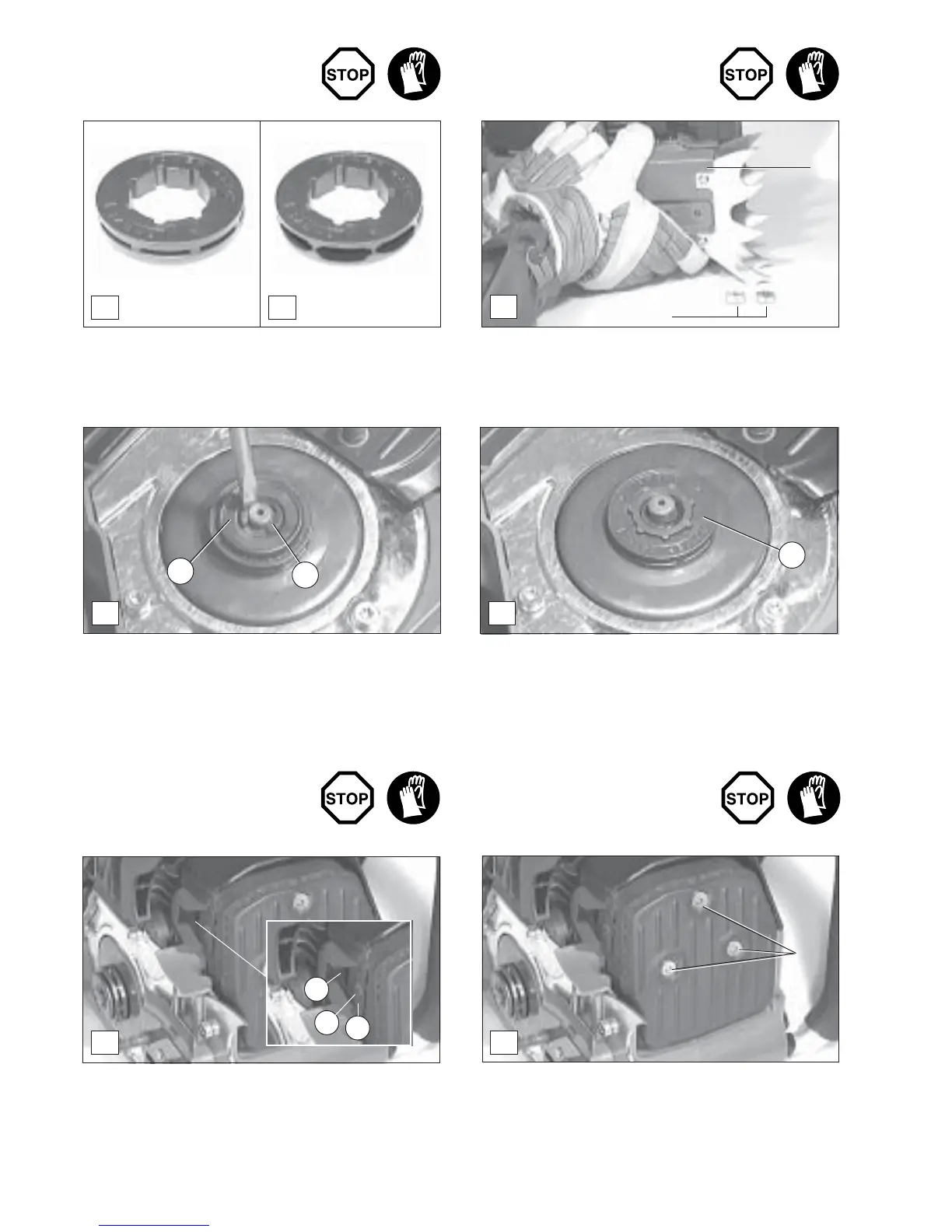

Replacing the sprocket
CAUTION:
Protective gloves must be put on.
Check the sprocket before mounting a new chain (A).
Worn out sprockets (more than 0,2 mm) (B) may damage
the new chain and must therefore be replaced.
- Loosen the fastening nuts (C/1).
- Pull off the sprocket guard (C/2).
- Regularly check the three fastening screws (G/9) for
tightness.
Checking the sprocket
A
B
F
G
C
2
8
6
7
The spark arrester screen should be checked and cleaned
regulary.
- Remove the screw (F/6), deflector plate (F/7) and arre-
ster screen (F/8).
Caution: Do not use sharp or pointed objects for screen
cleaning. Damaged or misformed screen wires may result.
1
9
D
E
- Take off the sprocket (E/5) from the clutch drum.
- Position the new, slightly oiled sprocket and remount all
parts in the reverse order.
- Use the universal wrench to remove the locking washer
(D/3).
CAUTION: The locking washer might jump out on removing.
- Remove the thrust washer (D/4) underneath it.
4
3
5
Replacing/cleaning the
spark arrester screen
Checking the
muffler screws
