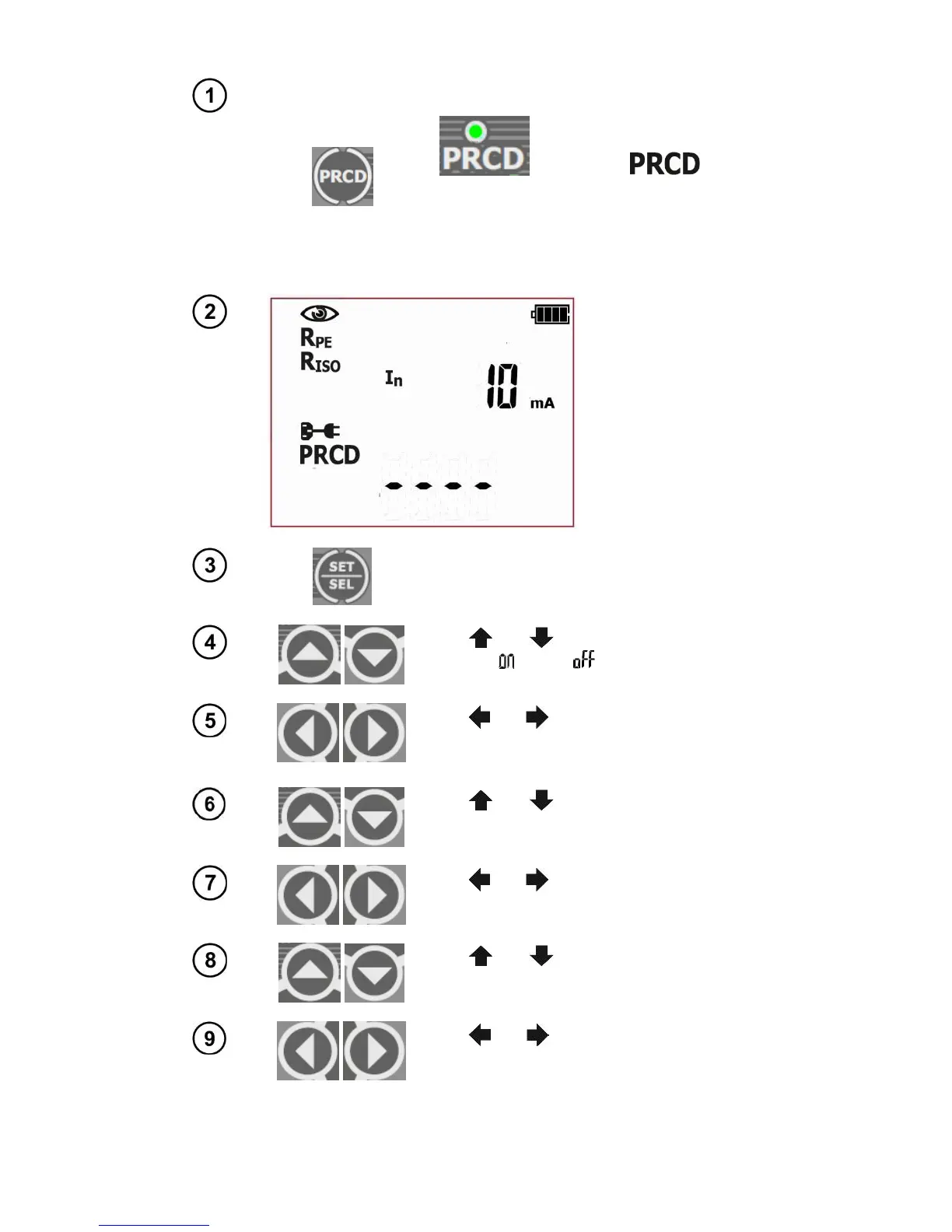

Press PRCD button to go to the testing
procedure for residual current device
( LED is on) – icon
will be displayed on screen, along with
nominal trip current I
n
: 10mA or 30mA
(after pressing PRCD button again). The
testing procedure for both current values is
the same.
The tester is in
PRCD trip time
measurement mode.
Press SET/SEL button to set the
measurement parameters.
Use and
to set the visual inspec-
tion
: on ( ) or off ( ).
Use and to go to the settings of test
current value for PE resistance measure-
ment.
Use and
to set the test current val-
ue for PE resistance measurement.
Use and to go to the limit settings
for PE resistance measurement.
Use and
to set the upper limit for
the PE conductor resistance.
Use and to go to the test time dura-
tion settings for PE conductor measure-
ment.
