OPERATING MANUAL PAT-1, PAT-2, PAT-2E, PAT-10 version 1.02

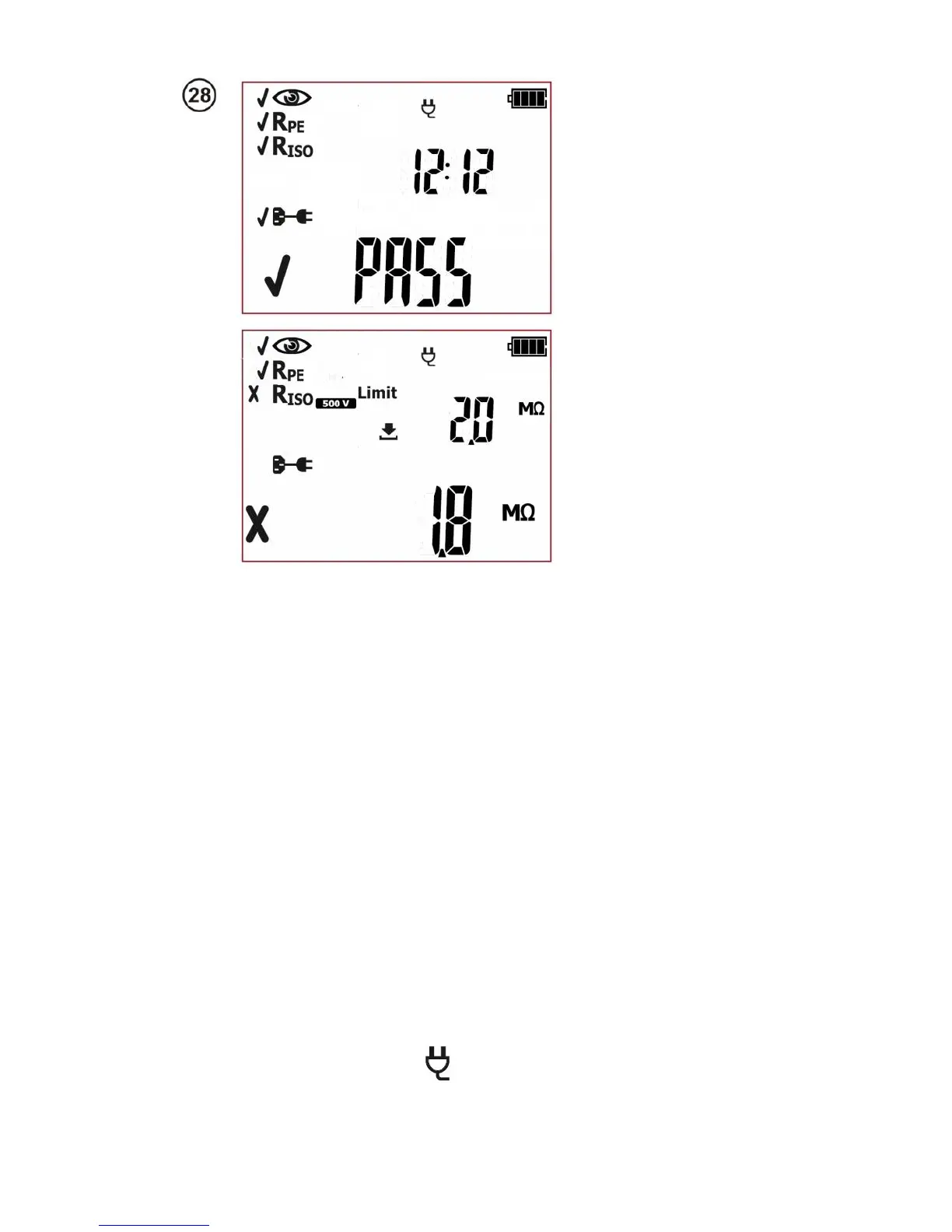

Positive test result for the
tested device. The result
of each single test of the
sequence is positive.
Green LEDs of PASS
indication are on. On the
right side of the screen
the current time is shown.
Negative test result for the
tested device. One of the
subsequent tests has
ended with negative result
- that result is displayed
on screen (screen on the
left, as an example, shows
failed insulation resistance
test). Red LEDs of FAIL
indication are on.
The result is displayed on screen until ESC button is pressed, another test is run
by pressing START/STOP button, measurement mode is changed, settings mode
is activated or the test result is stored in the memory.
Every socket in multi socket extension cords shall be tested.
If the power cord (extension cord) is equipped with portable residual current device (PRCD),
its parameters shall also be checked – see section 4.6 of this manual.
Notes:
- The tested device must be turned on.
- The conditions for testing PE and insulation resistance are the same as the ones for testing appli-
ances (see previous sections).
More messages displayed by the tester are described in section 2.1.2 of this manual.
4.6 Measurement of portable residual current device trip time –
PRCD (only PAT-2E and PAT-10)
This test is performed to evaluate the technical condition of a portable residual current device. PRCD
measurements require the tester to be powered from the mains. When it's not connected the test
can't be initiated, and the mains plug icon is flashing. In order to start the selected set of tests,
the mains power supply must be connected.
